เครื่องสลับสัญญาณ HDMI แบบ 4×4 4K Seamless Switching HDMI / VGA Matrix, with Video Wall and Multi-Viewer Feature, IR Routing, App, RS-232, IR & TCP/IP Control, 3rd party control drivers, Advanced EDID management , HDCP 1.4 compliant

Our MX44VW 4K HDMI / VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.

The MX44VW can perform as a 4×4 seamless matrix switcher, as a 2×2, 4×1 or 1×4 video wall solution, and as a quad multi-view presentation system.

Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.

Features:

• Features 3 operational modes:
  – 4×4 Seamless Switching Matrix (HDMI or VGA inputs)
  – Video Wall (2×2, 4×1 or 1×4 configuration)
  – Multi-Viewer mode with preset layouts
• Features 4 x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio instantaneous seamless video switching (Matrix and Video Wall modes)
• Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920×1200 @60Hz) and 480i-4K (3840×2160 @30Hz 4:4:4, 4096×2160 @24Hz 4:4:4)
• HDMI output resolution fixed to 1080p @60Hz
• Supports HDMI 2ch PCM audio only
• Discreet IR routing
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232, TCP/IP and the Blustream matrix App
• 3rd party control drivers available for all major home control brands
• Advanced EDID management
• HDCP 1.4 compliant

The post BLUSTREAM MX44VW 4×4 4K Seamless HDMI Matrix Switchers appeared first on Music Space.

เครื่องสลับสัญญาณ HDMI แบบ 4×2 พร้อมถอดสัญญาณเสียง BLUSTREAM CMX42AB Contractor 4×2 HDMI 2.0 4K HDCP 2.2 Matrix with Audio Breakout, EDID Management and IR Routing, Control via front panel, IR and RS-232

Our Contractor CMX42AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.

The CMX42AB supports HDMI 2.0 and HDCP 2.2, allowing distribution of four HDMI sources to two displays. This enables all sources to be viewed as required within a matrix configuration.

The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 4-Way matrix also includes audio breakout and EDID management.

Features:

• Features 4 x HDMI inputs which can be independently routed to 2 x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, IR and RS-232
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 2.2 compliant

The post BLUSTREAM CMX42AB Contractor 4×2 HDMI Matrix Switchers appeared first on Music Space.

เครื่องสลับสัญญาณ HDMI แบบ 4×4 พร้อมถอดสัญญาณเสียง BLUSTREAM CMX44CS 4×4 4K 18Gbps HDMI2.0 Matrix with Audio Breakout, Smart Scaling, EDID Management and IR Routing, HDCP2.2, 1U Design for 19″ rack mount integration

Our Contractor CMX44CS 4K HDMI Matrix offers unprecedented performance and value for the custom installation market. The CMX44CS supports HDMI2.0 with HDCP2.2, allowing distribution of four HDMI sources to four displays.

This enables all sources to be viewed as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4 with automatic video down conversion.

The 4-way matrix also includes audio breakout and advanced EDID management.

Features:

• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
• Supports HDMI2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Control via front panel, IR, RS-232, TCP/IP and Web GUI
• IR routing
• Supplied with Blustream 5V IR receivers and emitters
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP2.2 compliant
• 1U Design for 19″ rack mount integration – Mounting kit included

The post BLUSTREAM CMX44CS Contractor 4×4 HDMI Matrix Switchers appeared first on Music Space.

เครื่องสลับสัญญาณ HDMI แบบ 8×8 พร้อมถอดสัญญาณเสียง BLUSTREAM CMX88AB 8×8 HDMI 2.0 4K HDCP 2.2 Matrix with Audio Breakout, EDID Management and Web GUI, 3rd Party drivers available for all major home control brands

Our Contractor CMX88AB 4K HDMI Matrix offers unprecedented performance and value for the custom installation market.

The CMX88AB supports HDMI 2.0 with HDCP 2.2, allowing distribution of eight HDMI sources to eight displays. This enables all sources to be viewed as required within a matrix configuration.

The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4. The 8-Way matrix also includes audio breakout, EDID management and a web browser interface module for control and configuration of the matrix.

Features:

• Features 8 x HDMI inputs which can be independently routed to 8 x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Independent video down conversion on all HDMI outputs allowing for displays only capable of supporting lower 4K video resolutions (4K 60Hz 4:2:0) to receive native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
• Web interface module for control and configuration of matrix
• Control via front panel, IR, RS-232 and TCP/IP
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 2.2 compliant

The post BLUSTREAM CMX88AB Contractor 8×8 HDMI Matrix Switchers appeared first on Music Space.

เครื่องเลือกสัญญาณแบบ Multi-format เข้า 11 ออก 2 รองรับสัญญาณ 4K BLUSTREAM MFP112, Switcher can function in 2 modes Splitter mode, Matrix Switcher mode, Scaled video output resolutions include 720p, 1080P, 1280×1024, 1024×768, 1360×768, 1440,900, 1680×1050 , HDCP 1.4 compliant

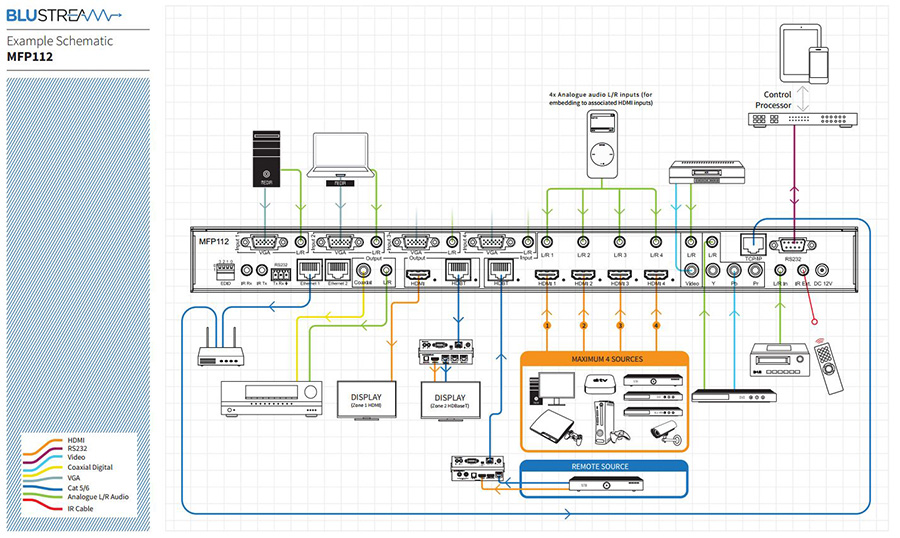

BLUSTREAM MFP112 is a multi-format presentation switcher within-built video scaling, audio embedding, de-embedding, EDID management and HDBaseT input and output.

The MFP112 works in 2 modes, first as a 11 input dual output switcher, alternatively each output can work independently with HDMI output 1 routing the 1x HDBaseT + 4x HDMI inputs only and output 2 switching all 11 video + audio inputs.

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Features:

• Switcher can function in 2 modes:-
  -Splitter mode – Both HDMI output 1 & HDBaseT output 2 display the same selected input.
  -Matrix Switcher mode – HDMI inputs are independently switchable to HDMI output 1 & HDBaseT output 2. HDMI output 1 has access to HDBaseT input + HDMI inputs 1-4 ONLY (HDMI signal pass-through including 4K resolution), whilst HDBaseT output 2 has access to all HDMI, HDBaseT and analogue video inputs with associated audio.
• HDBaseT output (output 2) for distribution of video sources up to 100m (4K up to 70m) with bi-directional IR, RS-232, LAN serving and EDID management.
• HDBaseT input for integration of remote HDMI sources up to 100m distance (4K up to 70m) with bi-directional IR and LAN serving
• Built-in video scaling, both up-scaling (maximum of 1080p) and down-scaling capabilities (including 4K to lower resolutions).
• Video inputs support all industry standard video resolutions including VGA-WUXGA and 480i-4K.
• Scaled video output resolutions include 720p, 1080P, 1280×1024, 1024×768, 1360×768, 1440,900, 1680×1050
• Audio embedding – independent analogue L/R audio input can be embedded to HDMI/HDBaseT outputs + analogue L/R audio and Coaxial digital outputs concurrently (feature available on HDMI/HDBaseT outputs 1+2 in Splitter mode and HDBaseT output 2 only in Matrix Switcher mode).
• HDMI audio breakout to analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 when in Matrix Switcher mode)
• Volume control of HDMI, line-level analogue L/R audio and Coaxial digital outputs
• PoH to compatible Blustream Transmitters & Receivers (local power required when using HEX100ARC-RX)
• Supports all known HDMI audio formats on HDMI pass-through, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
• Front panel display for status feedback, Control via front panel, IR, RS-232 and TCP/IP
• 3rd Party drivers available for all major home control brands, Advanced EDID management, HDCP 1.4 compliant

The post BLUSTREAM MFP112 Multi-Format Presentation Switch appeared first on Music Space.

เครื่องเลือกสัญญาณแบบ Multi-format เข้า 7 ออก 2 รองรับสัญญาณ 4K BLUSTREAM MFP72, Switcher can function in 2 modes Splitter mode, Switcher mode, Scaled video output resolutions: 720p, 1080p, 1280×1024, 1024×768, 1360×768, 1440×900, 1680×1050, HDCP 1.4 compliant

BLUSTREAM MFP72 is a multi-format presentation switcher with in-built video scaling, audio embedding / de-embedding, and advanced EDID management.

The MFP72 works in 2 modes, first as a 7 input dual output switcher (7:1×2), alternatively each output can work independently with Output 1 routing the 4x HDMI inputs only (4:1 up to 4K) and Output 2 switching all 7 video/audio inputs (7:1 up to 1080p).

With control of the switcher using the front-panel push buttons, IR remote control or RS-232 interface it is an ideal solution for commercial installations.

Features:

• Switcher can function in 2 modes:
  -Splitter mode – both HDMI outputs display the same image from any video input
  -Switcher mode – HDMI output 1 and 2 are independently controlled
• HDMI output 1 can view only HDMI inputs 1-4 (up to resolutions of 4K)
• HDMI output 2 can view all HDMI and analogue video inputs with associated audio (up to 1080p resolution)
• Built-in video scaling, both up-scaling and down-scaling capabilities
• Video inputs support industry standard video resolutions including VGA-WUXGA and 480i-4K (including 800×600 @60 & 75Hz)
• Scaled video output resolutions: 720p, 1080p, 1280×1024, 1024×768, 1360×768, 1440×900, 1680×1050
• Audio embedding – independent analogue L/R audio input can be embedded to HDMI outputs + Analogue L/R audio and Coaxial digital outputs concurrently (feature available for HDMI output 1 + 2 in ‘Split mode’, ‘Switch mode’ = HDMI output 2 only).
• HDMI audio breakout to Analogue L/R audio and Coaxial digital outputs concurrently (linked to output 2 in ‘Switch mode’)
• Volume control – controls volume output of HDMI, Analogue L/R audio and Coaxial digital outputs
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master audio transmission
• Supplied with Blustream IR receiver and IR link cable
• Control via front panel, IR and RS-232
• 3rd Party drivers available for all major home control brands, HDCP 1.4 compliant

The post BLUSTREAM MFP72 Multi-Format Presentation Switch appeared first on Music Space.

เครื่องสลับและแปลงสัญญาณ HDMI เป็น HDBaseT แบบ 4×4 รองรับสัญญาณ 4K BLUSTREAM HMXL44KIT-V2, 70m (4K up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDMI + HDBaseT Outputs, Audio Breakout with pre-amp variable line-level control, RS-232 & TCP/IP Control, HDCP 2.2 compliant, Web GUI, Includes 4x HDBaseT receivers

Our Essential 4×4 HDBaseT Matrix offers unprecedented performance and value for the custom installation market. The HMXL44-KIT-V2 is a 4K HDCP 2.2 matrix package, delivering  HDMI, Bi-directional IR and PoH (Power over HDBaseT) up to lengths of 70m over a single CAT cable.

The matrix also provides advanced features including Audio breakout with pre-amp variable line-level control, simultaneous HDBaseT/HDMI outputs, RS-232 pass through to enable 3rd party control of displays and a web browser interface module for control and configuration of the matrix. The HMXL44-KIT-V2 is supplied with 4 x HEX70ED Receivers.

Features:

• Advanced HDBaseT technology offering uncompressed video and audio with zero latency
• Features 4 x HDMI inputs which can be independently routed to 4x HDBaseT/HDMI outputs
• Simultaneous HDBaseT and HDMI outputs to allow connection to dual displays per zone
• HDMI audio breakout to associated Digital Coax, and analogue L/R audio outputs with pre-amp line level volume control
• Extends HDMI up to a distance of 70m over single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports 3D signal display
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Web interface module for control and configuration of Matrix (instructions available in Drivers & Protocols section)
• Bi-directional IR from all input and output locations
• Bi-directional RS-232 from all input and output locations
• Supplied with Blustream IR receivers and emitters
• Control via front panel , IR, RS-232 and TCP/IP
• Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
• 3rd Party drivers available for all major home control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Matrix kit is supplied with 4 x HEX70ED-RX HDBaseT receivers
• 1U Design for 19″ rack mount integration – mounting kit included

The post BLUSTREAM HMXL44-KIT-V2 4×4 HDBase Matrix Kit appeared first on Music Space.
