ชุดควบคุมแบบไร้สาย TOA TS-900 CE Central Unit

ควบคุมการทำงานทั้งระบบทั้งกับเครื่องส่งและเครื่องรับสัญญาณ ในระบบไร้สายซึ่งสะดวกในการติดตั้งและเคลื่อนย้าย สามารถเข้าตู้ rack มาตรฐาน 19″ ด้วย mounting bracket ซึ่งเป็นอุปกรณ์เสริม

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿44,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

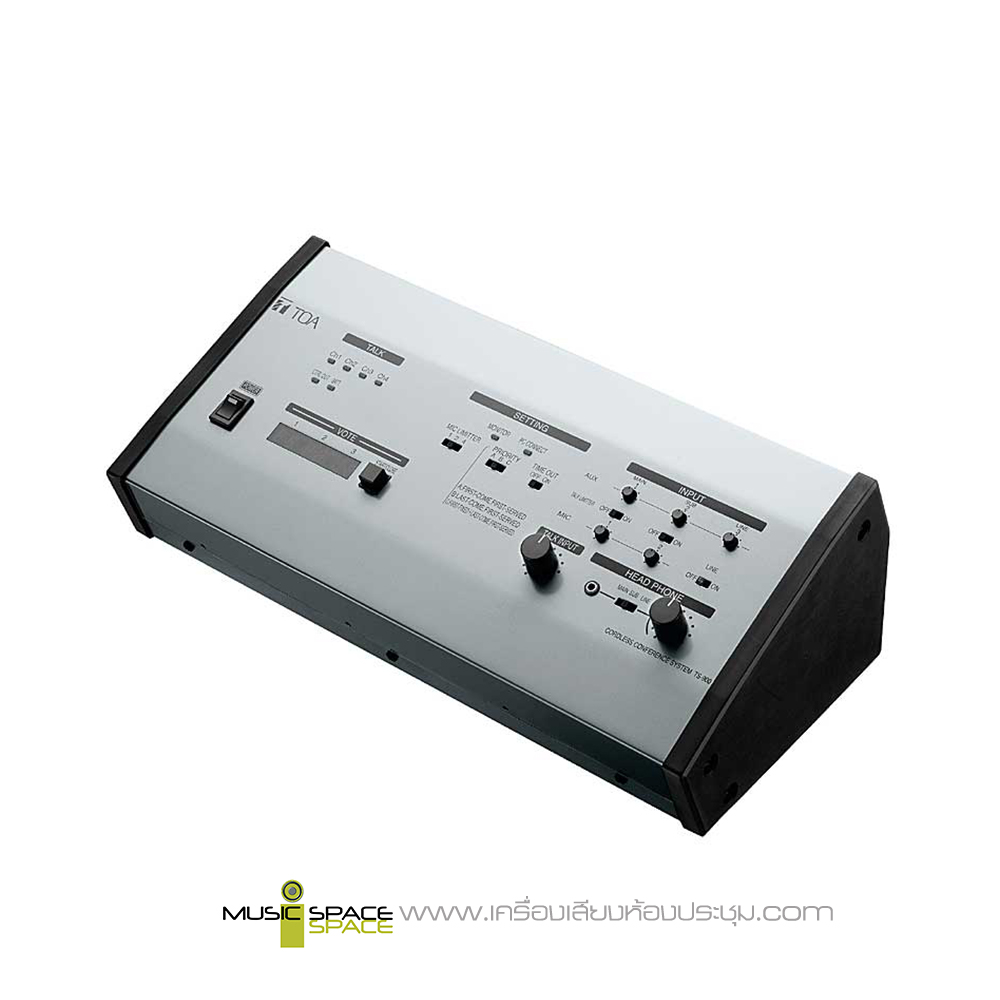

TOA TS900 CE Central Unit

ควบคุมการทำงานทั้งระบบทั้งกับเครื่องส่งและเครื่องรับสัญญาณ ในระบบไร้สายซึ่งสะดวกในการติดตั้งและเคลื่อนย้าย สามารถเข้าตู้ rack มาตรฐาน 19″ ด้วย mounting bracket ซึ่งเป็นอุปกรณ์เสริม

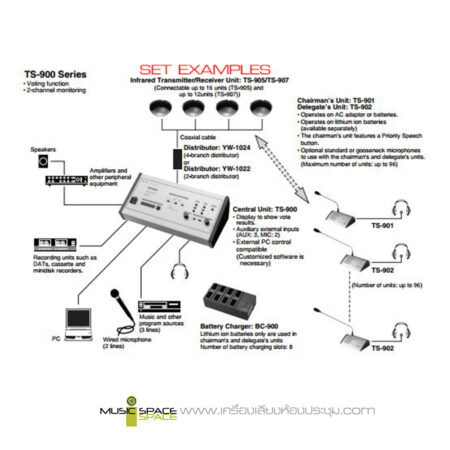

The TS-900 is a Central unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed based on a free layout. Connecting the TS-900 to the Transmitter/Receiver units permits control of the conference units.

It features control function from a PC (The control software is not attached.), installation confirmation function that confirms the connection status for the Transmitter/Receiver units and installation status for the conference units, and voting function that computes and displays the voting result.

Since two speech outputs are provided (Main and Sub channels), it is ideal for use in simultaneous interpreting conference. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size)

คุณลักษณะ:

  • ระบบไร้สายซึ่งสะดวกในการติดตั้งและเคลื่อนย้าย
  • ควบคุมการทำงานของระบบเมื่อพ่วงกับเครื่องส่งและเครื่องรับสัญญาณ
  • สามารถควบคุมระบบจากเครื่องคอมพิวเตอร์ ยืนยันการติดตั้งซึ่งสามารถตรวจสอบสถานะ การทำงานของเครื่องส่งและเครื่องรับสัญญาณ และชุดประชุม รวมถึงระบบการนับคะแนน ซึ่งจะประมวลและแสดงผลการลงคะแนน นอกจากนี้ ยังสามารถใช้เป็นระบบแปลภาษาได้ถึง 2 ภาษา
  • สามารถเข้าตู้ rack มาตรฐาน 19″ ด้วย mounting bracket ซึ่งเป็นอุปกรณ์เสริม

Specifications

Power Source 100 – 240 V AC, 50/60 Hz (supplied from AC adapter (accessory))
Power Consumption 72 W
Input MIC 1 (Base Language): -60 dB*, 600 Ω, unbalanced, phone jack
MIC 2 (Translation Language): -60 dB*, 600 Ω, unbalanced, phone jack
AUX 1 (Base Language): -20 dB*, 10 kΩ, unbalanced, phone jack
AUX 2 (Translation Language): -20 dB*, 10 kΩ, unbalanced, phone jack
AUX 3 (Base and Translation Language): -20 dB*, 10 kΩ, unbalanced,
phone jack
Output LINE: -20 dB*, 10 kΩ, unbalanced, phone jack
REC: -20 dB*, 10 kΩ, unbalanced, phone jack, RCA pin jack
HEADPHONE: Mini jack
Number of Connectable Chairman/Delegate Units 96 units
Number of Connectable Infrared Transmitter/Receiver Units 4 units (up to 16 units by using four Distributors)
Infrared Transmitter/Receiver I/O Terminal 4 BNC jacks
External Control Terminal D-sub connector (9 P, male)
LED Indicator Voting result indicators 1 – 3 (7-segment LED, double-digit number),
Audio signal receiving indicators 1 – 4 CH, Data signal receiving indicator,
External control priority indicator, External control communication indicator,
Power indicator, Battery indicator (flashes when a Chairman/Delegate unit’s
battery nears complete discharge)
Function Switch Simultaneous speaker No. setting switch: 1/2/4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch: A/B/C
(A: First-in-first-out priority, B: Last-in-first-out priority, C: Fixed for the first unit, and last-in-first-out for the subsequent units)
Microphone Mix/Cut Switch (for the Base Language) MIC/CUT (Mix): Chairman/Delegate units + MIC 1 + AUX 1 + AUX 3
Microphone Mix/Cut Switch (for the Translation Language) MIC/CUT (Mix): Chairman/Delegate units + MIC 2 + AUX 2 + AUX 3
AUX 3 Mixing Select Switch MIC/CUT (Mix): AUX 3 input is relayed to the line output.
(Cut): AUX 3 input is not relayed to the line output.
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Surface-treated steel plate, gray metallic, paint, semi-gloss
Weight 2.8 kg (6.17 lb)
Accessory AC adapter (Cord length: 1.8 m (5.91 ft) DC cord,
and 2 m (6.56 ft) detachable AC cord)…1
Option Rack mounting bracket: MB-TS900

Downloads

ดาวน์โหลด Brochure TOA TS900
