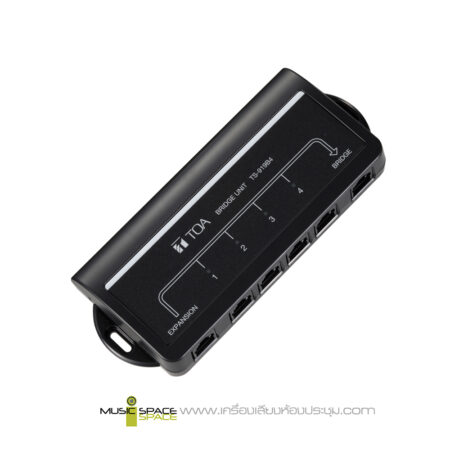

TOA TS919B4 Bridge Unit

TS-919B4 is a Bridge unit for connecting four Wired Conference units of the TS-811, TS-911, TS-812, or TS-912. with a Category 5 cable

฿7,630.00 ฿6,800.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

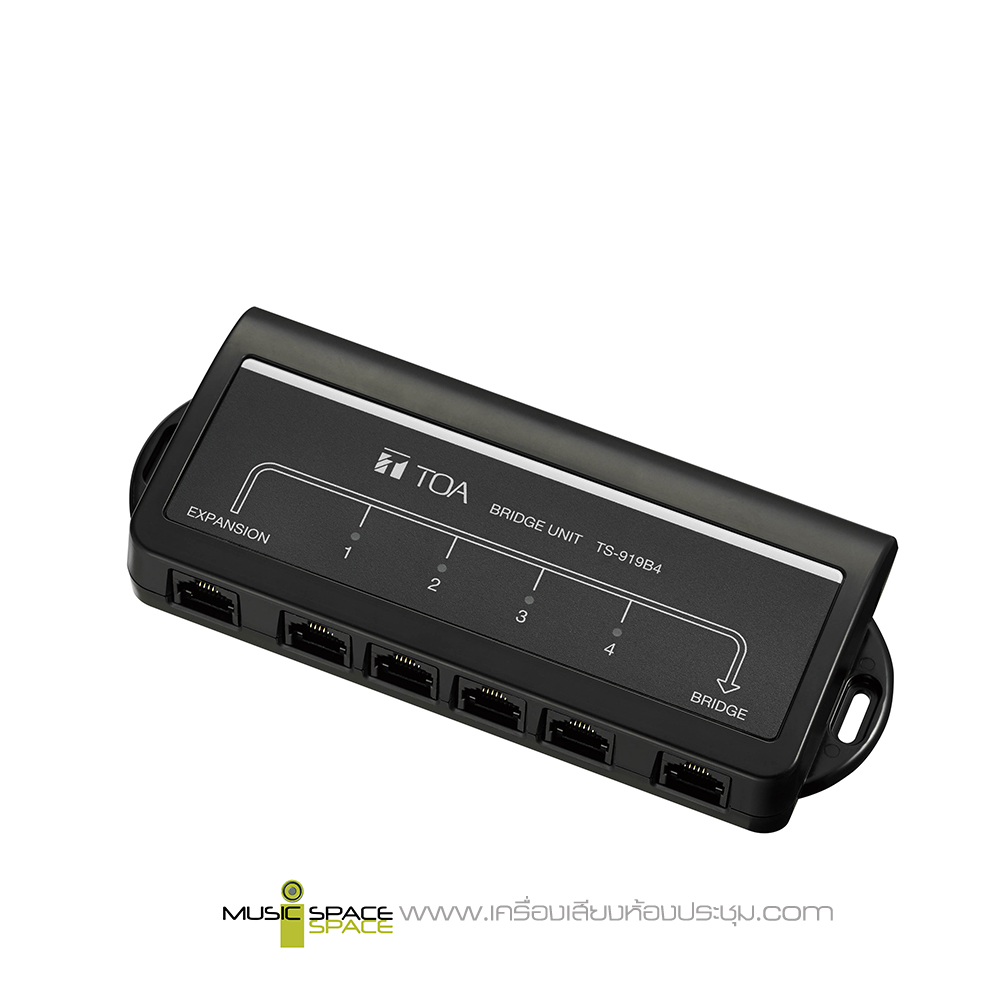

TOA TS-919B4 Bridge Unit

The TS-919B4 is a Bridge unit for connecting four Wired Conference units of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable

Specifications:

Power Source 24 V DC (supplied from the TS-918 Expansion Unit (option))
Current Consumption Max. 26 mA
Branching loss Upstream: 17.5 dB
Downstream: 16.5 dB
Insertion loss Upstream: 3 dB
Downstream: 2 dB
Connection Terminal Communication cable connection terminal: RJ45 connector × 2
Conference unit connection terminal: RJ45 connector × 4
LED Indicator Connection status indicator × 4
Number of Connectable Chairman/Delegate Units 4 units
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish ABS resin, black
Dimensions 176.2 (W) × 75 (H) × 29.8 (D) mm (6.94″ × 2.95″ × 1.17″)
Weight 160 g (0.35 lb)
