ตัวแยกสัญญาณ TOA YW-1022 Antenna Distributor

TOA YW-1022 distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz), Power passing type permits easy power supply, BNC connectors

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿6,200.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

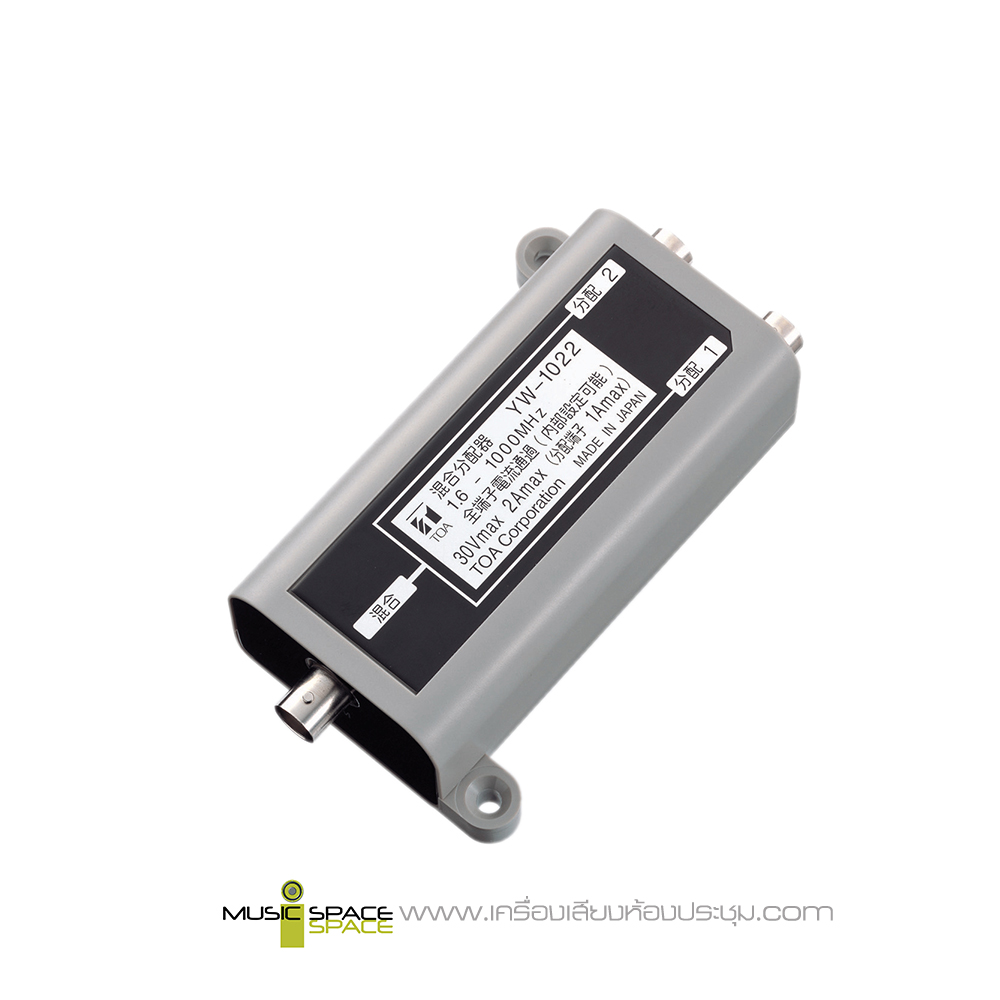

TOA YW1022 Antenna Distributor

อุปกรณ์ตัวแยกสัญญาณ TOA YW-1022 distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz), Power passing type permits easy power supply, BNC connectors

The YW-1022 is a distributor that can work in the frequency range of 1.6 to 1000 MHz (except 50 to 70 MHz). Power passing type permits easy power supply.

Features:

  • YW-1022 for 2-branch distribution and YW-1024 for 4-branch distribution
  • Usable frequency range of 1.6 to 1000 MHz
  • Power passing type (changeable to Power off type) for easy power supply
  • BNC connectors
Category: Tag:

Specifications

Frequency Range 1.6 – 1000 MHz (excluding 50 – 70 MHz)
Distribution Loss 4.5 dB ±3 dB (between the Mixing and each Distribution terminals)
Input/Output Impedance 75 Ω
Coaxial Connector Mixing terminal: BNC jack, power passing type (30 V DC or less, 2 A or less)
Distribution 1 and 2 terminals: BNC jack, power passing type
(30 V DC or less, 1 A or less)
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish ABS resin, gray
Dimensions 75 (W) × 122 (H) × 34 (D) mm (2.95″ × 4.8″ × 1.34″)
Weight 105 g (0.23 lb)
Accessory Unit fixing wood screw (4.1 × 25) …2

Downloads

ดาวน์โหลด Manual TOA YW1022 Antenna Distributor
