Product Description

AKG CS3BU Conference Base Unit

เครื่องควบคุมและจ่ายไฟระบบไมค์ประชุม AKG CS3-BU for discussion systems of up to 60 stations per base unit Connects to all PA, recording,ext. audio and camera

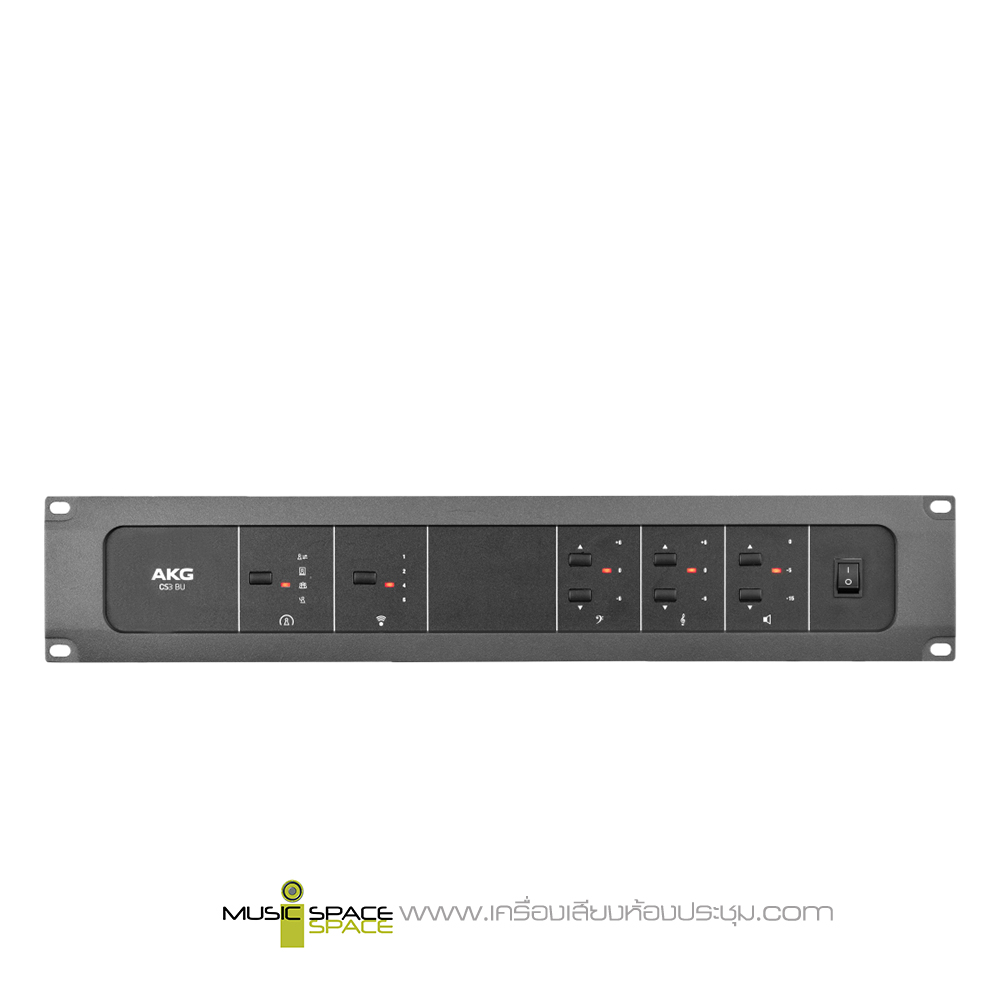

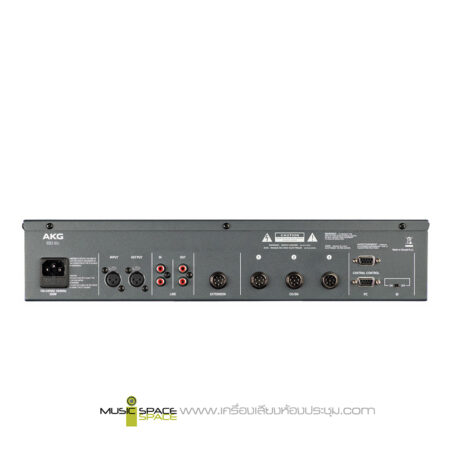

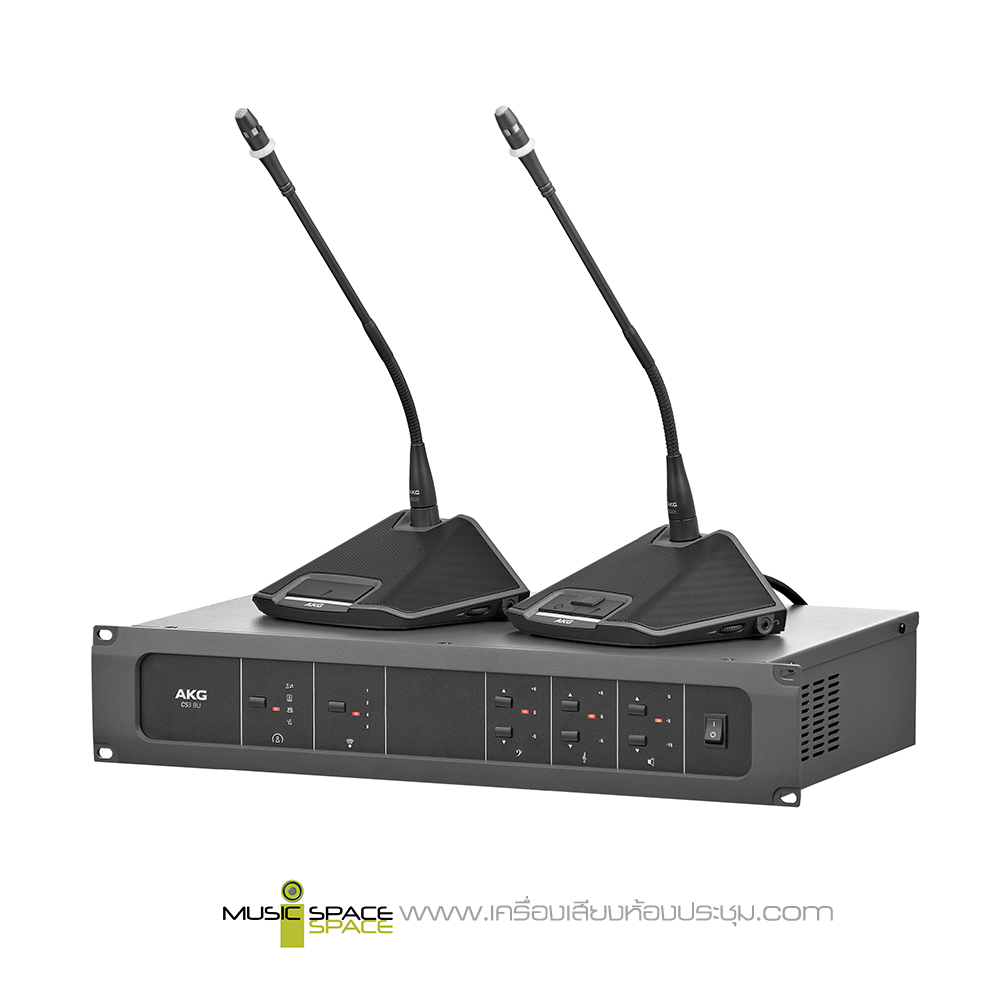

The AKG CS3 BU Conference Base Unit is the base unit for the CS3 conference system which is designed for fixed and mobile conference applications, and provides all the necessary inputs and outputs to manage a conference for up to 60 microphone stations. It is the interface to all audio devices in a meeting room and offers a RS-232 interface to connect an optional camera control system (sold separately).

The CS3 BU Base Unit can even work in a stand-alone mode in 4 selectable operating modes, namely, Override, Normal, Free, and Request, thereby offering maximum flexibility in conference management. With the NOM limitation function, the maximum number of active stations can be programmed to 1, 2, 4, or 6 simultaneous open microphones. Adjustable bass, treble, and master volume are also featured.

If necessary, two CS3 BU units can be combined to control a large conference system with up to 120 microphone stations.

Features:

  • All in one conference controller
  • Four selectable operating modes
  • Connects to all relevant devices
  • Supports up to 60 microphone stations
  • Plug and Play
  • Easy expandable and adaptable
Share This:
Category: .  Tag: .

Specifications

Power Supply SMPS 100 to 240V (50 Hz / 60 Hz) 3 A
Consumption Static: 13 W
Nominal Power: 320 W
Output Power ≤ 90 W / 24 V each way
Mode Balanced / Unbalanced
Frequency Response 50 Hz to 20 kHz
S/N Ratio >80 dB
THD Distortion: Distortion at Overload:
Crosstalk Attenuation >50 dB (1 kHz)
Operating Temperature 32 to 104°F (0 to 40°C) at 95% relative humidity (non-condensing)
Dimensions (L x W x H) 18.9 x 11.0 x 3.4″ (482.0 x 281.0 x 88.4 mm)
Weight 11.4 lb (5.2 kg)
Share This:

Downloads

ดาวน์โหลด Manual AKG CS3-BU

ดาวน์โหลด DataSheet AKG CS3-BU
