AKG CS3CU 30 Chairman Unit with 30cm Mic

ไมค์โครโฟนชุดประธานแบบก้านสั้นมีความยาวของก้านไมโครโฟน 30cm พร้อมลำโพงในตัว with “Priority” and “Next in line” buttons, สามารถเปลี่ยนไมโครโฟนได้, มีลำโพงในตัว, มีช่องเสียบหูฟังพร้อมปุ่มปรับระดับเสียง

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿20,600.00 ฿20,500.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

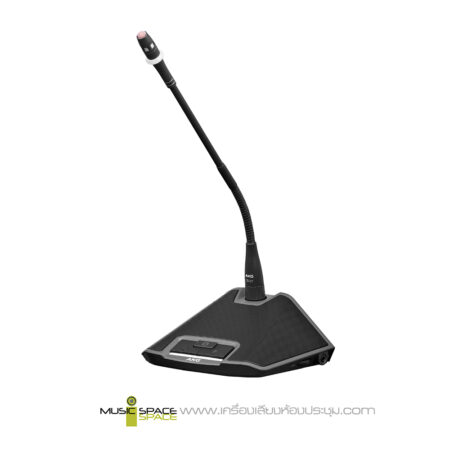

AKG CS3CU 30 Chairman Unit

ไมค์โครโฟนชุดประธานแบบก้านสั้นมีความยาวของก้านไมโครโฟน 30cm พร้อมลำโพงในตัว with “Priority” and “Next in line” buttons, สามารถเปลี่ยนไมโครโฟนได้, มีลำโพงในตัว, มีช่องเสียบหูฟังพร้อมปุ่มปรับระดับเสียง

The AKG CS3 CU Chairman Microphone Station with 30cm Gooseneck is designed for fixed and mobile conference applications. The CS3 CU chairman unit is a basic microphone unit for the CS3 system with 2 operating modes. In Priority Call mode, the user can manually mute all connected delegate stations. In the Next in Line mode, the CS3 CU automatically activates the next delegate station in the waiting list. The station offers a Speak Button, a Priority Button, an Approve Button, a built-in speaker, and 2 x 3.5mm stereo jacks to connect the headphones for up to 2 delegates, as well as a connector to other microphone units.

The CS3 CU Chairman Microphone Station comes with a robust interface connector, which makes it easy to interchange the station’s microphone. The included detachable microphone features the CS321 cardioid condenser capsule on a 30cm long gooseneck. A 2m long Plug & Play connector cable is also included.

The CS3 CU can approve the speaking request from the CS3 DU unit (sold separately). The maximum number of active microphone, conference modes, and connection position of the CS3 CU unit are not limited. Moreover, it also has the privilege of muting all other delegate units in the CS3 system.

Features:

  • Capable of driving 30 microphone units for a single channel
  • Adopts specific 8-pin high-quality DIN connector to ensure the secure connection and stable system operation
  • Packaged with 2m connecting cable
  • Comes with a 2W built-in speaker
  • Comes with 2 ports of 3.5mm headphone jacks and a master volume adjustment knob
  • Powered by CS3 BU (sold separately)
  • Automatically mutes the built-in speaker when the microphone is activated for speaking to avoid feedback
  • Connects in Bus Connection mode, which is simple and convenient
  • Provides approve function to activate the CS3 DU microphone after sending speaker request
  • o limitation on the connection number of microphone units
  • Provides priority function for whole control of the discussion
  • No limitation on the connection position of the CS3 CU
Share This:

Specifications

Power Supply 24 VDC supplied by the Base Unit
Power Consumption 3 W
Loudspeaker Power 2 W
Signal / Noise >80 dB
Frequency Response 50 Hz to 20 kHz
Intercom Intercommunication: DIN 8‐pole
Headphone Output 9 dBu, 8 to 32 Ω, 3.5 mm
Crosstalk Attenuation: >80 dB
THD
Operating Temperature 32 to 104°F (0 to 40°C) at 95% relative humidity (non-condensing)
Dimensions (L x W x H) 6.6 x 5.6 x 2.4″ (170.0 x 143.0 x 63.0 mm)
Weight 2.2 lb (1.0 kg)
Share This:

Downloads

ดาวน์โหลด Manual AKG CS3-BU 30

ดาวน์โหลด DataSheet AKG CS3-BU 30
