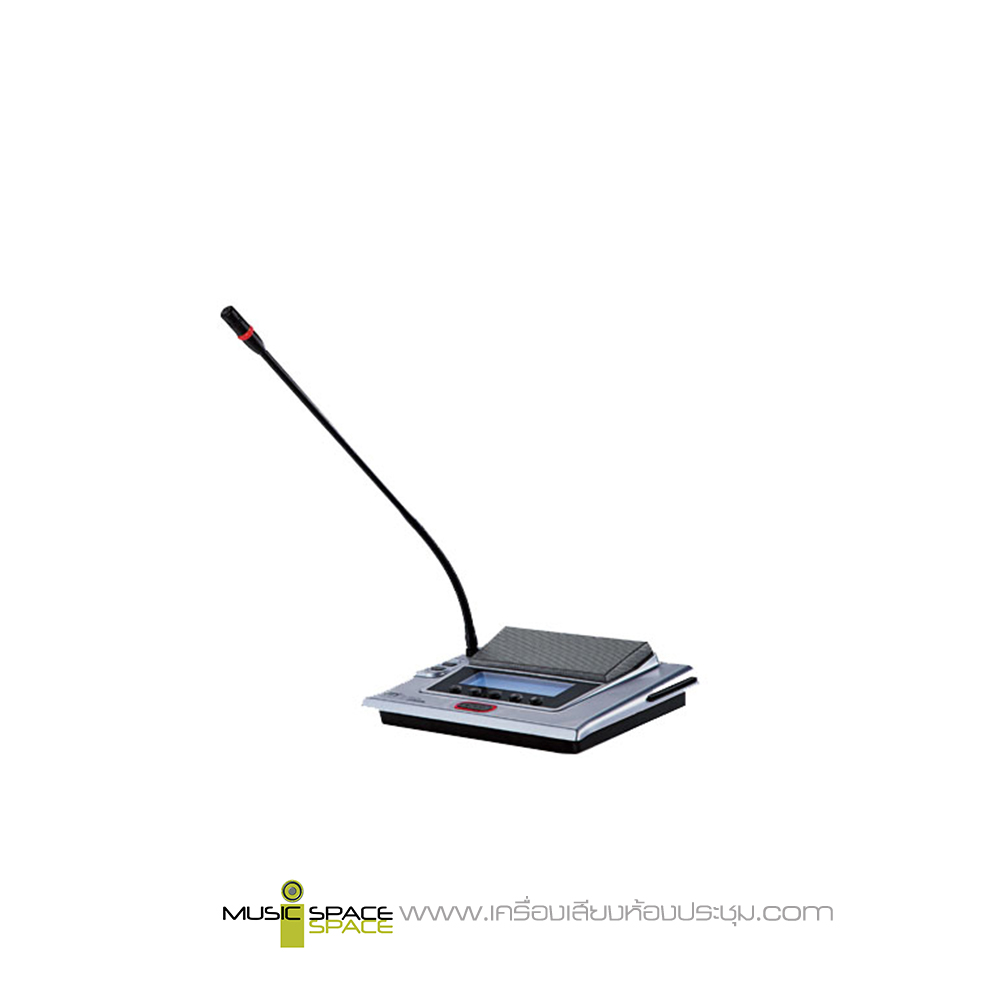

JTS CS120CH Chairman Conference Unit

ชุดไมค์ประชุมสำหรับประธานพร้อม Voting function  JTS CS120CH, Built-in Hi-Fi speaker, Priority button, Cardioid condenser microphone, Headphone volume control, Microphone on/off LED light ring

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿15,800.00 ฿14,220.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

JTS CS120CH Chairman Conference Unit

ชุดไมค์ประชุมสำหรับประธานพร้อม Voting function  JTS CS120CH, Built-in Hi-Fi speaker, Priority button, Cardioid condenser microphone, Headphone volume control, Microphone on/off LED light ring

The CS-120CH has extra functions besides those CS-120DU has. There is a priority key which can either mute or turn off all delegate units, or cancel all applying. The chairman unit has the right to accept or refuse applying.

Voting function can be initiated only the chairman unit. The timing is also controlled by the chairman. Voting result shown on all units will be clear. In one installation only one CS-120CH chairman unit can be connected.

Features:

  • Priority button
  • Built-in Hi-Fi speaker
  • Headphone volume control
  • Multi-function buttons and indicators (5 buttons)
  • LCD Display directory and messages and change languages
Share This:

Specifications

Model No CS-120CH/CS-120DU
Output frequency response 40-16000Hz
Earphone load >16 Ω
Earphone volume 10 mV
Earphone output φ 3.5mm stereo jack
Max. power consumption 1.65W (with 256 x 64LCD)
1W (without 256 x 64 LCD)
connection 7P-DIN dedicated cable with buckle
Microphone Type Uni-directional electret condenser microphone
Sensitivity -46 dBV/Pa
Frequency response 80-18000Hz
Input impedance 2kΩ
Directivity 0°/180° >20 dB(1kHz)
Equivalent noise 25 dBA (SPL)
Maximum sound pressure level 125 dB (THD<3%)
Share This:

Downloads

ดาวน์โหลด Documents JTS CS120CH
