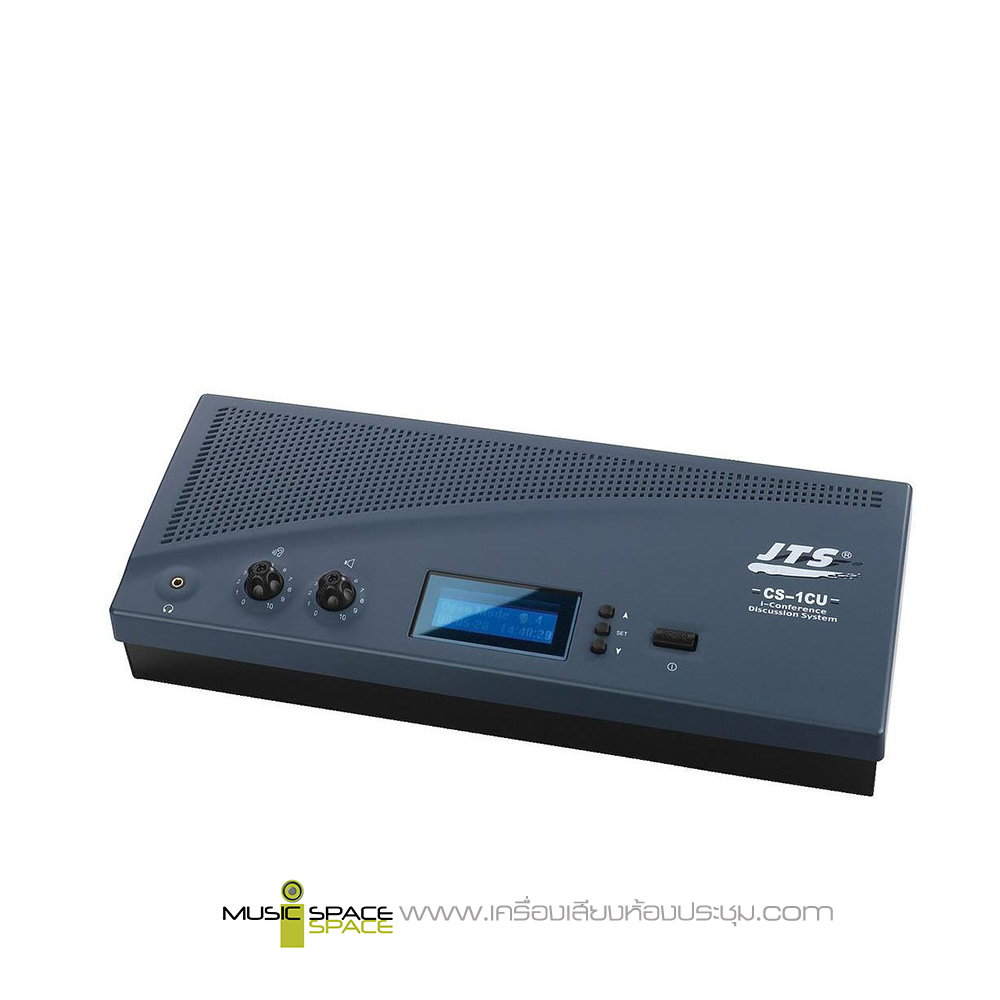

JTS CS1CU Control and Power Supply Unit

เครื่องควบคุมและจ่ายไฟระบบไมค์ประชุม JTS CS-1CU , Built-in speaker, For setting up a system with up to 50 microphone stations (2 x 25), Headphone connection, Keypad lock, Display of date/time, Stopwatch, Test function for connected microphone stations

ราคาไม่รวมภาษีมูลค่าเพิ่ม….

฿13,500.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: . Tag: .

Product Description

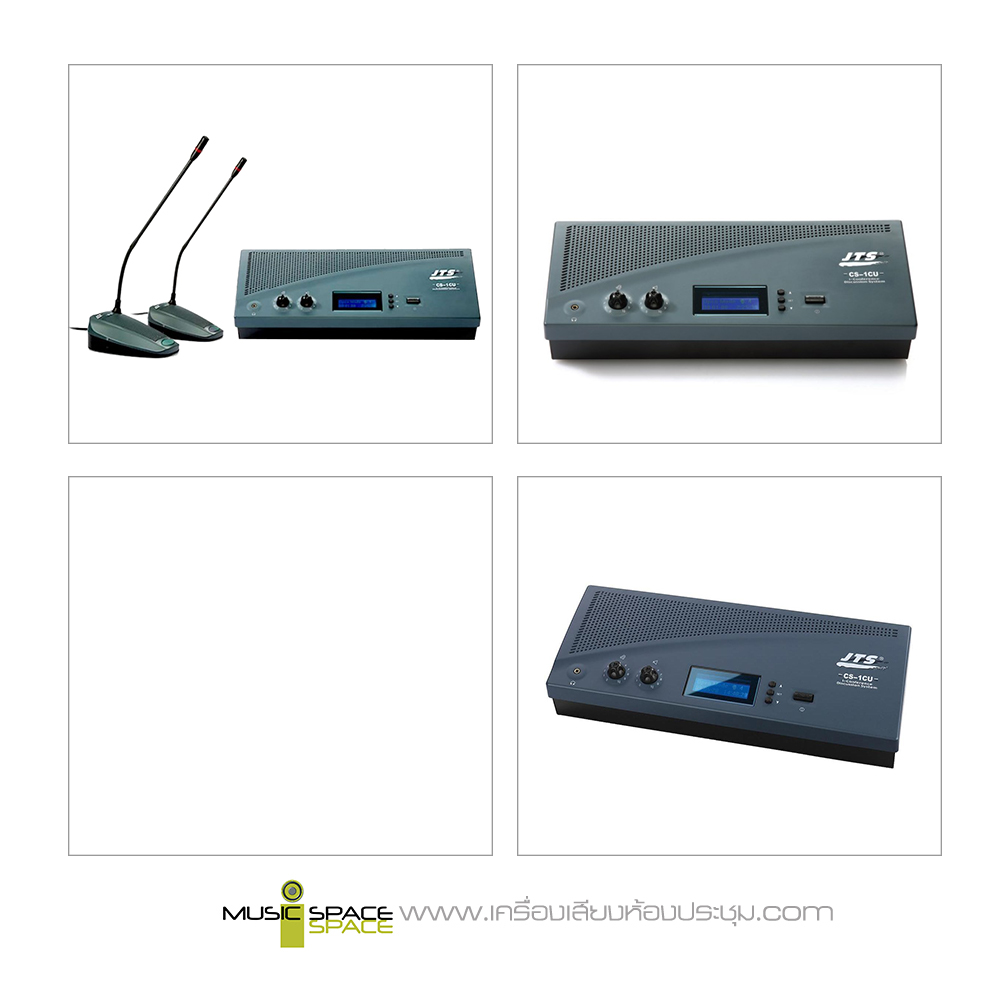

JTS CS1CU Control and Power Supply Unit

เครื่องควบคุมและจ่ายไฟระบบไมค์ประชุม JTS CS-1CU , Built-in speaker, For setting up a system with up to 50 microphone stations (2 x 25), Headphone connection, Keypad lock, Display of date/time, Stopwatch, Test function for connected microphone stations

The control unit JTS CS1CU is the center of the discussion system which controls the microphones of the chairman and delegate units as well as connects to other audio input and output. It also supplies the power for the CU itself, and up to 50 chairman and delegate units

Connection facilities for optional devices, e.g. external microphone, telephone coupler, signal processing units (e.g. equalizer), recorders, amplifiers, audio line sources

Features:

  • For setting up a system with up to 50 microphone stations (2 x 25)
  • Power supply for microphone stations
  • Built-in speaker
  • Headphone connection
  • Keypad lock, Display of date/time, Stopwatch
  • Test function for connected microphone stations
Share This:
Category: .  Tag: .

Specifications

Voltage VAC100-240~, 50/60Hz
Current consumption MAX 0.9A(100VAC) / 0.3A(240VAC)
DC supply to contribution units ±15V
Line, telephone coupler and insertion in/outputs (unbalanced)
Input sensitivity -14dBV/+11dBV (nominal/maximum)
Input impedance 33KΩ
Output level -14dBV/+11dBV (nominal/maximum)
Output Impedance 500Ω
Recorder in/output (unbalanced)
Input sensitivity -20dBV/+5dBV (nominal/maximum)
Input impedance 47KΩ (for L & R channel)
Adjustment -20dBV/+5dBV(nominal/maximum)
Output level +0/-30dBV
Output Impedance 500Ω
External microphone input (XLR(F) balanced)
Input sensitivity -56dBV
Adjustment. +6dBV/-6dBV(nominal/maximum)
Phantom supply 12V+/-1V, 2*680Ω (±2%)
System limits Number of delegate/chairman units connected to one control unit
Maximum in total 50
Maximum per trunk output 25
Maximum trunk length using CS-1 standard cabling: 100m
Dimensions (HxWxD) 360*150*90 mm
Weight 1875 grams
