TELEVIC Confidea F-CI Chairman Interpretation Flushmount Unit

ฐานไมโครโฟนแบบฝังโต๊ะสำหรับประธานพร้อมลำโพงและชุดแปลภาษา TELEVIC Confidea F-CI, Priority and ‘Next’ button, Language channel selector, Channel information display, Compatible with Plixus Engines

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿35,800.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

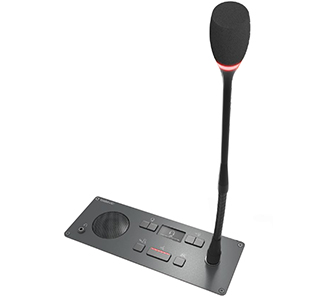

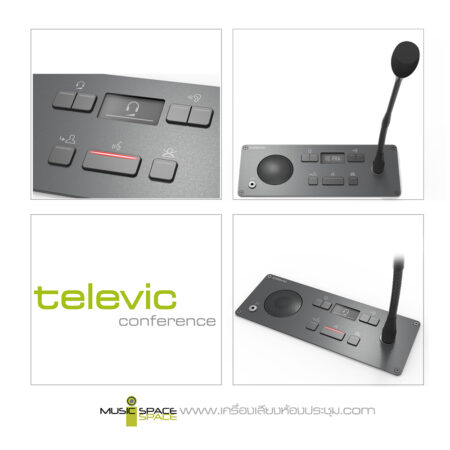

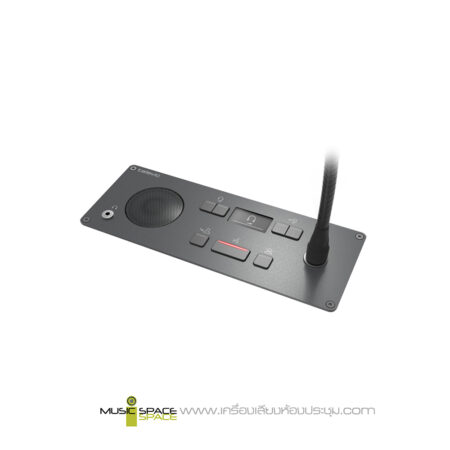

TELEVIC Confidea F-CI Chairman Interpretation Flushmount Unit

ฐานไมโครโฟนแบบฝังโต๊ะสำหรับประธานพร้อมลำโพงและชุดแปลภาษา TELEVIC Confidea F-CI, Priority and ‘Next’ button, Language channel selector, Channel information display, Compatible with Plixus Engines

The Confidea F-CI is a chairman panel for discussion systems with simultaneous interpretation. Its small form factor allows a minimalistic integration into the meeting room furniture.

The integrated speaker creates a distributed sound field in the meeting room, increasing intelligibility without the need for an additional room sound system. The panel has a screw-lock connector to fit a Confidea microphone.

For the hearing impaired a 3,5 mm jack socket is provided to connect headphones or a hearing loop. For simultaneous interpretation, the panel has a channel selector and headphones volume adjustment. The information display shows the ISO code of the selected language and volume setting.

Compared to the delegate version, this chairman panel has an additional “next-in-line” and “priority” button.

Features:

  • For discussion and interpretation
  • Microphone button
  • Integrated loudspeaker
  • Headphones connector
  • Headphones volume adjustment
  • Language channel selector
  • Channel information display
  • Priority and ‘Next’ button
  • Screw-lock socket for removable microphone Round corners
  • Two RJ 45 connectors for loop through cabling
  • 3,5 mm jack socket for headphones
  • Compatible with Plixus Engines
Share This:

Specifications

Mechanical

Material Steel Color Tiger coating Carbon 01
Size (mm) 210 (w) × 80 (h) × 70 (d) Size packed (mm) 250 (w) × 120 (h) × 85 (d)
Weight 740g Weight packed 860g

Electrical

Voltage 48 VDC Current consumption 4 W

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Dynamic range > 90 dB Frequency response 20-20,000 Hz
THD @ nominal level 0.1%

Display

Display Type OLED Resolution 128 × 64
Character Height 5 mm
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea F-CI

ดาวน์โหลด Brochure TELEVIC Confidea F
