TELEVIC Confidea F-CD Chairman Flushmount Units

ฐานไมโครโฟนประชุมแบบฝังโต๊ะสำหรับประธานพร้อมลำโพง TELEVIC Confidea F-CD, Microphone button, “Priority” button, Headphones connector, Screw-lock socket for removable microphone Round corners,  RJ 45 connectors

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿25,600.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

TELEVIC Confidea F-CD Chairman Flushmount Units

ฐานไมโครโฟนประชุมแบบฝังโต๊ะสำหรับประธานพร้อมลำโพง TELEVIC Confidea F-CD, Microphone button, “Priority” button, Headphones connector, Screw-lock socket for removable microphone Round corners,  RJ 45 connectors

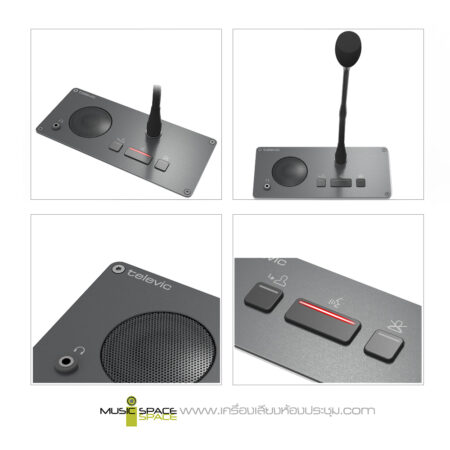

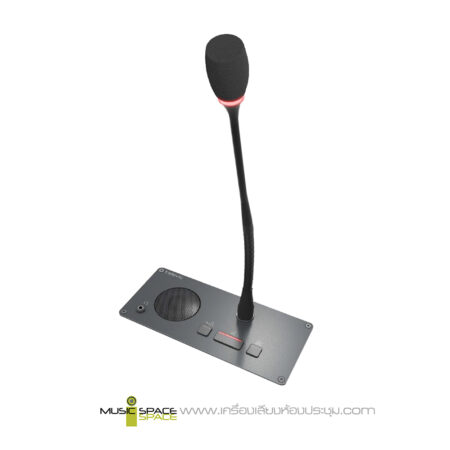

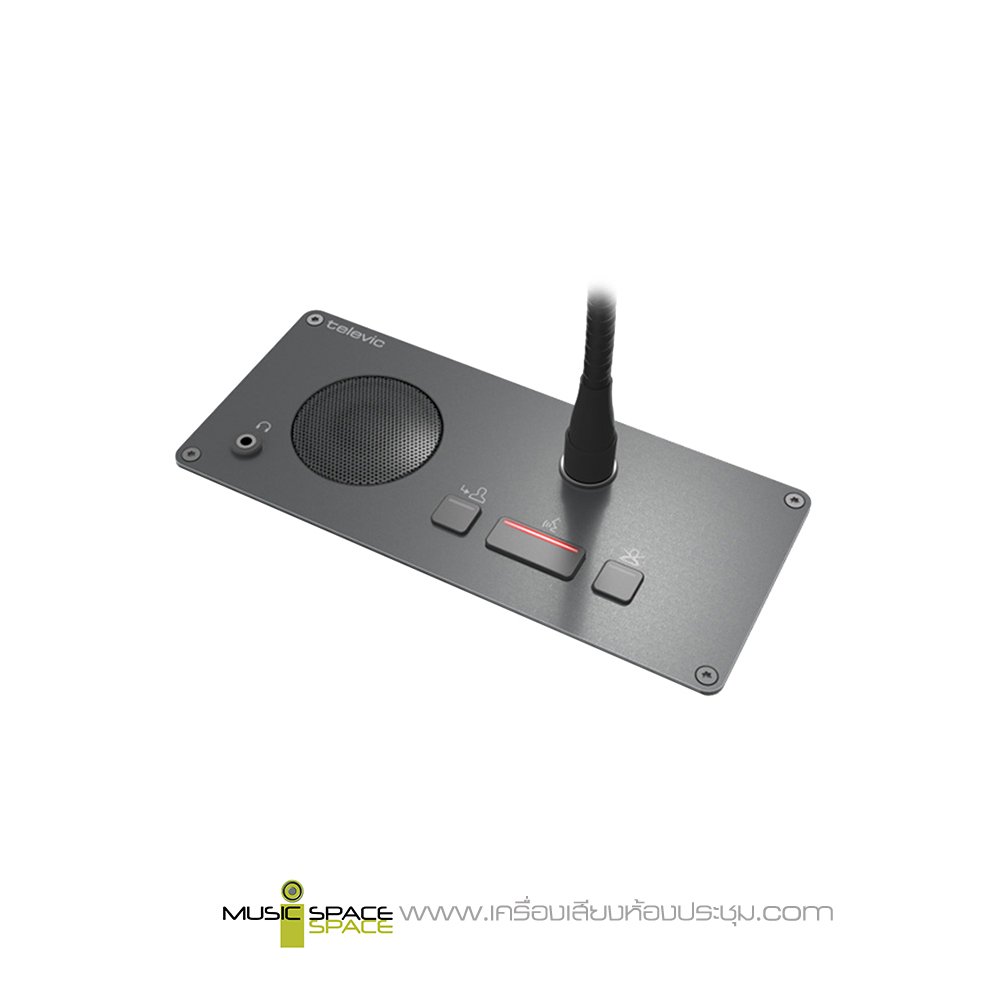

The Confidea F-CD is a chairman panel for basic discussion systems. Its small form factor allows a minimalistic integration into the meeting room furniture.

The integrated speaker creates a distributed sound field in the meeting room, increasing intelligibility without the need for an additional room sound system. The panel has a screw-lock connector to fit a Confidea microphone.

For the hearing impaired a 3,5 mm jack socket is provided to connect headphones or a hearing loop. Compared to the delegate version, this chairman panel has an additional “next-in-line” and “priority” button.

Features:

  • For basic discussion
  • Microphone button
  • “Next-in-line” button
  • “Priority” button
  • Integrated loudspeaker
  • Headphones connector
  • Screw-lock socket for removable microphone Round corners
  • Two RJ 45 connectors for loop through cabling
  • 3,5 mm jack socket for headphones
  • Compatible with Plixus Engines
Share This:

Specifications

Mechanical

Material Steel Color Tiger coating Carbon 01
Size (mm) 180 (w) × 80 (h) × 70 (d) Size packed (mm) 235 (w) × 120 (h) × 85 (d)
Weight 640g Weight packed 740g

Electrical

Voltage 48 VDC Current consumption 3.5 W

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Dynamic range > 90 dB Frequency response 20-20,000 Hz
THD @ nominal level 0.1%
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea F-CD

ดาวน์โหลด Brochure TELEVIC Confidea F
