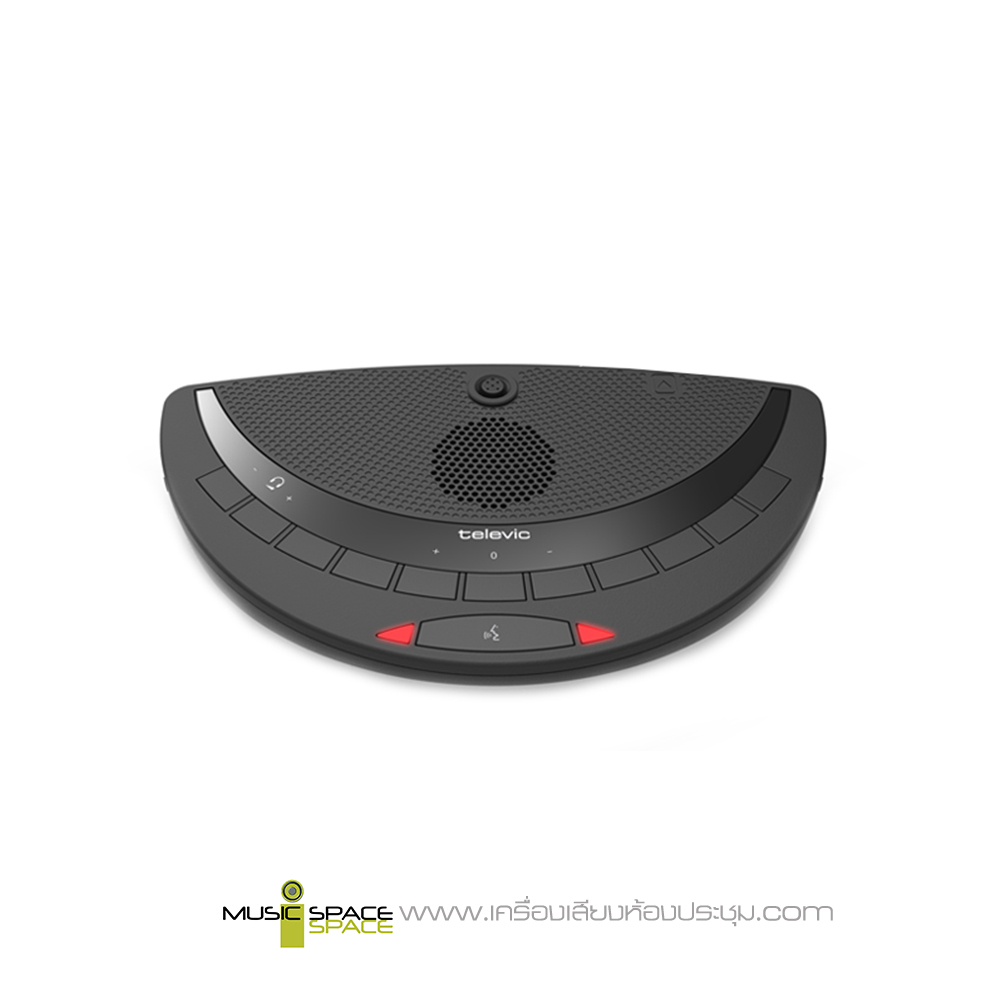

TELEVIC Confidea T-CD Chairman Discussion Unit

ฐานไมโครโฟนประชุมแบบมีสายพร้อมลำโพงสำหรับประธาน  TELEVIC Confidea T-CD, Built-in high quality loudspeaker, automatically muted when the microphone is active, Priority and ‘next-in-line’ button

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿23,300.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

TELEVIC Confidea T-CD Chairman Discussion Unit

ฐานไมโครโฟนประชุมแบบมีสายพร้อมลำโพงสำหรับประธาน  TELEVIC Confidea T-CD, Built-in high quality loudspeaker, automatically muted when the microphone is active, Priority and ‘next-in-line’ button

The Confidea T-CD is a tabletop chairman unit for basic discussion systems. It combines a slim, contemporary design, excellent intelligibility and ease of use.

The unit is equipped with a microphone On/Off or request-to-speak button and two headphone outputs with a single volume control. Compared to the delegate unit, this chairman version has additional controls: a priority and next-in-line button.

Features:

  • Built-in high quality loudspeaker which is automatically muted when the microphone is active, to prevent acoustic feedback.
  • Microphone On/Off or request-to-speak button with two signalling LEDs
  • Two headphone outputs with single volume control
  • Priority and ‘next-in-line’ button

Connectivity

  • Two 3.5 mm jack plugs for headphones
  • Two RJ45 connectors
  • Screw lock socket to connect removable microphone
  • Compatible with Plixus Engines
Share This:

Specifications

Mechanical

Material PC/ABS Color Black matt, RAL9011
Size (mm) 230 (w) × 130 (h) × 60 (d) Size packed (mm) 250 (w) × 150 (h) × 90 (d)
Weight 480g Weight packed 620g

Electrical

Voltage 48 VDC Consumption 3.5 W

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Nominal input level -54.7 dBV Maximum input level -24.6 dBV
Input impedance 1 kΩ Dynamic range > 93 dB
Frequency response 25-20,000 Hz THD @ nominal level < 0.1%
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea T-CD
