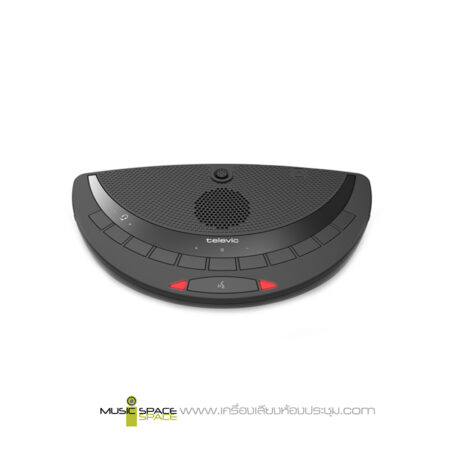

TELEVIC Confidea T-CV Chairman Voting Unit

ฐานไมโครโฟนประชุมแบบมีสายสำหรับประธาน TELEVIC Confidea T-DV พร้อมลำโพงและ electronic voting (ลงคะแนนเสียง) 3-voting buttons (+  0  -), OLED voting result display, RJ45 connectors, Compatible with Plixus Engines

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿25,600.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

TELEVIC Confidea T-CV Chairman Voting Unit

ฐานไมโครโฟนประชุมแบบมีสายสำหรับประธาน TELEVIC Confidea T-DV พร้อมลำโพงและ electronic voting (ลงคะแนนเสียง) 3-voting buttons (+  0  -), OLED voting result display, RJ45 connectors, Compatible with Plixus Engines

The Confidea T-CV is a tabletop chairman unit for discussionapplications that include electronic voting. It combines a slim, contemporary design, excellent intelligibility and ease of use. The units are equipped with a microphone On/Off or request-to-speak button and have two headphone outputs with a single volume control.

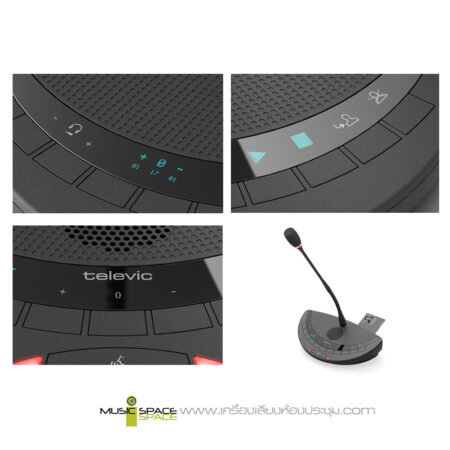

Three voting buttons and 2 OLED information displays facilitate voting and opinion polling during the meeting. The OLED display shows the result of a vote. From this unit, the chairman can also control the overall system volume. The built-in RFID card reader can be used for authentication in case of electronic voting or identification in a free seating environment.

Compared to the delegate version, this unit has additional controls and an extra OLED display. This display visualizes the voting start and -stop controls that this unit has. Other additional buttons are for priority and next-in-line controls.

Features:

  • Built-in high quality loudspeaker which is automatically muted when the microphone is active, to prevent acoustic feedback.
  • Mic On/Off or request-to-speak button with two signalling LEDs
  • Two headphone outputs with single volume control
  • Three voting buttons (+  0  -)
  • 2 OLED voting result displays
  • RFID card reader
  • ‘Priority’ and ‘Next-in-line’ buttons
  • Start and stop voting from the unit
  • System volume control

Connectivity

  • Two 3.5 mm jack plugs for headphones
  • Two RJ45 connectors
  • Screw lock socket to connect removable microphone
  • Compatible with PlixusEngines
Share This:

Specifications

Mechanical

Material PC/ABS Color Black Matt, RAL9011
Size (mm) 230 (w) × 130 (h) × 60 (d) Size packed (mm) 250 (w) × 150 (h) × 90 (d)
Weight 480g Weight packed 620g

Electrical

Voltage 48 VDC Consumption 4.5 W
Card reader ISO 14443 MIFARE Card  Reader
DESfire EV1 support

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Nominal input level -54.7 dBV Maximum input level -24.6 dBV
Input impedance 1 kΩ Dynamic range > 93 dB
Frequency response 25-20,000 Hz THD @ nominal level < 0.1%



Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea T-CV
