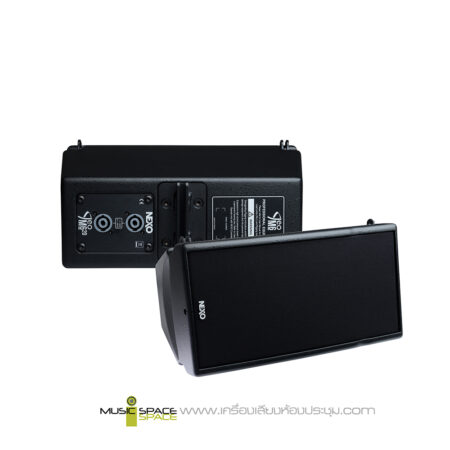

NEXO GEO M620 Full range Module Speaker

ลำโพงแบบไลน์อาเรย์ขนาด 6.5 นิ้ว
รองรับกำลังขับของเครื่องขยายเสียงได้ 450 วัตต์ 8โอหม์
ให้เสียงแบบ Full Range


฿69,100.00 ฿62,190.00



Category: . Tag: .

Product Description

ลำโพงสำหรับห้องประชุมแบบไลน์อาเรย์ขนาด 6.5 นิ้ว รองรับกำลังขับของเครื่องขยายเสียงได้ 450 วัตต์ 8โอหม์

The GEO M620 is a full-range unit for stand-alone, curved array or line array application. Extremely compact in size (191 x 373 x 260 mm), the
M620 module punches well above its weight of less than 10 kgs. Using a NEXO-designed long-excursion high-efficiency 6.5″ LF driver and a 1″
throat driver on a BEA/FEA optimised HR Wavesource, the M620 delivers a frequency response of 80Hz-19kHz ±3dB, with nominal peak SPL of
127dB. HF dispersion is 80° or 120° horizontal, with 20° vertical coverage, 0° to 20° splay when arrayed. Using NEXO’s HRW patented waveguide for
optimum HF coupling between elements, the M620 performs in a variety of configurations, facilitated by a fully-integrated 3-point rigging system.

GEO M620 with NEXO TD Controller setup
Frequency Response 80Hz – 19kHz ±3dB
Usable Range @-6dB 75Hz – 20kHz
Sensitivity 1W @ 1m 95dB SPL Nominal
Nominal Peak SPL @ 1m 127dB
HF Dispersion 80˚or 120˚Horizontal (CCD)
Crossover Frequencies LF-HF: 2kHz Passive
Nominal Impedance8Ω
Recommended Amplifiers 450W per box (3 boxes max in parallel on one channel amplifier)

Product Features:
Components: LF: 1 x 6.5″ 8Ωlong excursion driver
HF: 1 x 1″ throat driver on a BEA/FEA optimised HR Wavesource
Height x Width x Depth 191mm x 373mm x 260mm
Weight: Net 9.7kg
Connectors 2 x NL4 Speakon 4 poles
Construction Lightweight Polyurethane composite
Fittings: Handles Side Handles
Front Finish Acoustic Fabric fitted front grille

System Operation:
Electronic Controller The NEXO TDController’s presets are precisely matched to the GEO M6 Series
cabinets and include sophisticated protection. Using GEO M6 Series cabinets
without a properly connected NEXO TDController will result in poor sound
quality and can damage components.
Speaker Cabling 2+/2-
