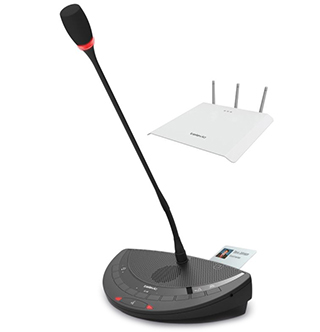

TELEVIC Confidea CD G3 Wireless Chairman Discussion Unit

ฐานไมค์ประชุมไร้สายพร้อมลำโพงสำหรับประธาน TELEVIC Confidea CD G3, Built-in high quality loudspeaker, Two headphone outputs, comes with a priority, next-in-line and system volume adjustment button, Two 3.5 mm jack plugs for headphones

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿38,400.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

TELEVIC Confidea CD G3 Wireless Chairman Discussion Unit

ฐานไมค์ประชุมไร้สายพร้อมลำโพงสำหรับประธาน TELEVIC Confidea CD G3, Built-in high quality loudspeaker, Two headphone outputs, comes with a priority, next-in-line and system volume adjustment button, Two 3.5 mm jack plugs for headphones

The Confidea CD Wireless chairman unit combines a slim, contemporary design, excellent intelligibility and ease of use. The units are equipped with a microphone On/Off or request-to-speak button and have two headphone outputs with a single volume control.

The robust and reliable wireless connection and ample operating frequencies set it apart from traditional wireless conference systems. The chairman unit comes with an additional priority, next-in-line and system volume adjustment button.

Battery and microphone Confidea units combine a smart power management with an easy to replace removeable Lithium-ion battery pack. (Confidea BP, to be ordered separately)

A screw lock connector is provided to connect a removable microphone which is immune against GSM disturbances. (Confidea MICxxSL, lenght 30, 40 or 50cm, to be ordered separately)

Features:

  • Built-in high quality loudspeaker which is automatically muted when the microphone is active, to prevent acoustic feedback.
  • Microphone On/Off or request-to-speak button with two signalling LEDs
  • Two headphone outputs
  • One headphone volume adjustment
  • comes with a priority, next-in-line and system volume adjustment button
  • Two 3.5 mm jack plugs for headphones
  • Battery pack connection Screw lock socket to connect removable microphone
Share This:

Specifications

Mechanical

Material PC/ABS Color Black matt, RAL9011
Size (mm) 230 (w) × 130 (h) × 60 (d) Size packed (mm) 250 (w) × 150 (h) × 90 (d)
Weight 460g Weight packed 580g

Electrical

Supply Battery pack Consumption Max. 3.5 W
Audio Quality 16 bit digital @ 32 kHz RF power output < 20 dBm

Microphone

Audio delay 20 ms (ATM) Nominal conditions Bias resistor = 1k2 Vdd = 3.3 V DC SPL = 1Pa
Directivity Unidirectional Sensitivity -43.4 dBV/Pa
Frequency response 130 -15,000 Hz Impedance 680 Ω
Pick-up pattern cardioid

Microphone Input

Frequency response 125-22,000 Hz Input impedance 1 kΩ
Max input level -21 dBV Nominal level -50 dBV
Dynamic range 90 dB THD @ nominal level < 0.1% (1 kHz)

Speaker

Frequency response 150-20,000 Hz Rated speaker power 4 W

Display

Display type OLED 128 × 64 Character height 5 mm

Headphone Output

Max. output power 80 mW / 32 Ω Signal to noise ratio 77.5 dBr (A)
Frequency response 100-14,000 Hz Load impedance > 16 Ω
THD @ nominal level 0.06% @ 1 kHz in 32 Ω load

Environment

Operating temperature -5 to 55 °C Charging temperature 0 to 45 °C

Battery Autonomy & Charging

Capacity 6600 mAh Autonomy 28 h
Output voltage 7.2 VDC Charging time 4 h
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea CD G3

ดาวน์โหลด Brochure TELEVIC Confidea G3
