TOA TS918 Expansion Unit

ไมค์ประชุมไร้สาย TOA TS-918 Interface for incorporating the wired conference unit(s) into the conference system, Auto Mic-Off function to prevent inadvertent microphone shutoff failure, Speaker restriction function

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿19,790.00 ฿17,800.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

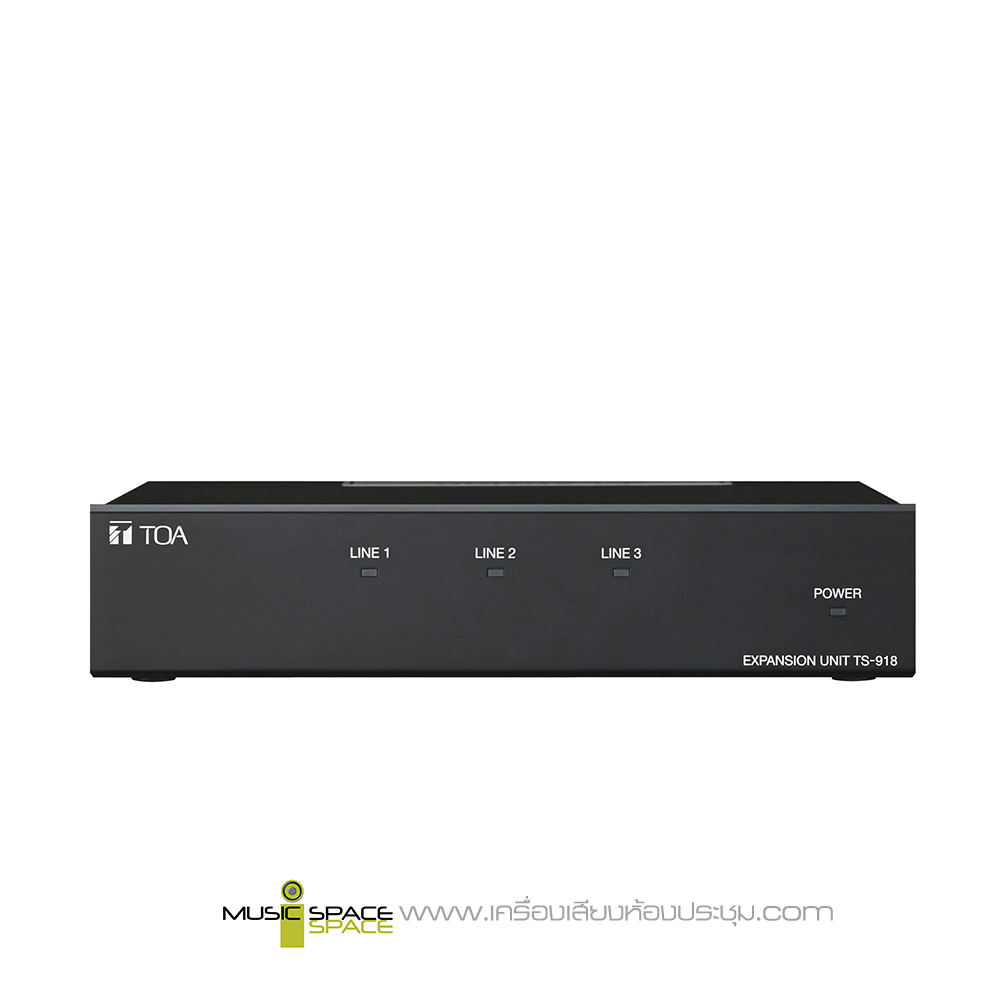

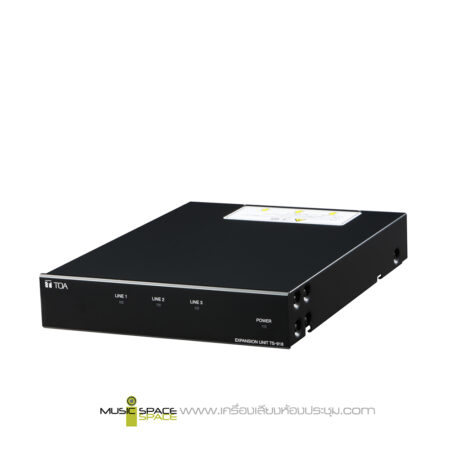

TOA TS-918 Expansion Unit

ไมค์ประชุมไร้สาย TOA TS-918 Interface for incorporating the wired conference unit(s) into the conference system, Auto Mic-Off function to prevent inadvertent microphone shutoff failure, Speaker restriction function

The TS-918 is an interface necessary for incorporating the Wired conference unit(s) in the conference system. It is connected to the TS-910 Central unit with a coaxial cable and to the TS-919B1 or TS-919B4 Bridge unit with a Category 5 cable.

With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).

Features:

  • Interface for incorporating the wired conference unit(s) into the conference system
  • Can be mounted in an EIA Standard equipment rack (1 unit size)
  • Auto Mic-Off function to prevent inadvertent microphone shutoff failure
  • Speaker restriction function
  • Speeches can be addressed to audience via externally interlinked sound reinforcement system
Share This:

Specifications

Power Source 100 – 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption 74.4 W
Current Consumption Max. 3.1 A DC (when 24 V DC is supplied from the accessory AC adapter)
Gain Upstream: +16.5 dB
Downstream: +12.5 dB

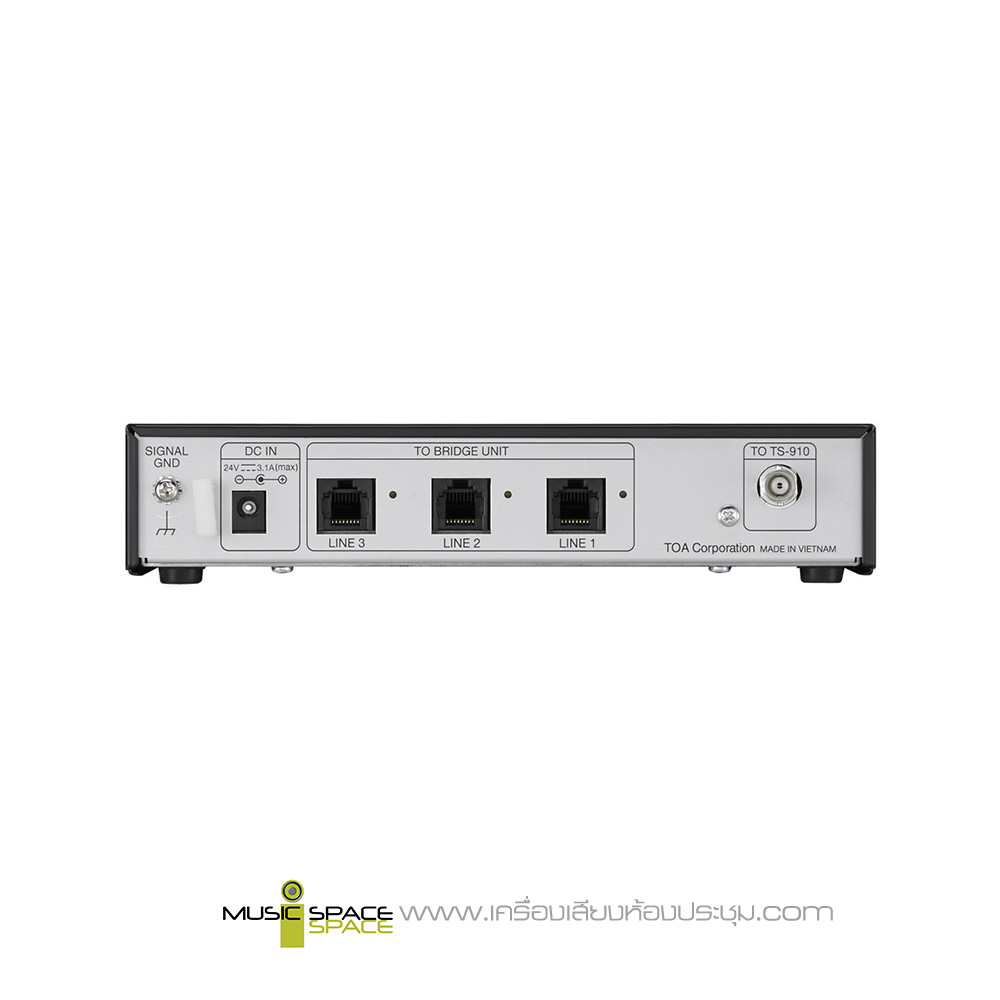

Connection Terminal Central unit connection terminal: BNC jack
Bridge unit connection terminal: RJ45 connector
LED Indicator Connection status indicators (3 LEDs each on the front and rear panels),
Power indicator
Number of Connectable Chairman/Delegate Units Up to 24 units (when using 21 units of TS-919B1 or 6 units of TS-919B4, both optional Expansion units)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum, black, 30% gloss, melamine-baked paint
case: Pre-coated steel plate, black
Dimensions 210 (W) × 44 (H) × 296.5 (D) mm (8.27″ × 1.73″ × 11.67″)
Weight 1.6 kg (3.53 lb)
Accessory AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft)
detachable AC cord)…1, BNC plug-to-BNC plug cord (50 cm (1.64 ft)) …1
Option Rack mounting bracket: MB-15B-BK (for rack mounting one TS-918 unit)
MB-15B-J (for rack mounting two TS-918 units)
Share This:

Downloads

ดาวน์โหลด Data Sheet TOA TS918 Expansion Unit
