TOA TS811 Chairman Unit

ไมค์โครโฟนประชุมไร้สาย ชุดประธาน TOA TS-811 priority switch, allowing speech to take precedence over the Delegate unit can be selected for the microphone.

฿20,790.00 ฿18,700.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

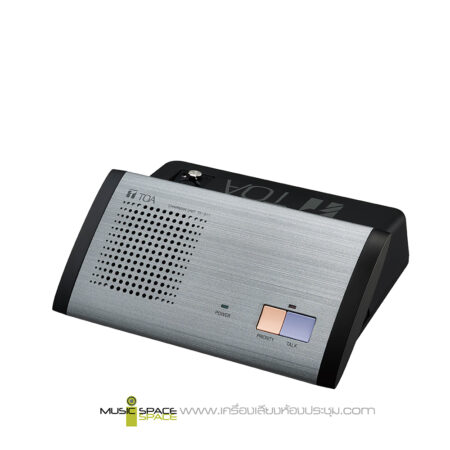

ไมค์โครโฟนประชุมไร้สาย ชุดประธาน TOA TS-811

The TS-811 is a Chairman unit that can be connected to the conference system by a cable. It is equipped with a priority switch, allowing speech to take precedence over the Delegate unit. The TS-811 is directly connected to the TS-919B1 or TS-919B4 Bridge unit, then to the TS-910 Central unit via the TS-918 Expansion unit. Either the standard type or long type can be selected for the microphone.

Specifications:

Power Source 24 V DC (supplied from the TS-918 Expansion Unit (option))
Current Consumption Max. 60 mA
Modulation Method Frequency modulation
Carrier Frequency Transmission: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Reception: Audio channel: 1.95 MHz
Input Microphone terminal: XLR-4-31 type
(dedicated for connecting the optional TS-903 or TS-904)
Output Monitor speaker: 8 Ω, 0.2 W
Headphone: φ3.5 mm mini Jack (3P:monaural) × 2
Connection Terminal RJ45 connector
LED Indicator Speech indicator (flashes at communication failure),
Power indicator (flashes at communication failure)
Function Monitor volume control, Headphone volume control, Priority speech function
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Top panel: ABS resin, gray metallic, paint, semi-gloss
Dimensions 210 (W) × 68.6 (H) × 152 (D) mm (8.27″ × 2.7″ × 5.98″)
Weight 560 g (1.23 lb)
Option Microphone: TS-903, TS-904 (Select either one.)
