TELEVIC Confidea T-DI Delegate Interpretation Unit

ฐานไมโครโฟนประชุมแบบมีสายสำหรับผู้ร่วมประชุม TELEVIC Confidea T-DI พร้อมลำโพงและชุดแปลภาษา, OLED information display (Volume bar and selected language), RFID card reader, RJ45 connectors, Compatible with Plixus Engines

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿24,300.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

TELEVIC Confidea T-DI Delegate Interpretation Unit

ฐานไมโครโฟนประชุมแบบมีสายสำหรับผู้ร่วมประชุม TELEVIC Confidea T-DI พร้อมลำโพงและชุดแปลภาษา, OLED information display (Volume bar and selected language), RFID card reader, RJ45 connectors, Compatible with Plixus Engines

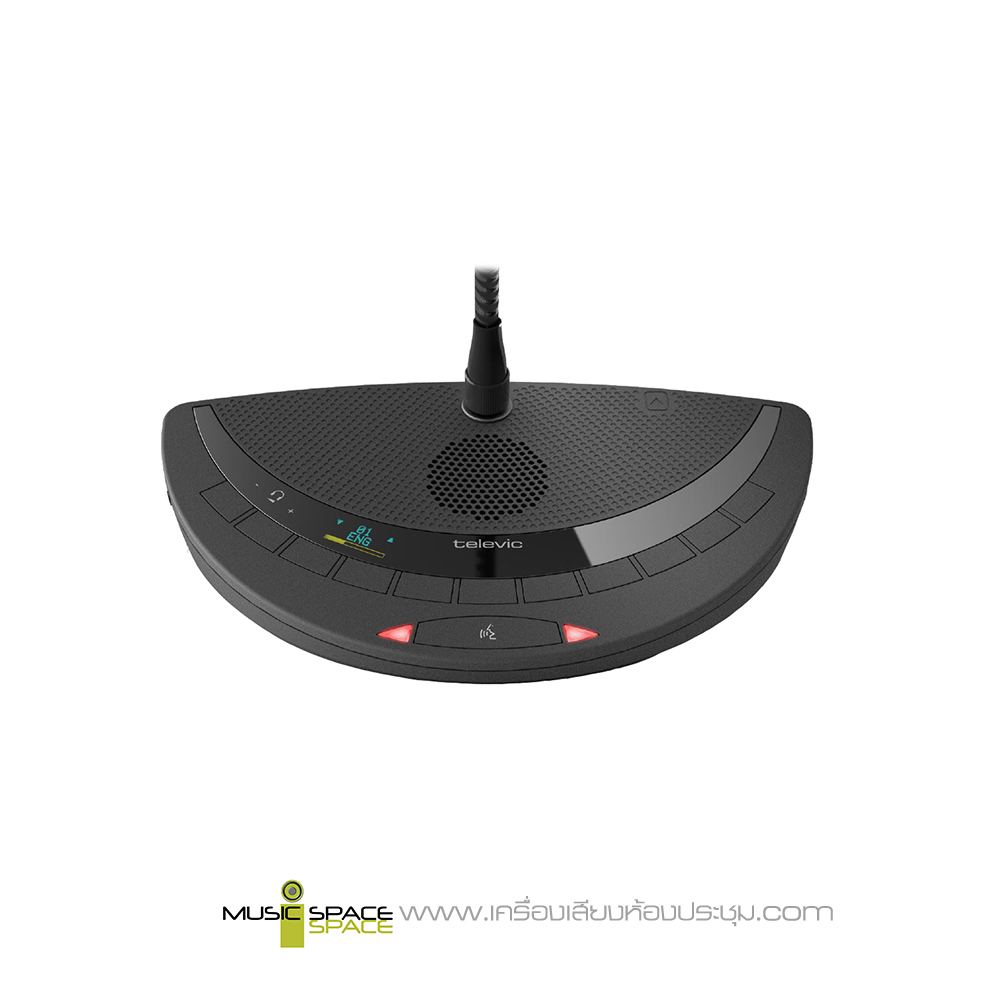

The Confidea T-DI is a tabletop delegate unit for discussion applications combined with simultaneous interpretation. It combines a slim, contemporary design, excellent intelligibility and ease of use. The unit has a channel selector and two headphone outputs with a single volume control. It allows a meeting delegate to speak, request-to-speak and listen to the speaker in his or her native language.

An OLED information display indicates the selected channel number, the abbreviated channel name in ISO format and a volume bar. This unit is also equipped with an RFID card reader for identification. This is ideal for meetings with a free seating policy  the system can keep track of who is seated where.

The chairman version of this unit comes with additional controls

Features:

  • Built-in high quality loudspeaker which is automatically muted when the microphone is active, to prevent acoustic feedback.
  • Microphone On/Off or request-to-speak button with two signalling LEDs
  • Two headphone outputs with single volume control
  • OLED information display (Volume bar and selected language)
  • RFID card reader

Connectivity

  • Two 3.5 mm jack plugs for headphones
  • Two RJ45 connectors
  • Screw lock socket to connect removable microphone
  • Compatible with Plixus Engines
Share This:

Specifications

Mechanical

Material PC/ABS Color Black Matt, RAL9011
Size (mm) 230 (w) × 130 (h) × 60 (d) Size packed (mm) 250 (w) × 150 (h) × 90 (d)
Weight 480g Weight packed 620g

Electrical

Voltage 48 VDC Consumption 3.5 W

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Nominal input level -54.7 dBV Maximum input level -24.6 dBV
Input impedance 1 kΩ Dynamic range > 93 dB
Frequency response 25-20,000 Hz THD @ nominal level < 0.1%
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea T-DI
