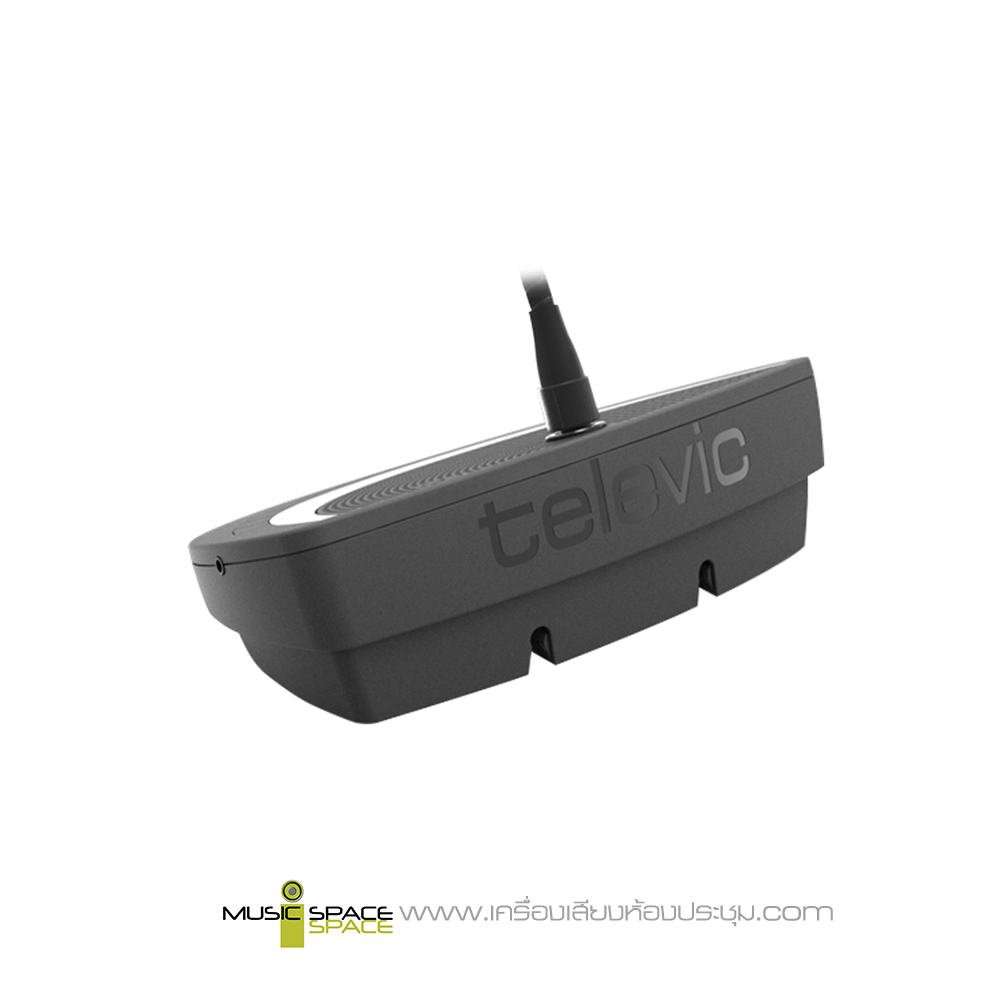

TELEVIC Confidea T-DIV Delegate Interpretation & Voting Unit

ฐานไมโครโฟนประชุมแบบมีสายสำหรับผู้ร่วมประชุม TELEVIC Confidea T-DIV พร้อมลำโพงชุดแปลภาษาเครื่องลงคะแนนเสียง, OLED information display, RFID card reader, RJ45 connectors, Compatible with Plixus Engines

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿26,400.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

TELEVIC Confidea T-DIV Delegate Interpretation & Voting Unit

ฐานไมโครโฟนประชุมแบบมีสายสำหรับผู้ร่วมประชุม TELEVIC Confidea T-DIV พร้อมลำโพงชุดแปลภาษาเครื่องลงคะแนนเสียง, OLED information display, RFID card reader, RJ45 connectors, Compatible with Plixus Engines

The Confidea T-DIV is a full solution tabletop delegate unit for discussion applications that include simultaneous interpretation and electronic voting. The units allow delegates of a conference to speak, request-to-speak, listen to the speaker in their native language and register their votes. It combines a slim, contemporary design, excellent intelligibility and ease of use.

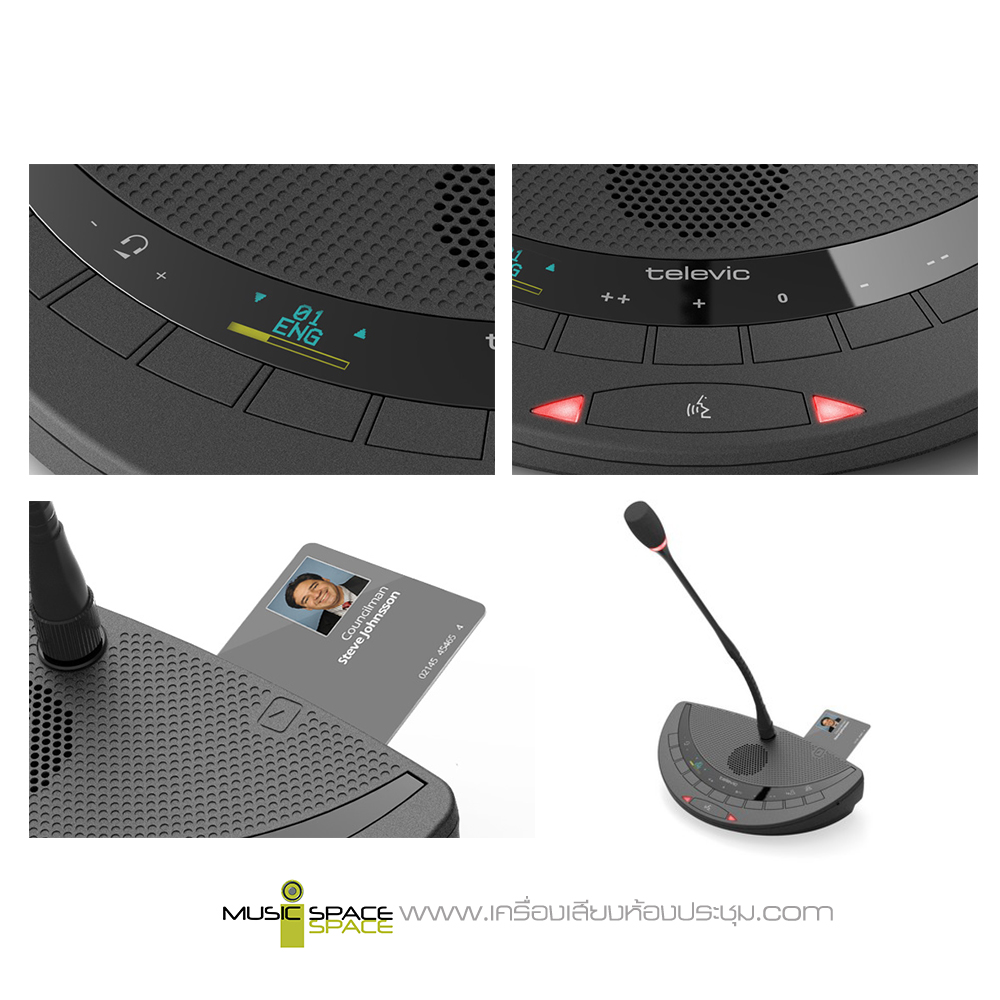

The units are equipped with a microphone On/Off or request-to-speak button a single channel selector driving two headphone outputs, a channel selection information display and five voting buttons.

The built-in RFID card reader can be used for authentication in case of electronic voting or identification in a free seating environment. For 5 button voting applications the dedicated CoCon Control Software suite allows preparation of voting agenda, extended voting control, logging and display of voting results.

The chairman version of this unit has additional controls.

Features:

  • Built-in high quality loudspeaker which is automatically muted when the microphone is active, to prevent acoustic feedback.
  • Microphone On/Off or request-to-speak button with two signalling LEDs
  • Two headphone outputs with single volume control
  • Five voting buttons (++  +  0  –  –)
  • OLED information display
  • RFID card reader

Connectivity

  • Two 3.5 mm jack plugs for headphones
  • Two RJ45 connectors
  • Screw lock socket to connect removable microphone
  • Compatible with Plixus Engines
Share This:

Specifications

Mechanical

Material PC/ABS Color Black matt, RAL9011
Size (mm) 250 (w) × 150 (h) × 90 (d) Size packed (mm) 230 (w) × 130 (h) × 60 (d)
Weight 480g Weight packed 620g

Electrical

Voltage 48 VDC Consumption 4.5 W
Card reader  ISO 14443 MIFARE Card Reader DESfire EV1 support

Speaker Output

Maximum output power > 1 W Frequency response 200-20,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 8 Ω

Headphone Output

Maximum output > 10 mW Frequency response 22-22,000 Hz
Dynamic range > 90 dB THD @ nominal level < 0.1%
Load impedance 16-32 Ω

Microphone Input

Nominal input level -54.7 dBV Maximum input level -24.6 dBV
Input impedance 1 kΩ Dynamic range > 93 dB
Frequency response 25-20,000 Hz THD @ nominal level < 0.1%
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea T-DIV
