TOA PE-64 Pendent Speaker

ลำโพงแบบแขวนเพดาน TOA PE-64 Pendent Speaker ขนาดลำโพง 12 cm (5″) cone-type Bass-reflex type 6 W (100 V line), 3 W (70 V line), Input impedance easily changeable, Bass-reflex type

ราคาสินค้าเป็นราคาใบละ….ไม่รวมภาษีมูลค่าเพิ่ม…

฿2,210.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

TOA PE-64 Pendent Speaker

ลำโพงแบบแขวนเพดาน TOA PE-64 Pendent Speaker ขนาดลำโพง 12 cm (5″) cone-type Bass-reflex type 6 W (100 V line), 3 W (70 V line), Input impedance easily changeable, Bass-reflex type

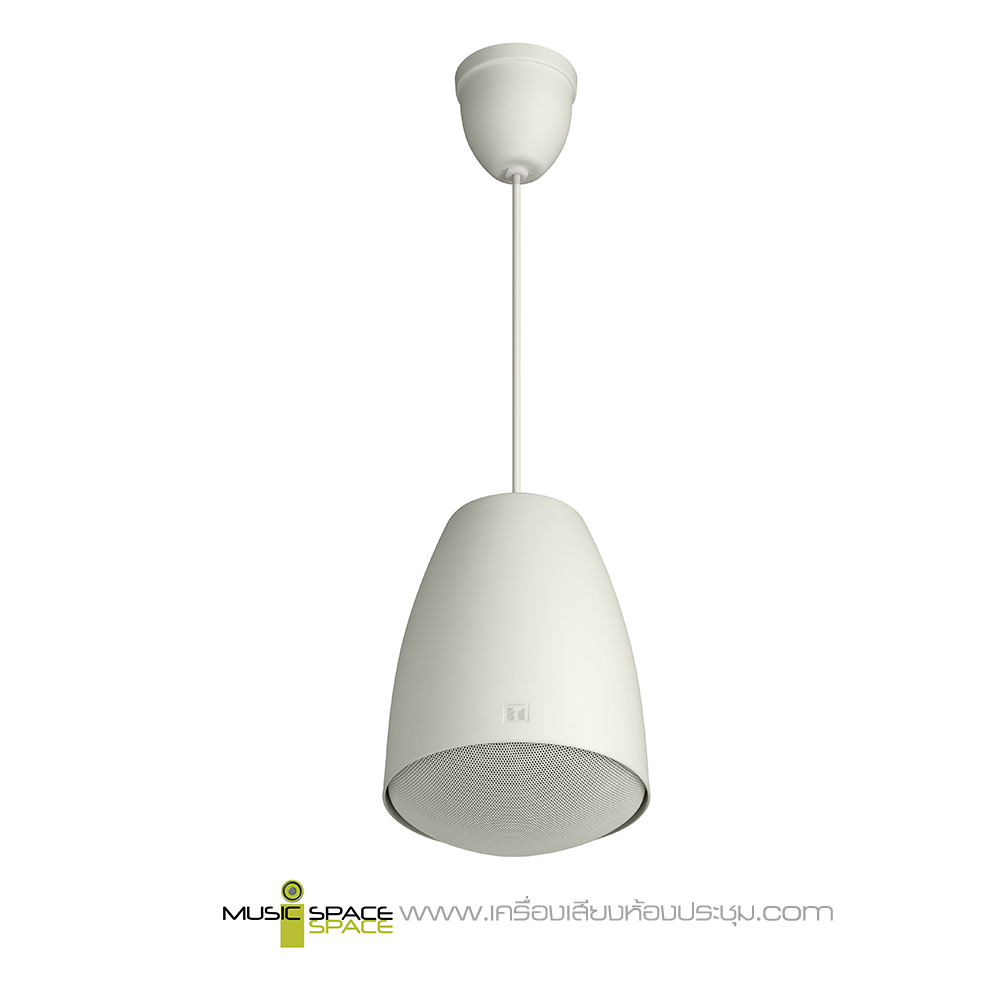

The PE-64 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling.

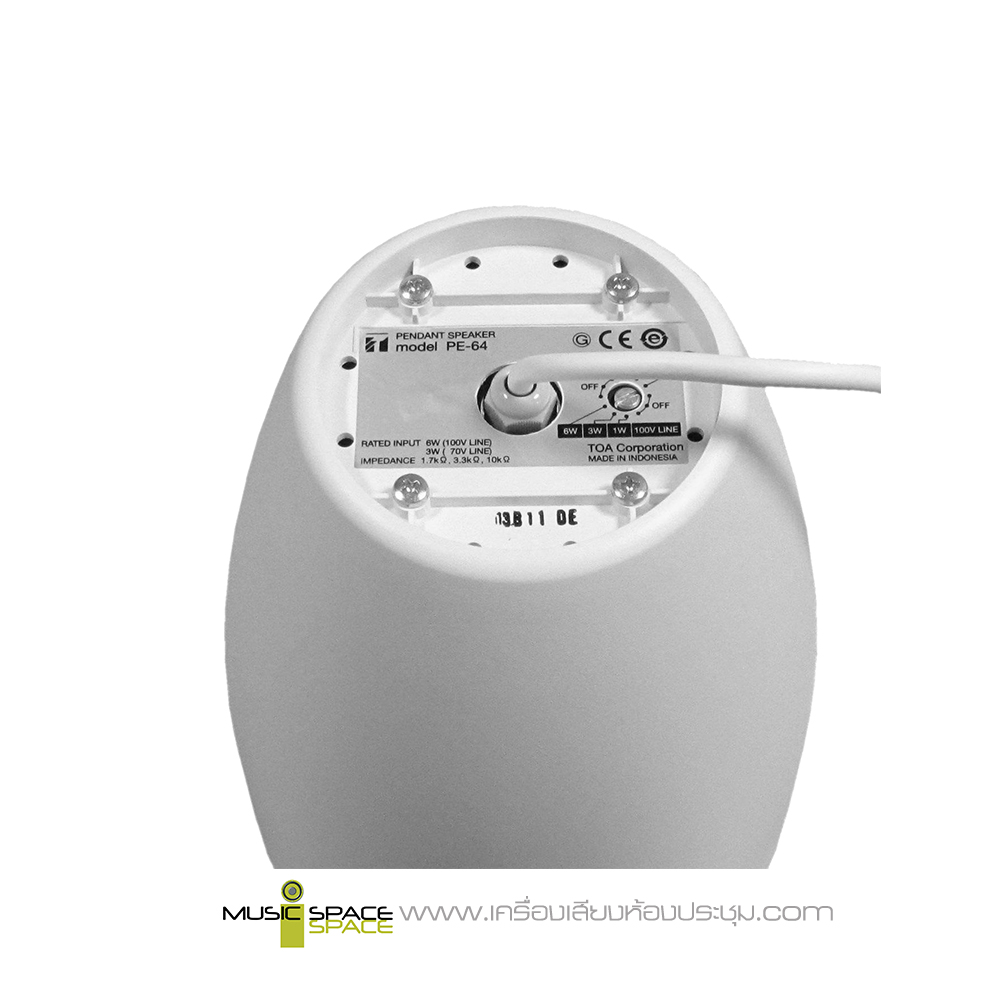

The PE-64 is driven on high-impedance (100 V and 70 V) line. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.

Features:

  • Ideally suited for BGM and announcements
  • Stylish and outstanding design inspired by the finest lighting fixtures
  • Excellent sound quality
  • Sturdy cable extendable up to 5 meters
  • Paintable
  • Input impedance easily changeable
  • Bass-reflex type
Category: Tag:

Specifications

Enclosure Bass-reflex type
Rated Input 6 W (100 V line), 3 W (70 V line)
Rated Impedance 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 90 dB (1 W, 1 m) (500 – 5,000 Hz, pink noise)
Frequency Response 100 – 18,000 Hz (peak -20 dB)
Speaker Component 12 cm (5″) cone-type
Speaker Cord 2-core cabtyre cord 5 m (16.4 ft)
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: φ0.8 – φ1.6 mm (equivalent to AWG 20 – 14)
7-core twisted copper wire: 0.75 – 1.25 m㎡ (equivalent to AWG 18 – 16)
Connection Push-in connector (bridging terminal-2 branch type)
Finish Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color), paint
Dimensions φ186 × 251 (H) mm (φ7.32″ × 9.88″) (unit only)
Weight 1.5 kg (3.31 lb) (unit only)
Accessory Ceiling bracket …1, Mounting hanger …1, Ceiling cover …1,
Speaker mounting screw (4 × 16)…4

Downloads

ดาวน์โหลด Data Sheet TOA PE64 Ceiling

ดาวน์โหลด Spacifications TOA PE64 Ceiling
