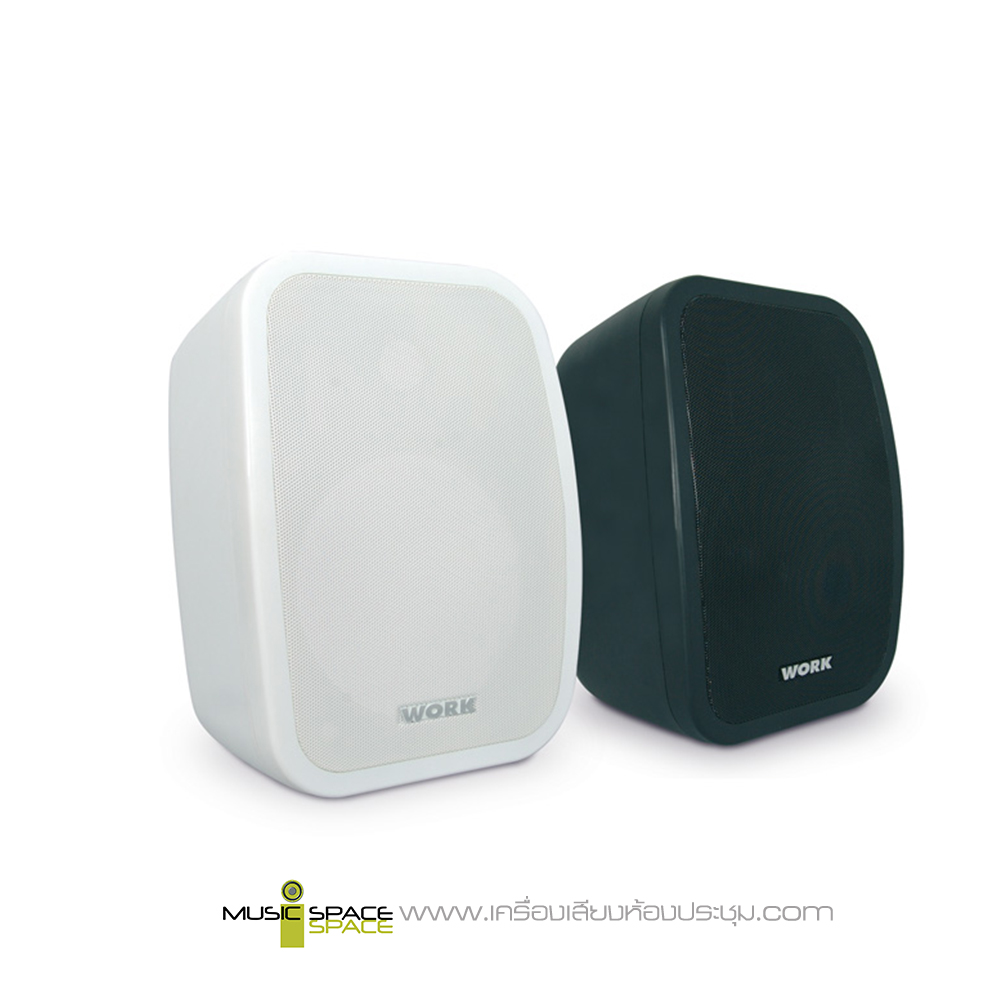

ลำโพงติดผนัง WORK NEO6 Installation loudspeaker 6.5″

Product Description

ตู้ลำโพงแขวนผนัง 6.5” 60w 8 Ohms 100V Line WORK NEO 6

ตู้ลำโพงแขวนผนัง 6.5″ 60w 8 Ohms 100V Line WORK NEO 6 พร้อมขายึดติดผนั้ง ปรับมุมได้ หมุนซ้าย-ขวาได้, Passive two way loudspeakers for fixed installation.

Loudspeakers from the NEO series associate sound quality and elegant design for a perfect integration in all your projects. Five models are available with different power and dimensions.

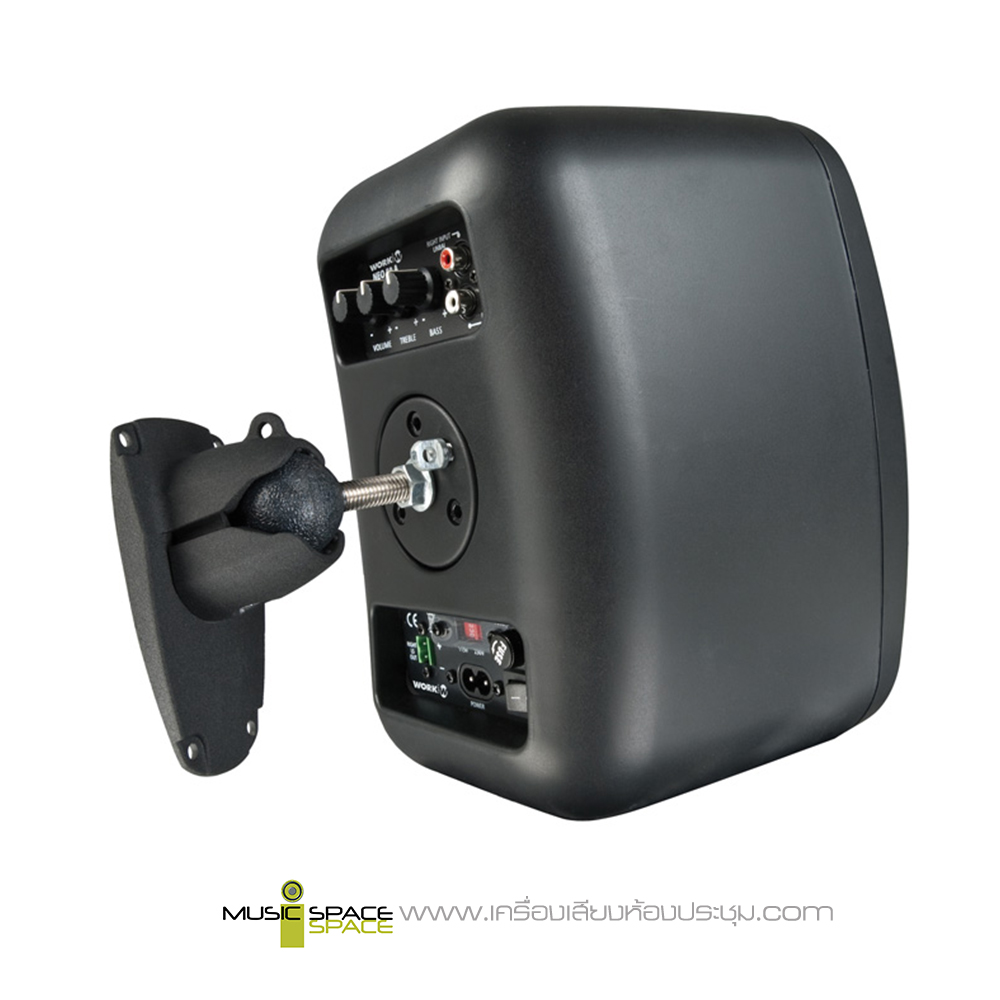

NEO loudspeakers are suitable for low impedance (8 Ω) and high voltage installations (100 V). The wall-mount bracket, specially designed for the NEO series, allows a quick and easy installation.

Speakers are easily oriented to the optimum angle for the desired coverage. The aluminium grille is designed to withstand humid environments.

Contractors take advantage of the modern line, black or white finish and elegant design of NEO loudspeakers, which make them suitable for many projects.

Features:

• Passive two way loudspeakers for fixed installation.
• Available in black and white finish.
• Elegant shape and modern design for an easy integration.

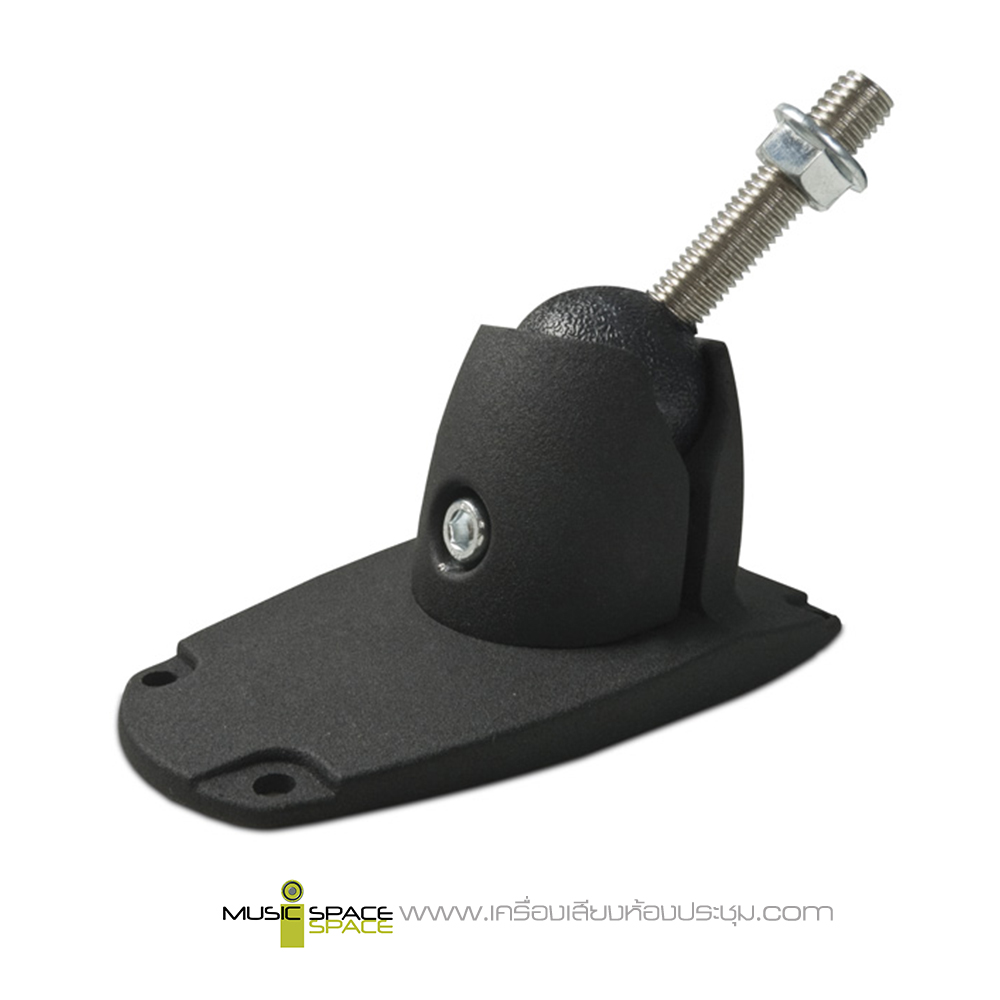

• Included bracket designed for a fast mounting operation.
• Suitable for low impedance (8 Ω) and high voltage installations (100 V).

Specifications

• Type: 2 way passive loudspeaker.
• Elements: 6½” woofer + 1” TWT.
• Power handling (100 V Line): 32 W (312 Ω) / 16 W (625 Ω) / 8 W (1k2 Ω) / 4 W (2k5 Ω).
• (*) Power handling (70 V Line): 16 W (326 Ω) / 8 W (612 Ω) / 4 W (12k23 Ω) / 2 W (2k45 kΩ).
• Power handling (8 Ω): 60 W at 8 Ω.
• Input connectors: Euroblock.
• Sensitivity (1W/1m): 92 dB.
• Max SPL: 109 dB.
• Frequency response: 55 Hz – 20 kHz.
• RAL colour code: RAL 9003 (W) /9004 (B).
• Material (housing): Polypropylene plastic.
• Material (grille): Aluminium.
• Dimensions (WxHxD): 200 x 290 x 175 mm.
• Weight: 3.1 kg each.

Downloads

ดาวน์โหลด Manual WORK NEO 6

Data Sheet
