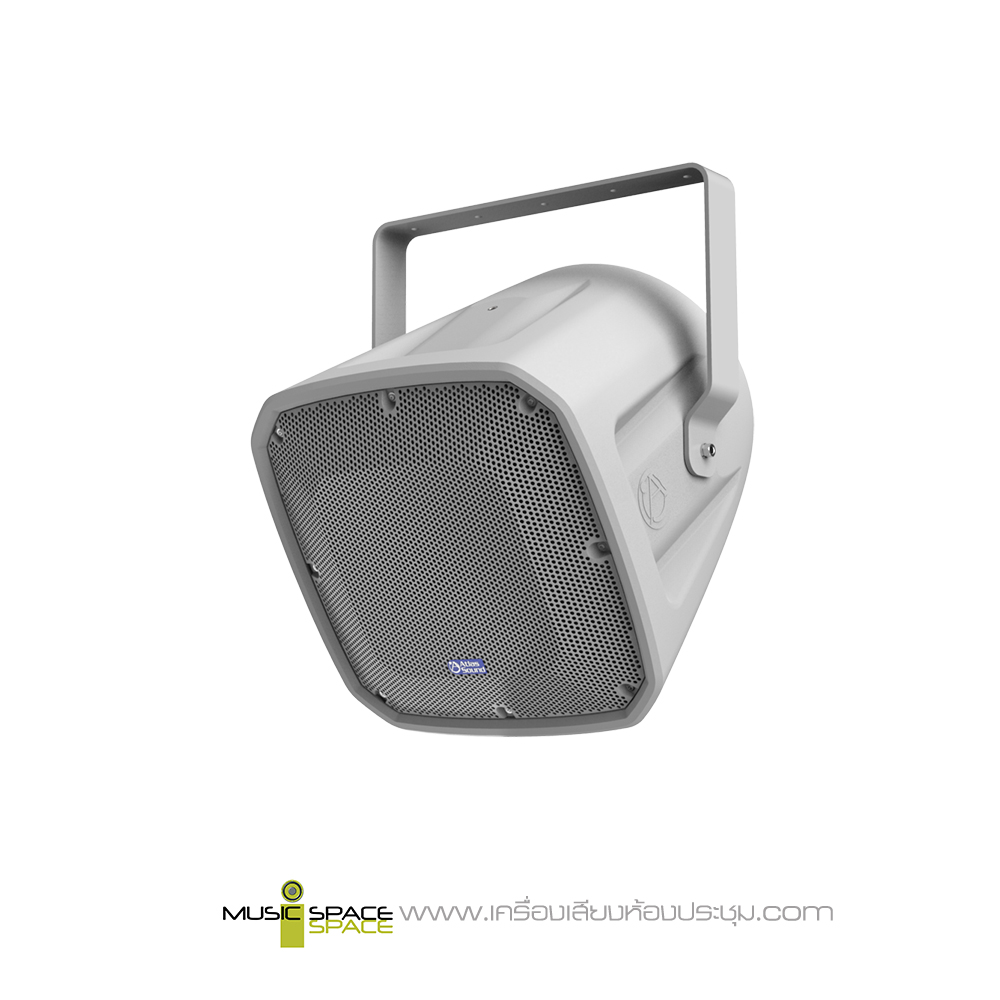

ลำโพงฮอร์น Atlas FS12T-94 Multipurpose Horn Speaker 12″

ลำโพงฮอร์น Atlas FS12T-94 เป็นลำโพง Horn แบบยิงระยะไกล ขนาด 12 นิ้ว มุมกระจายองศา 90º Horizontal 40 º Vertical, 400วัตต์ Power Handling, IP45, Built-In, High Efficiency 70.7V Transformer

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

Atlas FS12T-94 Multipurpose Horn Speaker 12″ 60 x 60 Degree

ลำโพงฮอร์น Atlas FS12T-94 เป็นลำโพง Horn แบบยิงระยะไกล ขนาด 12 นิ้ว มุมกระจายองศา 90º Horizontal 40 º Vertical, 400วัตต์ Power Handling, IP45, Built-In, High Efficiency 70.7V Transformer

The FS12T-94 is two-way, full-range speaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.

It incorporates a 12″ LF driver and 1″ exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 90° x 40° coverage and is tuned for optimal source reproduction.

The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting.

Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 4Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.

Features:

  • All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
  • 400 Watts Power Handling
  • Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 40 º Vertical (2kHz Octave Band)
  • Driver Compliment Includes 12″ Cast Frame Woofer with a Concentrically Mounted 1″ Exit Compression Driver
  • Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
  • Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
  • Four Eyebolt Inserts for Multiple Mounting Capabilities
  • Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
  • Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount
Category: Tag:

Specifications

Power Taps 400, 200, 100, 50 Watts, & 4Ω bypass
Sensitivity 102.5dB SPL
Frequency Response 80Hz – 17.6kHz
Height 19.56″ (49.78 cm)
Driver Type 1″ HF and 12″ LF
Depth 18.5″ (46.9 cm)
Dispersion 90º H x 40º V
Environment IP45
MAX SPL 128.5dB SPL
Width 18.5″(46.9 cm)
Weight 48.00 lbs (21.77 kgs)
Color Pantone 423 C – RAL 7045

Downloads

ดาวน์โหลด All Data Sheet Atlas FS12T-94
