เครื่องขยายเสียง BOSE PowerShare PSX2404D Power Amplifier

เครื่องขยายเสียงแบบ 4 ชาแนล BOSE PowerShare PSX2404D, 4 x 600-watt Low-/High-impedance Power Amplifier with PowerShare Technology, Dante, Onboard DSP, and ControlSpace Integration

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿149,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

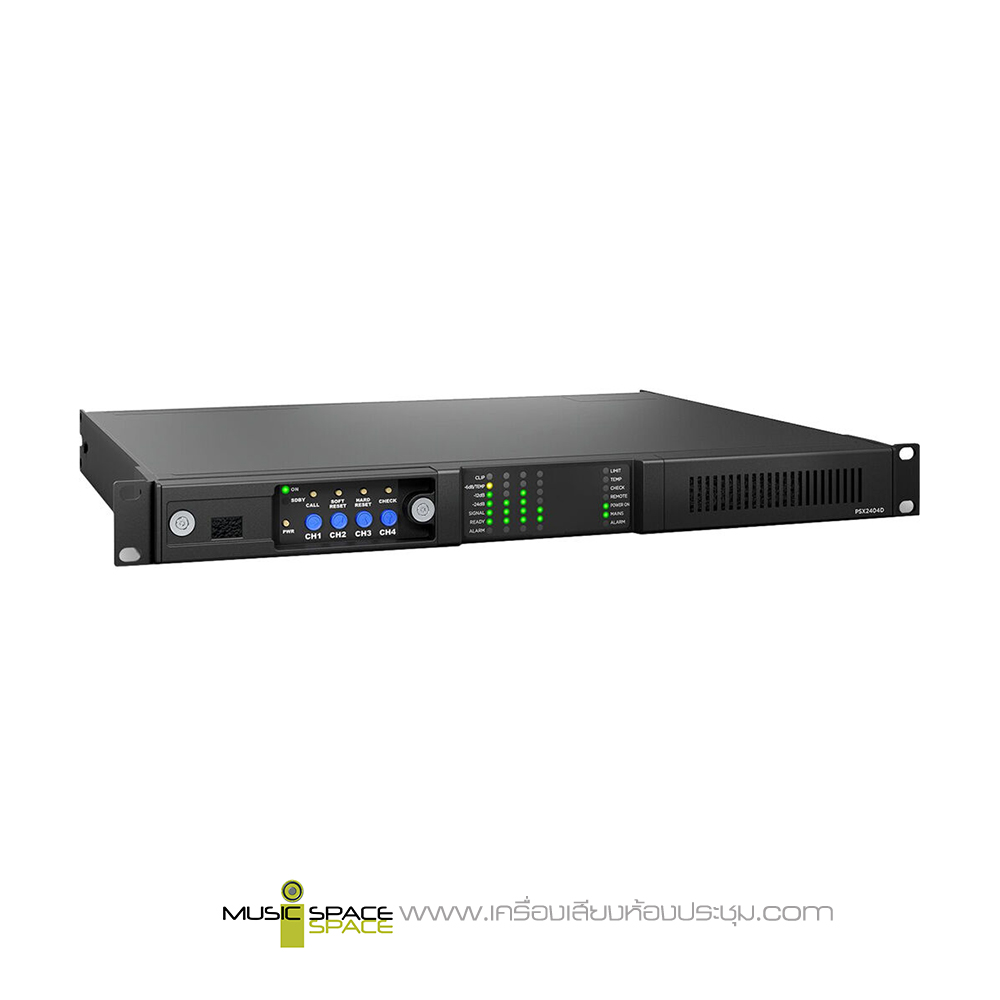

BOSE PowerShare PSX2404D 4-CH Adaptable Power Amplifier

เครื่องขยายเสียงแบบ 4 ชาแนล BOSE PowerShare PSX2404D, 4 x 600-watt Low-/High-impedance Power Amplifier with PowerShare Technology, Dante, Onboard DSP, and ControlSpace Integration

PowerShareX PSX2404D is a four-channel, 2400-watt smart amplifier designed for use with Bose Professional installed sound systems. Onboard DSP gives you instant access to optimized loudspeaker presets via ControlSpace Designer software with easy ecosystem integration across Bose Professional processors, loudspeakers, and controllers.

Design, configuration, installation, and operation become simpler so you can get the job done and move on to the next.

Features:

  • 2,400W power amplifier for fixed installations
  • PowerShare operation shares the power across all output channels
  • Handles both low- and high-impedance loads
  • Onboard DSP and Bose Professional-certified presets enable optimal speaker performance
  • Full ControlSpace integration makes it easy to setup, control, and monitor the system
  • 4 Dante input channels enable a fully digital setup
  • 4 analog inputs effortlessly handle line-level sources
  • GPIO connections supply remote level control, on/off switches, and alarm triggers
  • DIP switches customize the system’s output and performance
  • Channel status LEDs provide at-a-glance monitoring

Specifications

Number of Channels 4
Power Class Class D
Watts/Side @ 8 ohms 600W
Watts/Side @ 4 ohms 600W
Watts/Side @ 2 ohms 800W
Watts Bridged 1200W @ 8 ohms, 1600W @ 4 ohms
70V/100V Output 600W @ 70V/100V
Inputs 1 x 12-pin Euroblock
Outputs 1 x 8-pin Euroblock
Data I/O 1 x RJ-45 (ethernet), 1 x RJ-45 (Dante), 1 x 4-pin Euroblock (GPIO), 2 x 6-pin Euroblock (alarm)
Cooling System Variable Speed Fan
DSP Yes
Filters Yes
Frequency Response 20Hz-20kHz
THD <0.1%
Overload Protection Yes
Rack Spaces 1U
Power Source Standard IEC AC plug
Height 1.8″
Depth 14.1″
Width 19″
Weight 15.4 lbs.

Downloads

ดาวน์โหลด Data Sheet Bose PSX2404D
