เครื่องควบคุมกล้อง Lumens VS-KB30 Compact IP Camera Controller

เครื่องควบคุมกล้องวีดีโอ Lumens VS-KB30 Compact IP PTZ Video Camera, Joystick for Pan / Tilt / Zoom, Quick access control of exposure, white balance, focus, PTZ speed, and 6 user- assignable keys, Control up to total of 255 IP cameras on a single network with PoE support

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿69,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: . Tag: .

Product Description

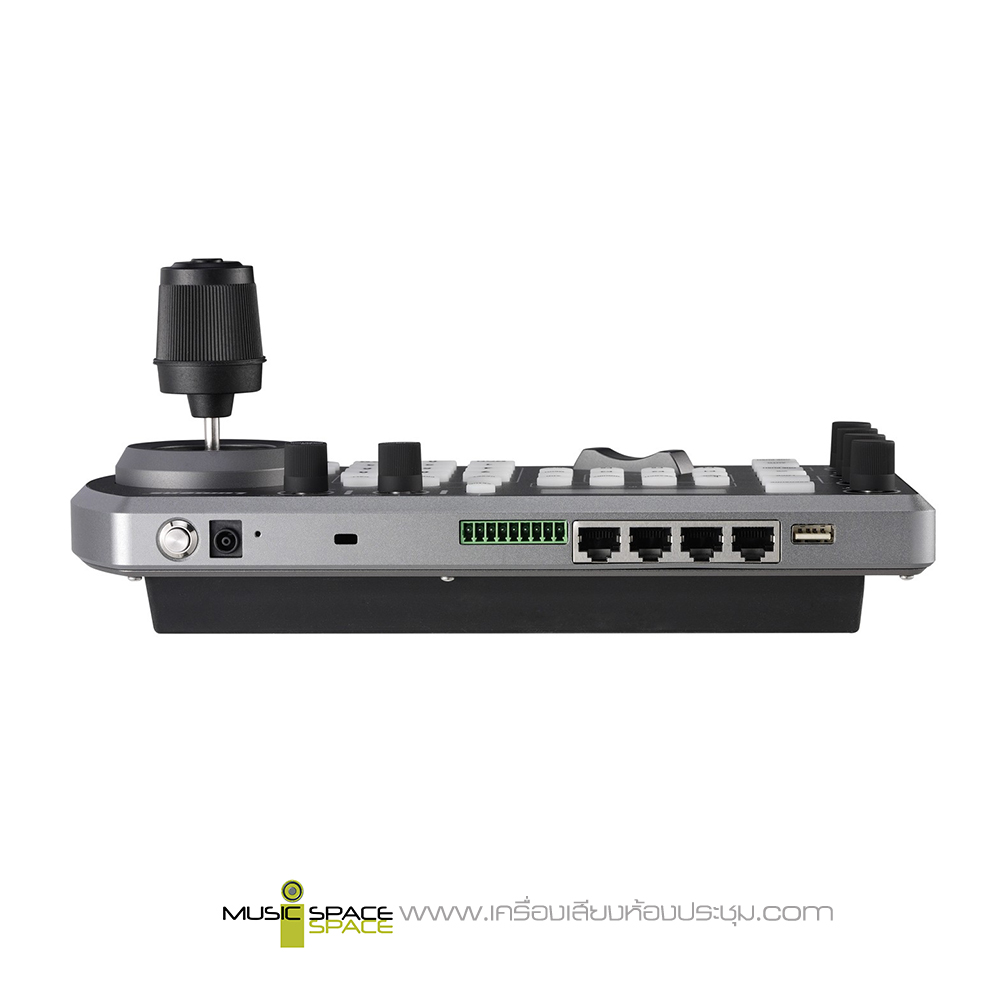

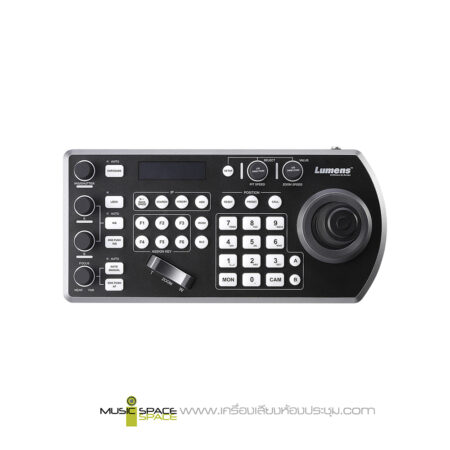

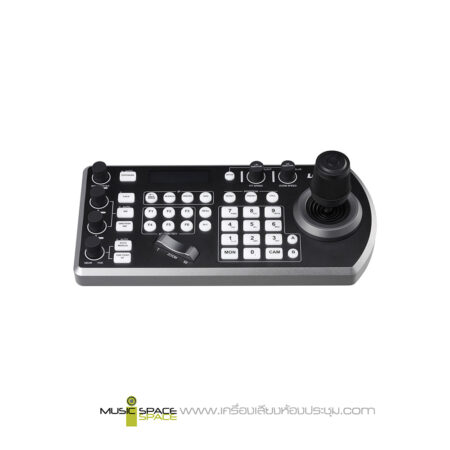

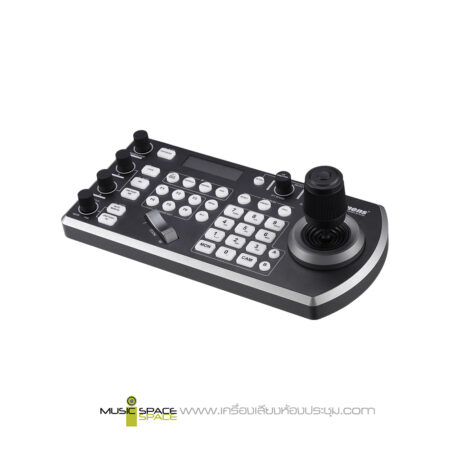

Lumens VS-KB30 Compact IP PTZ Video Camera Joystick Controller

เครื่องควบคุมกล้องวีดีโอ Lumens VS-KB30 Compact IP PTZ Video Camera, Joystick for Pan / Tilt / Zoom, Quick access control of exposure, white balance, focus, PTZ speed, and 6 user- assignable keys, Control up to total of 255 IP cameras on a single network with PoE support

The VS-KB30 is an ergonomic and compact camera controller supports Sony VISCA protocol, VISCA over IP, Pelco P&D, and NDI® |HX making it easier to discover, connect, and control PTZ cameras.

This camera controller features quick access functionality that allows instant adjustments to exposure, white balance, focus, PTZ speed and six assigned keys for frequently-needed camera functions.

The camera controller is equipped with the RS-232C/RS-422/Ethernet communication interfaces with PoE for the transmission of power and control in “one-cable”. The VS-KB30 is applicable for education, broadcasting, events, house of worship and other environments.

Features:

  • Joystick for Pan / Tilt / Zoom
  • Quick access control of exposure, white balance, focus, PTZ speed, and 6 user- assignable keys
  • The RS-232C / RS-422 x2 / Ethernet control interfaces allow long-distance communication
  • Protocol by VISCA, VISCA Over IP, and Pelco P&D
  • Control up to total of 255 IP cameras on a single network with PoE support
  • Support NDI®|HX, fully compatible with NDI®|HX PTZ camera, including Lumens, NewTek and Marshall
Share This:
Category: .  Tag: .

Specifications

Comm. Interface RS-232, RS-422 x2 , Ethernet
Display LCD
Joystick 4-axis (Pan / Tilt / Zoom)
Speed Control x2 (2 Knobs)
Zoom Control x1 (Zoom Seesaw Lever)
Gain Control R / B Gain (2 Knobs)
Assign Button x6
Keypad with backlight Yes
Protocol VISCA, Pelco P&D, VISCA Over IP
Baud Rate 2400, 4800, 9600, 19200, 38400 bps
Camera Address 1~255
Preset 255
Power DC12V / PoE
Power Consumption PoE : 5W
DC In : 5W
Dimensions 278 x 132 x 99.5 mm
Weight 1kg
Share This:

Downloads

ดาวน์โหลด Data Sheet Lumens VS-KB30

ดาวน์โหลด Installation Manual Lumens VS-KB30
