จอมัลติมีเดียกระดานอัจฉริยะ 98″ Newline TT-9821Q Interactive Display

จอแสดงผล Interactive หน้าจอสัมผัสอัจฉริยะ Newline Q-Series TT-9821Q ขนาดจอ 98 นิ้ว, Secure Android 11 OS with User Profiles, Newline App Store, Better Connectivity with Wi-Fi 6, Embedded 20W Speakers

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿599,900.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

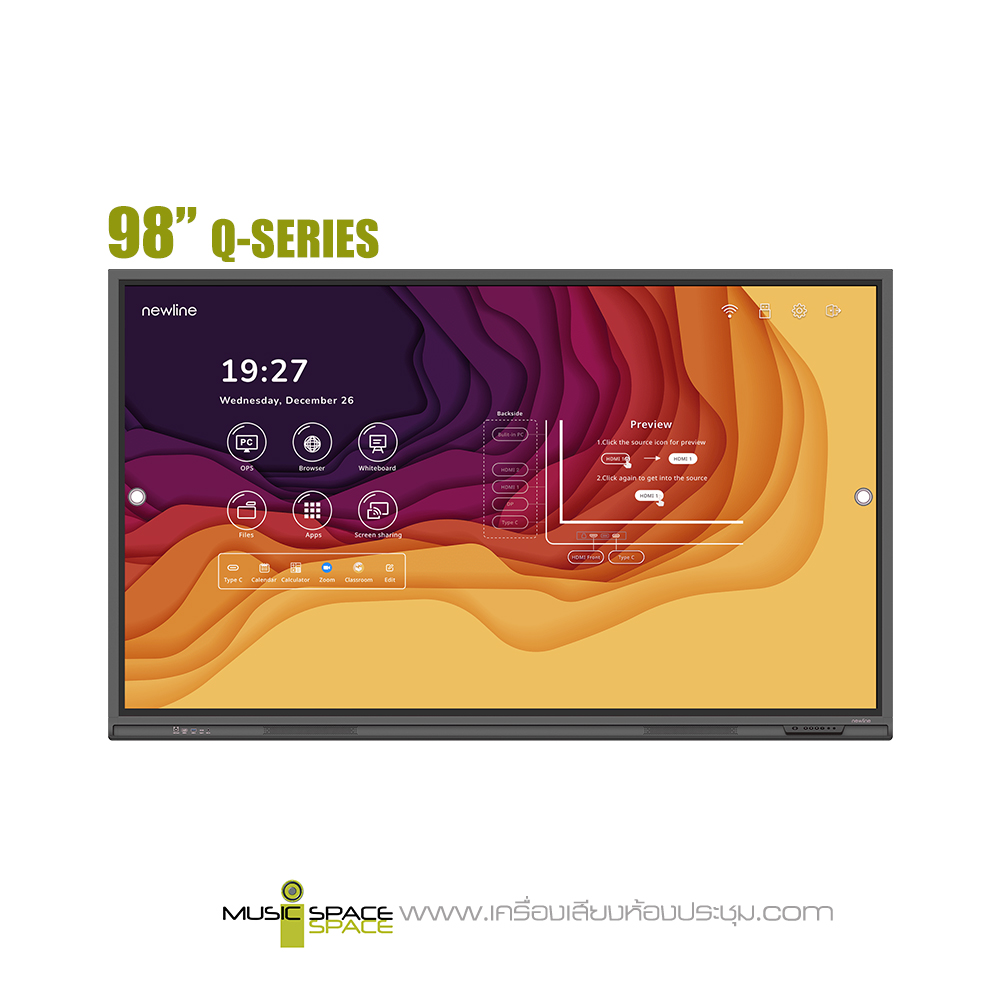

Newline Q-Series TT-9821Q 98″ 4K UHD Interactive Multi-Touch LED Display

จอแสดงผล Interactive หน้าจอสัมผัสอัจฉริยะ Newline Q-Series TT-9821Q ขนาดจอ 98 นิ้ว, Secure Android 11 OS with User Profiles, Newline App Store, Better Connectivity with Wi-Fi 6, Embedded 20W Speakers

The NewLine Q-Series 4K LED Multi-Touch Display is a revolutionary all in one interactive board solution for teachers and students. With super-fast USB-C connectivity, teachers can connect the Q Series to any desktop computer or laptop and dive into lessons on the crystal clear 4K LED screen.

An Android 11 OS with user profiles makes switching between users easy and fast. Choose from over 100 apps on the Newline App Store and download them right to the panel. The Q Series is compatible with all devices and software. A built in WiFi 6 module offers amazing connectivity and allows you to securely connect up to 30 devices.

The Q Series Display utilizes IR touch technology with up to 20 touch points. Write smoothly with a stylus or a finger. Choose from 55″, 65″, 75″, 86″, or 98″ displays. An antimicrobial surface guards the Q Series from bacteria and germs.

The Q Series comes equipped with 20w speakers for clear sound that reaches the back of the classroom. Need more sound? Equip a Bluetooth speaker. A 178 degree viewing angle ensures that all students in the room can see. This interactive board is compatible with an optional 4K conferencing camera.

The NewLine Q-Series 4K LED Multi-Touch Display can be mounted on a wall as well as mounted via other Newline mounting stands available from MyWhiteboards.

Features:

  • Active Screen Size 98″
  • USB Type-C with 65W Power
  • Antimicrobial Surface
  • Secure Android 11 OS with User Profiles
  • Newline App Store
  • Better Connectivity with Wi-Fi 6
  • Embedded 20W Speakers
  • Camera Module Capable
  • Compatible with all Devices

Specifications

Display
Active Screen Size 98″
Backlight LED
Display Area (In) 85.1 x 48.1 in
Display Ratio 16:09
Resolution (In Pixels) 3840 X 2160 (4K)
Colors 1.07 Billion (8 Bit)
Brightness After Glass
Center Brightness 400 Cd/M²
Contrast Ratio Dynamic 4000:1
Static: By Oc Spec
Response Time 8 ms
Max Response Time 10 ms
Viewing Angle 178°
Lifetime Hours 50,000 Hours
Power
Working Voltage Ac100-240v Max 5.5a
Max Power Consumption ≤750w
Eco Power Consumption <270w
Standby Power Consumption <0.5w
Energy Star® Compliant Yes
Touch
Touch Solution IR
Anti-Glare + Anti-Fingerprint,
Glass Surface Technology + Antimicrobial Tempered Glass
Transparency 88%±3
Haze By OC Spec
Touch Surface Hardness 7h
Touch Points 20 Point
Touch Screen Writing Tools Stylus Or Finger
Speakers
Position Bottom Front
Rated Impedence
Frequency Response 180hz-20khz When Spl Is -10db
Output S.P.L. 0db~ -10db
Max Power Output (2) 20w
Transportation/Storage
Storage Temperature 14°F – 113°F
Working Temperature 32°F – 104°F
Storage Humidity 0~90%Rh (Non-Condensing)
Working Humidity 20~80%Rh (Non-Condensing)
Mounting Options (Optional) Wall-Mount Or Mobile Stand
Vesa Mount Pattern 600x400mm
Outline Dimensions (In) 88.91 in. x 52.94 in. x 4.8 in.
Packing Dimensions (In) 96.1 x 65.3 x 17.7 in.
Net Weight (Lbs) 187.4 lbs
Gross Weight (Lbs) 220.5 lbs
Embedded Operating System
Soc Chipset Amlogic 311D2
Ram 4gb
Rom 32gb
Android Version Android 11.0
Expandable Storage Up To 64Gb (Sd Card)




Supported Files Formats

Image: Jpeg, BMP, PNG

Video: Mpeg1, Mpeg2, Mpeg4, Sorensonh. 263, H.263, H.264, Hevc/H.265, Mvc, Avs, Avs+, Wmv3, Vc1, Motion Jpeg, Vp8, Vp9, Rv30/Rv40

Audio: MPEG1/2 @LAYER1; @LAYER2; @LAYER3, EAC3, ACC-LC, HEAAC, VORBIS, LPCM, IMA-ADPCM, MS-ADPCM, G711 A/MU-LAW, LBR(COOK), FLAC

Camera Module Optional
I/O Ports


Front Interface

Usb Type-C (Pd 65w) X 1, Hdmi 2.0 X 1, Usb Type-B (Touch) X 1, Usb (3.0) Type-A X 1, Mic In X 1 Hdmi In 2.0 X 2; Displayport 1.2 X 1; Usb Type-B (Touch) X 3; Usb 3.0 Type-C (No Pd) X 1; Usb 3.0 Type-A X 2, Usb 3.0 Type-A To Android X 1, Hdmi Out 2.0 X 1, Rs232 X 1, Rj45 (Gigabit) In X 1, Rj45 (Gigabit) Out X 1, Ops X 1, Spdif X 1,
Rear Interface Audio Line Out X 1
Other Optional Wi-Fi Module Slot
Camera Module (Optional)
Camera Resolution 4k@ 30 Hz /Uhd
Field Of View 120° FOV Lenses
Ir Camera 352 X 352 / 30 Fps
Camera Tile Range 15°

Downloads

ดาวน์โหลด Data Sheet Newline TT-9821Q

ดาวน์โหลด Brochure Newline Q-Series
