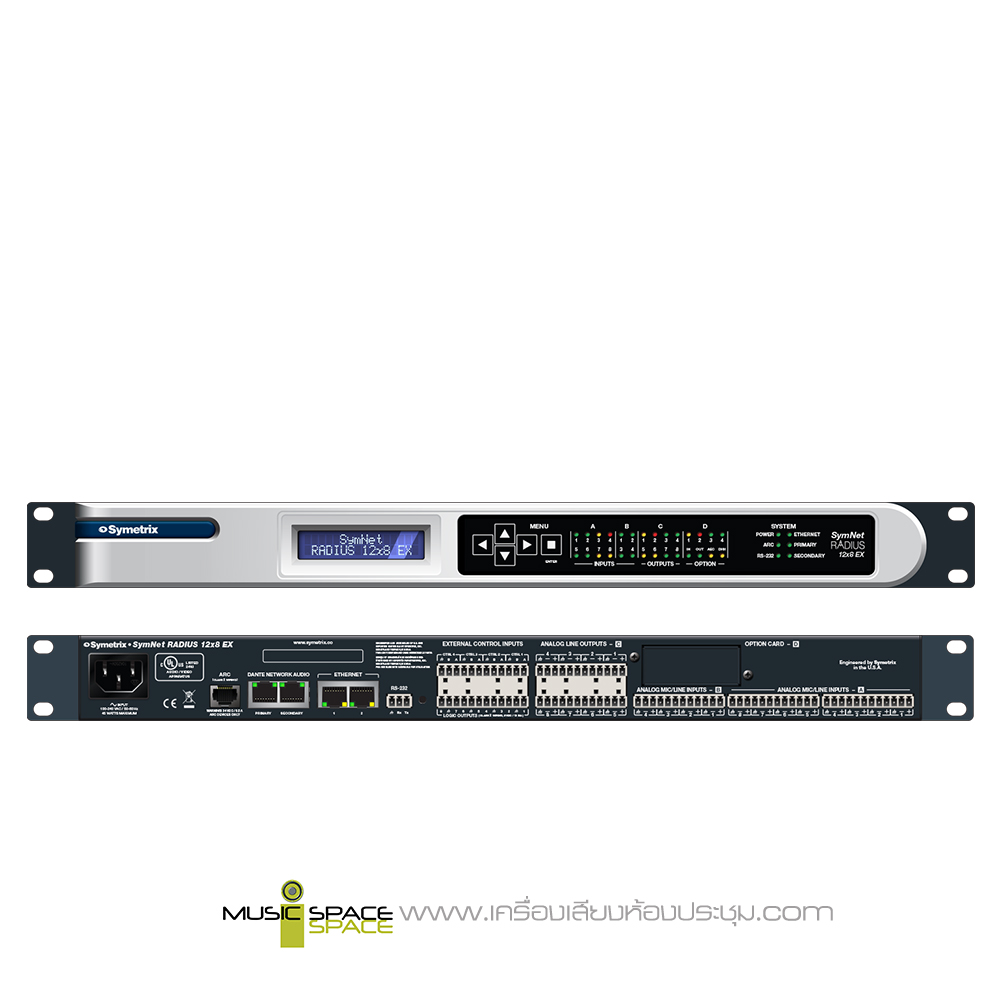

SYMETRIX RADIUS 12X8 EX Dante Scalable DSP

อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX RADIUS 12X8 EX, 12 mic/line inputs, 8 outputs. Configure with SymNet Composer software with over 600 DSP modules.

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿111,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX RADIUS 12X8 EX Dante Scalable DSP 12in/8out

อุปกรณ์ปรับแต่งสัญญาณเสียง SYMETRIX RADIUS 12X8 EX, 12 mic/line inputs, 8 outputs. Configure with SymNet Composer software with over 600 DSP modules.

SymNet Radius 12×8 DSP, providing support for Audinate Dante media networking technology, now incorporates an I/O expansion slot in its latest incarnation, SymNet Radius 12×8 EX.

The new “EX” addition makes it possible for the scope of an existing installation to be easily expanded as requirements change, building upon the 12-input, 8-output format to take the total audio input/output count to 24 within the same 1RU format.

The I/O expansion slot supports all standard optional SymNet audio I/O cards, including analog, digital, AEC, VoIP and telephone. It paves the way for multiple system configurations: for example, a SymNet 4 Channel Analog Input card yields a 16-in, 8-out processor, whilst a SymNet 4 channel analog output card facilitates a 12-in, 12-out set-up.

SymNet Radius 12×8 EX offers a feature-intensive specification that includes a 64×64 channel Dante network audio bus and built-in GPIO, RS-232 and ARC wall panel support offerings for control, alongside free access to Symetrix’ ARC-WEB browser-based user-interface.

For existing users wishing to benefit from an upgrade to the new version, a dedicated Migration Tool enables those with previous designs or work-in-progress using the Radius 12×8 hardware to convert their files to deploy SymNet Radius 12×8 EX hardware without any further modifications or extra work.

Features:

• Twelve mic/line inputs, eight outputs.
• Configure with SymNet Composer software with over 600 DSP modules.
• Embedded 10/100 Ethernet switch for control, embedded gigabit switch for Dante.
• Network audio expansion using Dante protocol over standard IT networks. 64 transmit and 64 receive channels. Ultra low latency.
• User control: Symetrix ARC wall panels, ARC-WEB web app, SymNet SymVue, third-party touch screens.

รายละเอียดสินค้าเพิ่มเติมค่ะ  http://www.symetrix.co/products/open-architecture-dante-scalable-dsp-and-expansion/

Specifications

Processors 1 x Analog Devices SHARC 21489 @ 400 MHz SIMD.
Raw processing capacity 400 MIPS, 1.6 GFLOPS.
Sampling rate 48 kHz, ± 100 ppm.
Frequency response (A/D/A) 20 Hz – 20 kHz, ± 0.5 dB.
Dynamic range (A/D/A) > 114 dB, A-weighted.
Channel separation (A/D/A) > 108 dB @ 1 kHz, +24 dBu.
Latency (A/D/A) 0.88 mS, inputs routed to outputs.
Delay memory 174 mono seconds.
Analog control inputs 0-3.3 VDC.
Recommended external control potentiometer 10k Ohm, linear.
Logic outputs Low (0V) when active, pulled high (5V) when inactive.
Logic output maximum external power supply voltage / current sinking 24 VDC / 50 mA.
Logic output maximum output current 10 mA.
THD + Noise < -85 dB (unweighted); 1 kHz @ +22 dBu with 0 dB gain.
RS-232 accessory serial I/O 57.6 kbaud (default), 8 data bits, 1 stop bit, no parity, no flow control wired straight-through, only pins 2, 3, and 5 required.
RS-485 serial I/O 38.4 kbaud (default) 8 data bits, 1 stop bit, no parity, no flow control. May be broken out of ARC port.
Ethernet Cable Standard CAT5, maximum device to device length = 100 meters.
Dante Cable Standard CAT6, maximum device to device length = 100 meters.
ARC Cable Standard CAT5, distance dependent upon load and number of devices.
Maximum stored presets 1000.

Analog Inputs

Connectors 3.81 mm terminal blocks.
Number of inputs Twelve (12) switchable balanced mic or line level.
Nominal input level +4 dBu with 20 dB of headroom.
Maximum input level +23 dBu.
Mic pre-amp gain 0, 11.8, 24, 44 or 54 dB switchable with ± 24 dB trim.
Mic pre-amp EIN < -127 dB with 150 Ohm source impedance.
CMRR > 76 dB @ 1 kHz, unity gain.
Input impedance 8 k Ohms balanced, 4 k Ohms unbalanced.
Phantom power (per input) +48 VDC @ 10 mA maximum.
Dynamic range > 115 dB, A-weighted.
THD + Noise < -94 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
Latency 0.28 mS.

Analog Outputs

Connectors 3.81 mm terminal blocks.
Number of outputs Eight (8) balanced line level.
Nominal output level +4 dBu with 20 dB of headroom.
Maximum output level +24 dBu (+22.8 dBu into a 2 k Ohm minimum load).
Output impedance 300 Ohms balanced, 150 Ohms unbalanced.
Dynamic range > 117 dB, A-weighted.
THD + Noise < -95 dB, unweighted; 1 kHz @ +22 dBu with 0 dB gain.
Latency 0.60 mS.

Mechanical Data

Space Required 1U (WDH: 18.91 in. x 9.5 in. x 1.72 in. / 48.02 cm x 24.13 cm x 4.37 cm). Depth does not include connector allowance. Allow at least 3 inch additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections.
Electrical 100-240 VAC, 50/60 Hz, 45 Watts maximum universal input. No line voltage switching required.
Ventilation Maximum recommended ambient operating temperature is 30 C / 86 F. Ensure that the left and right equipment sides are unobstructed (5.08 cm, 2 in. minimum clearance). The ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths, curtains, etc.
Shipping Weight 13 lbs. (5.9 kg).
Certifications or Compliance UL 60065, cUL 60065, IEC 60065, EN 55103-1, EN 55103-2, FCC Part 15, RoHS.

Downloads

ดาวน์โหลด Software & All Documents SYMETRIX RADIUS 12X8 EX

ดาวน์โหลด Data Sheet SYMETRIX RADIUS 12X8 EX
