แบตเตอรี่ชุดประชุมไร้สาย TELEVIC Confidea BP G4 Battery Pack

แบตเตอรี่สำหรับฐานไมค์ประชุมแบบไร้สาย TELEVIC Confidea FLEX G4, Lithium-ion rechargeable, สามารถใช้งานได้นาน 12 ชั่วโมงต่อการชารจ์เต็ม 1 ครั้ง, LED bar for capacity and status indication, Quick charge to 50% (45 min)

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿8,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

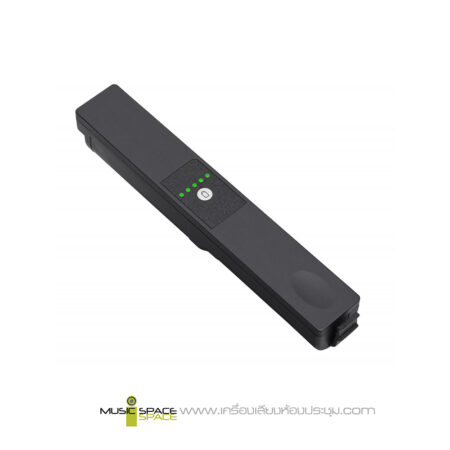

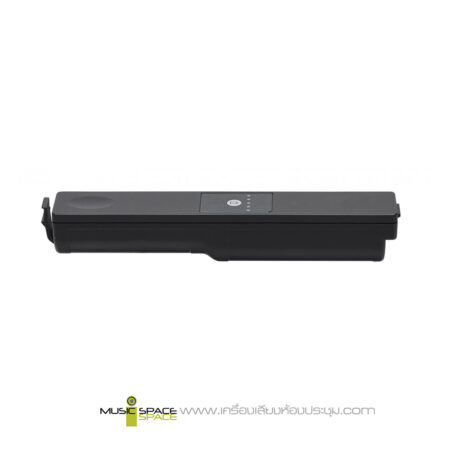

TELEVIC Confidea BP G4 Battery Pack

แบตเตอรี่สำหรับฐานไมค์ประชุมแบบไร้สาย TELEVIC Confidea FLEX G4, Lithium-ion rechargeable, สามารถใช้งานได้นาน 12 ชั่วโมงต่อการชารจ์เต็ม 1 ครั้ง, LED bar for capacity and status indication, Quick charge to 50% (45 min)

TELEVIC Confidea BP G4  is the high capacity Lithium-ion rechargeable battery pack provides power to the wireless Confidea FLEX units. Lithium-ion rechargeable cells have a long lifespan as they do not have charging degradation issues typically associated with other rechargeable battery types.

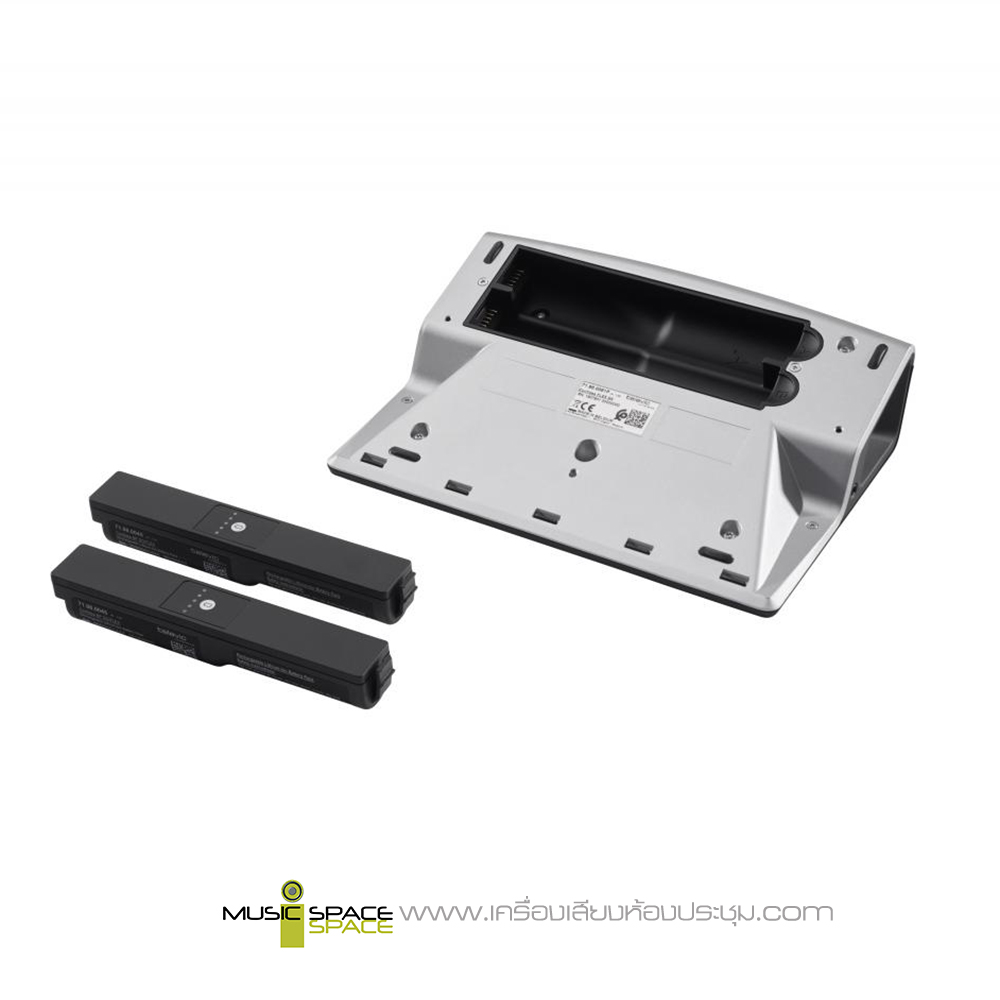

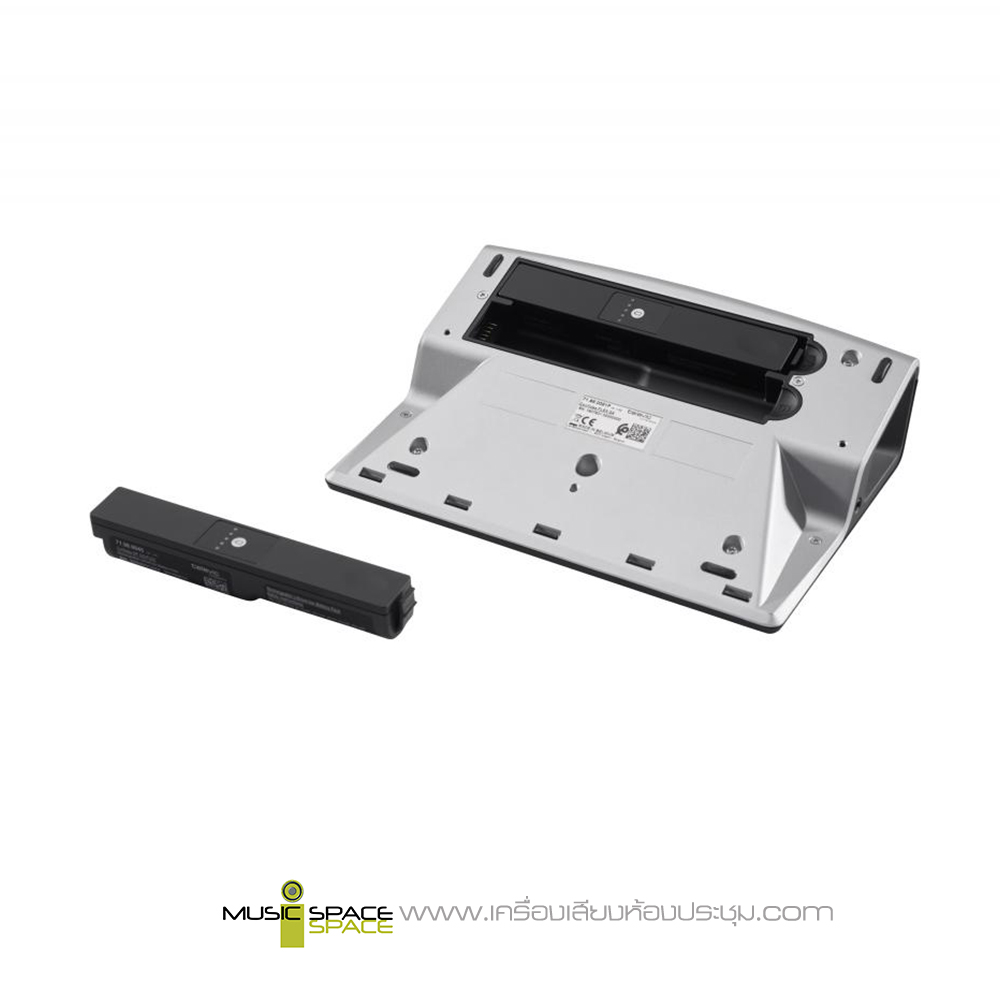

Fully charging an empty battery takes about 2 hours and guarantees an autonomy of 12 hours for typical usage with a Confidea FLEX G4 unit. The units have two battery compartements. What’s more, the battery pack’s quick charge properties allows you to charge to 50% after just 45 min. Reaching even 65% within 1 hour.

The battery packs can be charged in the Confidea CHT G4 charging tray (71.98.0046), a 1U rack mountable device which accommodates up to 10 packs at once. At the bottom of the battery pack, a test button indicates the remaining charge time. Simply push the button to visualize the remaining charge of the battery.

A total of five LEDs are representing the remaining capacity, each represening 20% charge. The battery has a protection against short circuit, overcharge and overheating. A total of 500 full charging cycles is guaranteed.

The battery status of all units connected to the access point can be monitored at any time from the Confero webpage.

Features:

  • Battery status LED
  • Charging LED
  • Push-to-test button
  • LED bar for capacity and status indication
  • Quick charge to 50% (45 min)

Specifications

Mechanical
Material PC/ABS
Color Black Matt, RAL9011
Size (W X H X D) 150 × 26,3 × 22,8 Mm
5.90 X 1.04 X 0.90 In
Size Packed (Mm) 165 X 35 X 55 Mm
6.50 X 1.18 X 2.17 In
Weight 130 G
4.59 Oz
Weight Packed (G) 154 Gr
5.43 Oz
Electrical
Capacity 3100 Mah
Autonomy FLEX : 12h
Max/Min Output Voltage 8.4/6 VDC
Nominal Output Voltage 7.2 VDC
Charging Cycles 500 Full Charges
Charging Time
(Empty To 100%)
2 Hours
Quick Charge To 50% 45 Min
Environmental
Charging Temperature 5 – 45 °C
Operating Temperature -10 – 60 °C
Storage Temperature -20 – 60°C

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea-G4
