ชุดไมค์ประชุมไร้สาย TELEVIC Confidea WAP G4 Wireless Access Point

เครื่องรับ-ส่งสัญญานสำหรับชุดไมค์ประชุมไร้สาย TELEVIC Confidea WAP G4, Compact and discreet design, Multifunctional mounting plate, Built-in microphone stand screw mounting option ideal, for mobile setups, WiFi5

ราคาไม่รวมภาษีมูลค่าเพิ่ม…..

฿154,400.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

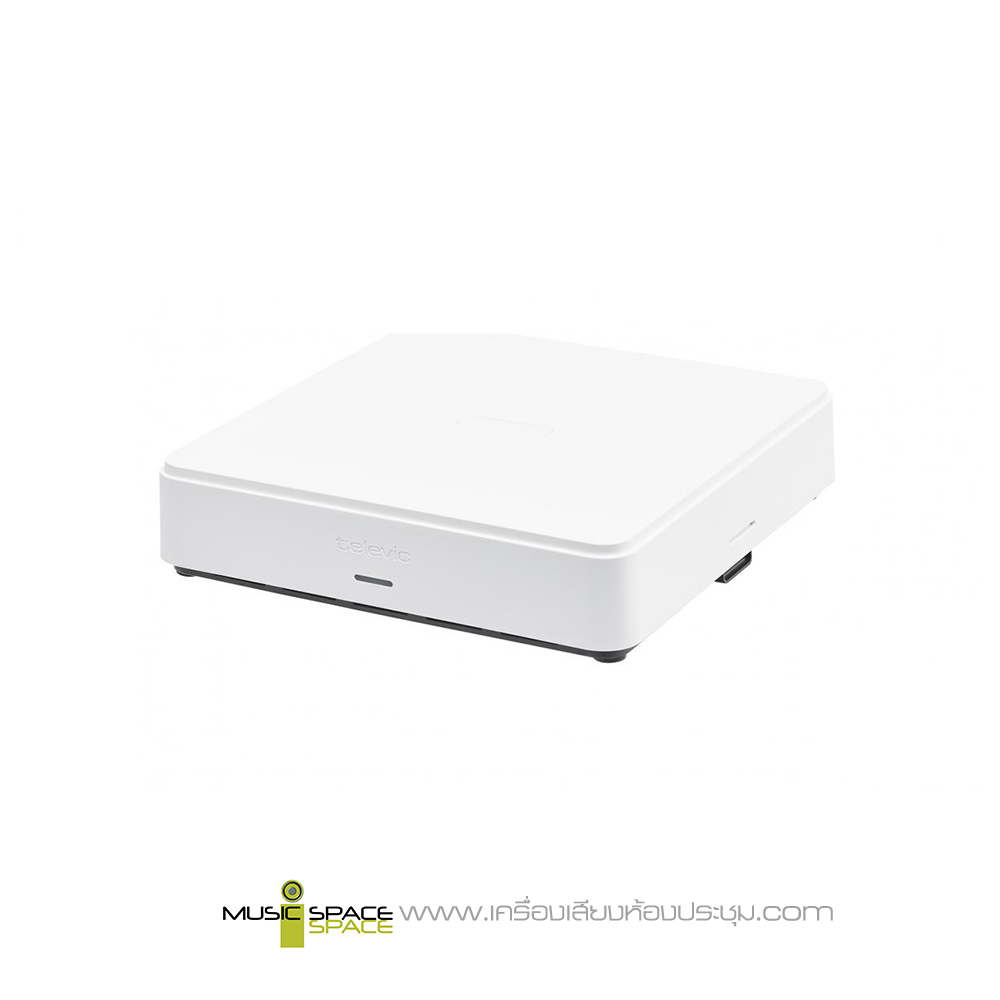

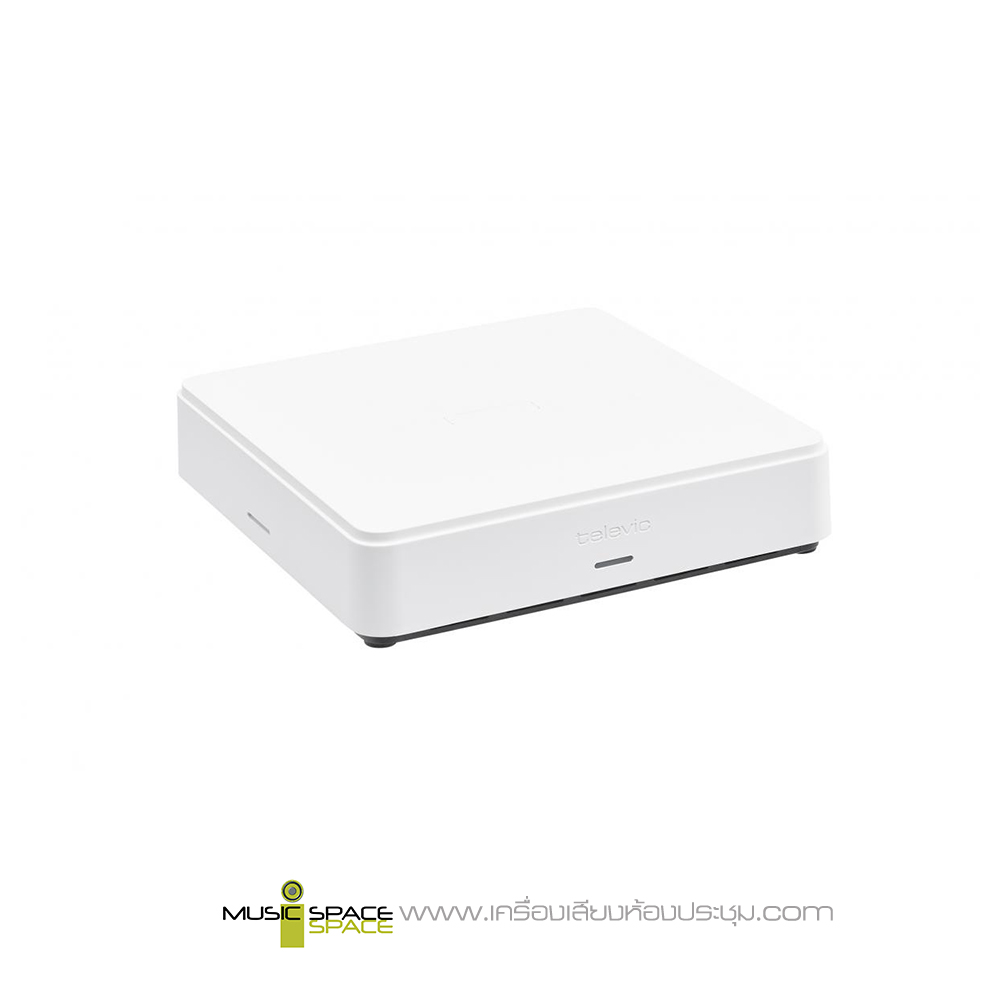

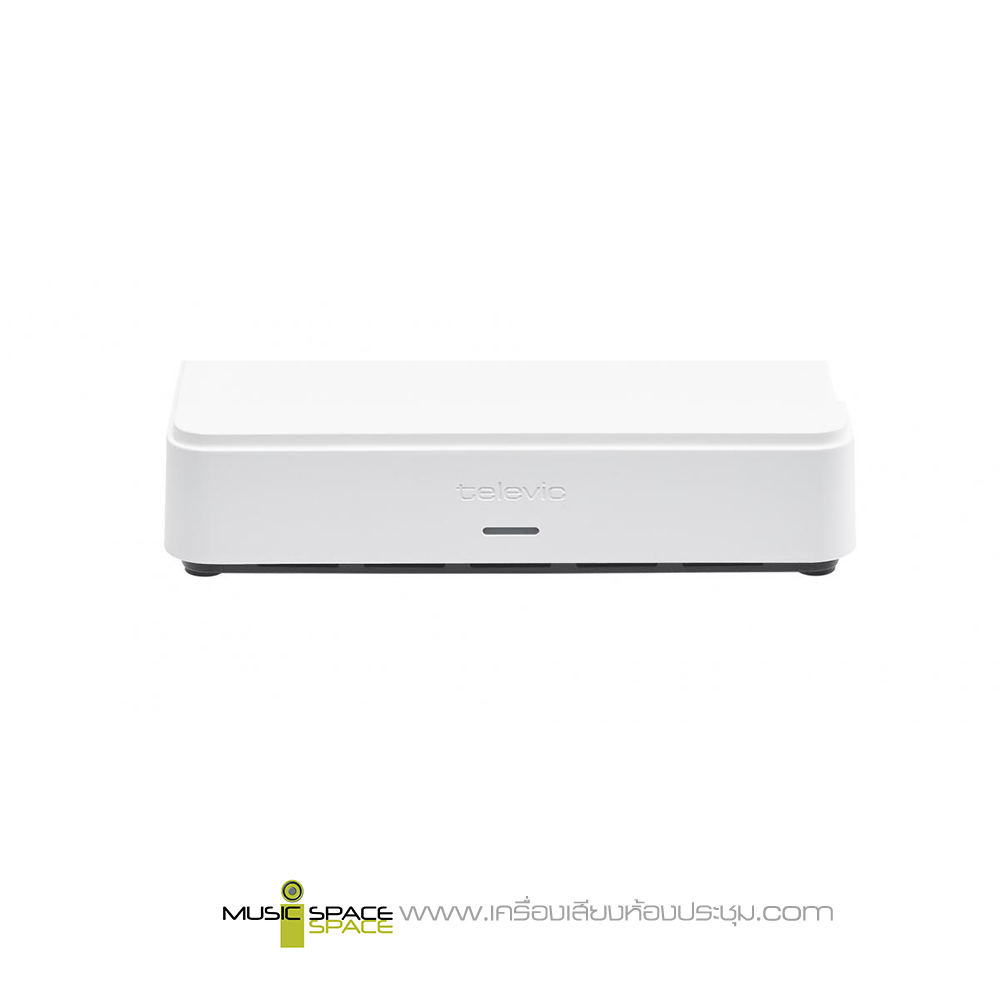

TELEVIC Confidea WAP G4 Wireless Access Point

เครื่องรับ-ส่งสัญญานสำหรับชุดไมค์ประชุมไร้สาย TELEVIC Confidea WAP G4, Compact and discreet design, Multifunctional mounting plate, Built-in microphone stand screw mounting option ideal, for mobile setups, WiFi5

The compact, discreet yet powerful Confidea G4 access point is the heart of the wireless conference system. The access point has a set of powerful tools to define the optimal use of channels within the RF spectrum and to keep the link with the wireless conference units secure and robust.

The built-in web-based software makes use of step by step wizards to guide the installer through the configuration of the system. By adding a license a set of powerful meeting management tools is unlocked offering meeting moderation, voting, participant identification and reporting capabilities.

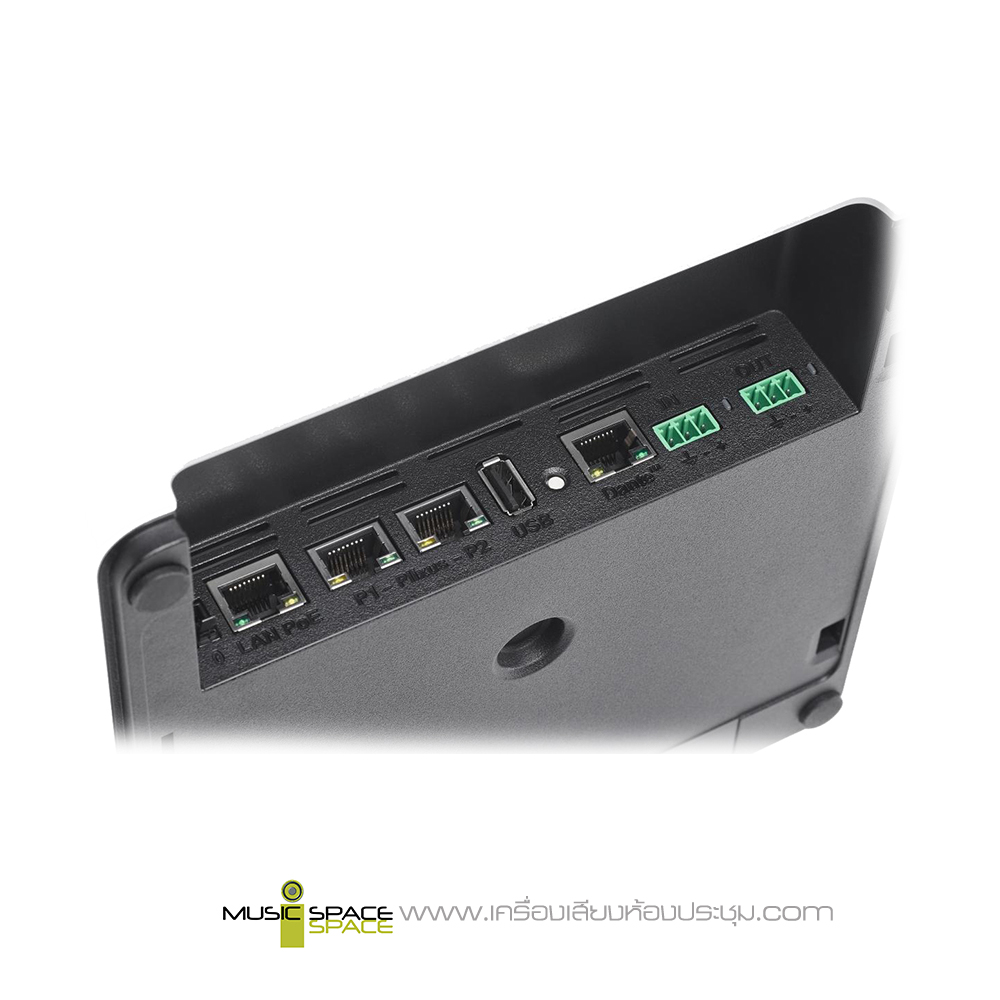

Furthermore the access point has a wealth of connectivity options. Powering the device can be done via a standard PoE+ switch or power injector. Both analog and digital (Dante) interfaces are available to interfacing 3rd party audio systems like presentation systems, room audio systems or hybrid meeting platforms like zoom, teams, etc.

Easy recording capabilities are provided with options to record on internal or external storage. The combination of all these capabilities result in an innovative wireless conference solution that feels at home in any meeting environment.

The Televic Confidea G4 wireless conference system ensures reliable and secure communication without interruptions resulting in worry-free meetings.

Features:

  • WiFi5
  • Clean channel manager to define the operating
  • channel of the system
  • DFS radar detection and avoidance
  • Co-existance with other WiFi systems
  • Possibility to operate in upper channels of 5 GHz
  • range, typically underserved by other wireless systems
  • Predictive error concealment algorithm masking
  • the effect of lost or damaged packets resulting in
  • continuous audio
  • Self healing channel switching seamlessly switches to
  • another channel when interference encountered or
  • radar is detected on DFS channel
  • Spacial diversity and MIMO antenna design for
  • optimized signal reception
  • Omni-directional range of 40m
Share This:

Specifications

Mechanical
Material ABS
Color White
Size (W X H X D) 191 × 45 × 191 Mm
7.52 X 1.77 X 7.52 In
Size Packed (W X H X D) 233 × 46 × 233 Mm
9.17 X 1.81 X 7.52 In
Weight 680 G
1.50 Lb
Weight Packed 825 G
1.82 Lb
Mounting Type Wall, Ceiling, Electrical Box, Microphone Stand
Electrical
Supply Type Poe+, 802.3at, Type 2 PD
Typical Power Consumption 15 W
Max Power Consumption 24 W
System
Encryption Type WPA2 Enterprise
Max Number Of Units 250
Max Number Of Open Microphones 8
Max Number Of Interpretation Channels (*) 8
Latency (Microphone To WAP – WAP To Loudspeaker) 16 Ms
Audio 48 Khz / 24 Bit
Frequency Response 20 – 20 Khz
THD (22 – 22000 Hz) < 0.02 %
Dynamic Range > 90 Db
Signal To Noise Ratio > 95 Dba
RF
Wifi Standard Wifi5, IEEE802.11ac
RF Frequency Bands 2.4 Ghz / 5 Ghz
ERP (Equivalent Isotropically Radiated Power) < 24 Dbm
Range 40 M
Antenna
No Of Antennas 5
LAN
Interface Ethernet
Link Speed 100 Mbps
Network Addressing DHCP Or Manual
Cable Type > Cat5e (Shielded)
Connector RJ45
Connector LED Green : Link
Orange : Link Activity
Cable Length 100 M (Max)
Dante
Interface Gigabit Ethernet
Link Speed 1000 Mbps
Digital Audio Dante / AES67
Number Of Channels 8 X 8
Cable Type > Cat5e (Shielded / Unshielded)
Connector RJ45
Connector LED Green : Link Orange : Link Activity
Cable Length 100 M (Max)
Plixus
Interface Ethernet
Link Speed 100 Mbps
Power 48 VDC
Continuous Output Current 2A
Cable Type > Cat5e (Shielded)
Connector RJ45
Connector LED Green : Status
Orange : Link Speed
Cable Length 80 M (Max)
Recording
Format MP3
Quality 64, 128, 196, 256 Kbps
Maximum Size 500 GB
USB
Interface USB2.0
Format NTFS
Maximum Size 500 GB
Internal Storage
Size 4 GB
Audio Input
Nominal Input Level 0 Dbv
Max Input Level +10 Dbv
Frequency Response 20 – 20 Khz
THD @ Nominal Level (22 – 22 Khz) < 0,02 %
Dynamic Range > 90 Db
SNR > 95 Dba
Input Impedance > 10 Kω
Configuration Balanced
Connector Type 3 Pin
Phoenix Mini Combicon
Audio Output
Nominal Output Level 0 Dbv
Max Input Level + 10 Dbv
Frequency Response 20 – 20000 Hz
THD @ Nominal Level (22 – 22000Hz) < 0,02 %
Dynamic Range > 90 Db
Load Impedance > 600 Ω
Configuration Balanced
Connector Type 3 Pin
Phoenix Mini Combicon
Environment
Operating Temperature 0 – 45°C
Storage And Transport Temperature -20 – 60°C
Humidity <95%, >5%
Share This:

Downloads

ดาวน์โหลด Data Sheet TELEVIC Confidea-G4
