เครื่องรับสัญญาณอินฟราเรด TOA IR-500R Infrared Wireless Receiver

ตัวรับสัญญาณไร้สาย อินฟราเรด TOA IR-500R แบบยึดผนังรับสัญญาณในแนวนอน For TOA IR Wireless Series, 49′ Range Line of Sight, Sends IR Signal to Tuner

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿7,735.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

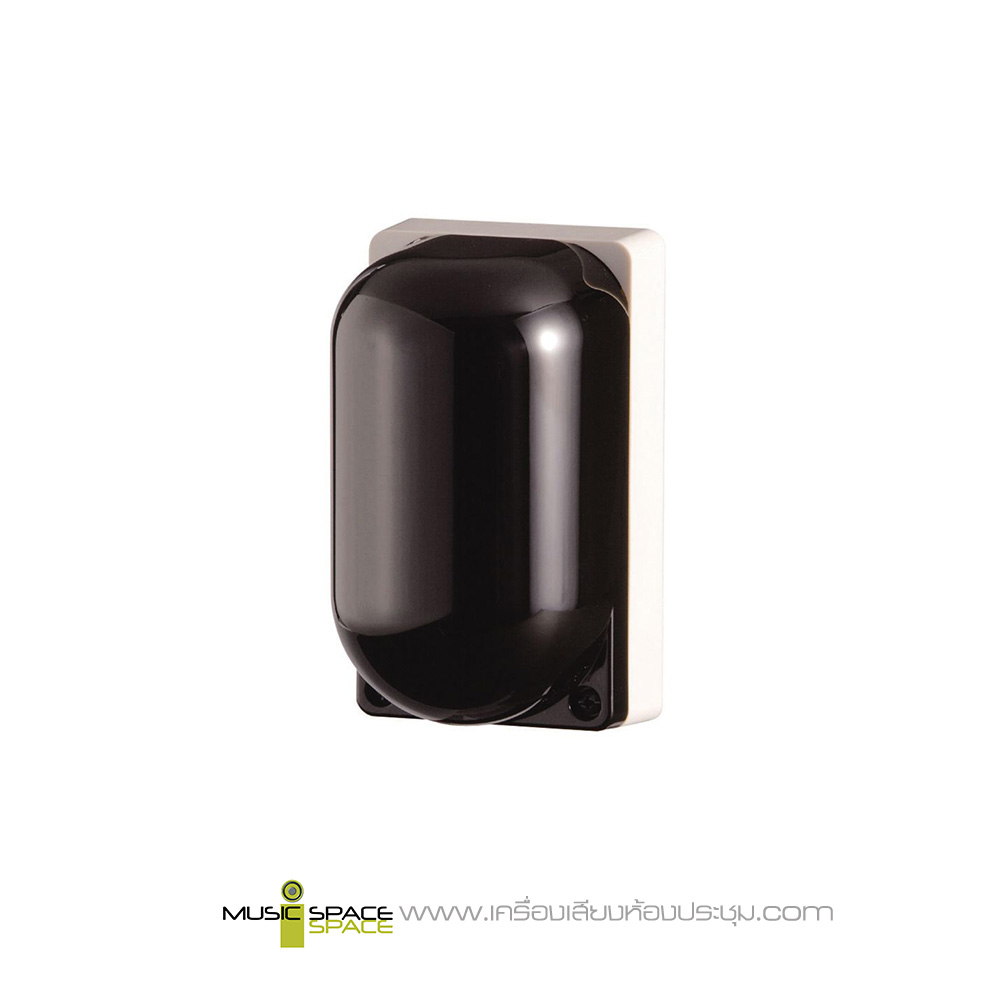

TOA IR-500R Infrared Wireless Receiver (Wall/Electrical Box)

ตัวรับสัญญาณไร้สาย อินฟราเรด TOA IR-500R แบบยึดผนังรับสัญญาณในแนวนอน For TOA IR Wireless Series, 49′ Range Line of Sight, Sends IR Signal to Tuner, Mounts Into Electrical Wall Box, Adjustable Infrared Angle

The IR-500R Infrared Wireless Receiver is designed for use with the IR-702T Infrared Wireless Tuner.

It can be mounted to a wall or an electrical box.

Features:

  • For TOA IR Wireless Series
  • 49′ Range Line of Sight
  • Sends IR Signal to Tuner
  • Mounts Into Electrical Wall Box
  • Adjustable Infrared Angle

Specifications

Power Source 24 V DC (supplied from the IR-702T)
Current Consumption Max. 40 mA

Infrared Detector

Wavelength 870 nm
Carrier Frequency Channel A: 3.100 MHz
Channel B: 3.350 MHz
Reception Angle Vertical: 80゜ (up to 30゜ movable downward)
Horizontal: 80゜ (up to 30゜ movable left or right)
Communication Area Approx. 15 m (50 ft) in a space without any obstacles



Connection Terminal 75 Ω, BNC jack
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Filter section: Polycarbonate, optical cut filter
Base: ABS resin, off-white
Dimensions 70 (W) × 120 (H) × 72 (D) mm (2.76″ × 4.72″ × 2.83″)
Weight 220 g (0.49 lb) (unit only)

Downloads

ดาวน์โหลด Data Sheet TOA IR-500R
