เครื่องควบคุมไมค์ประชุมไร้สาย TOA TS-820RC Central Unit

เครื่องควบคุมชุดไมค์ประชุมไร้สายแบบอินฟาเรด TOA TS-820RC สามารถบันทึกเสียงผ่าน  USB and internal memory, มีระบบป้องกันเสียง Feedback, Up to 64 conference unit controllable, Rack-mountable with MB-TS920 optional bracket

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿52,300.00 ฿44,500.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Product Description

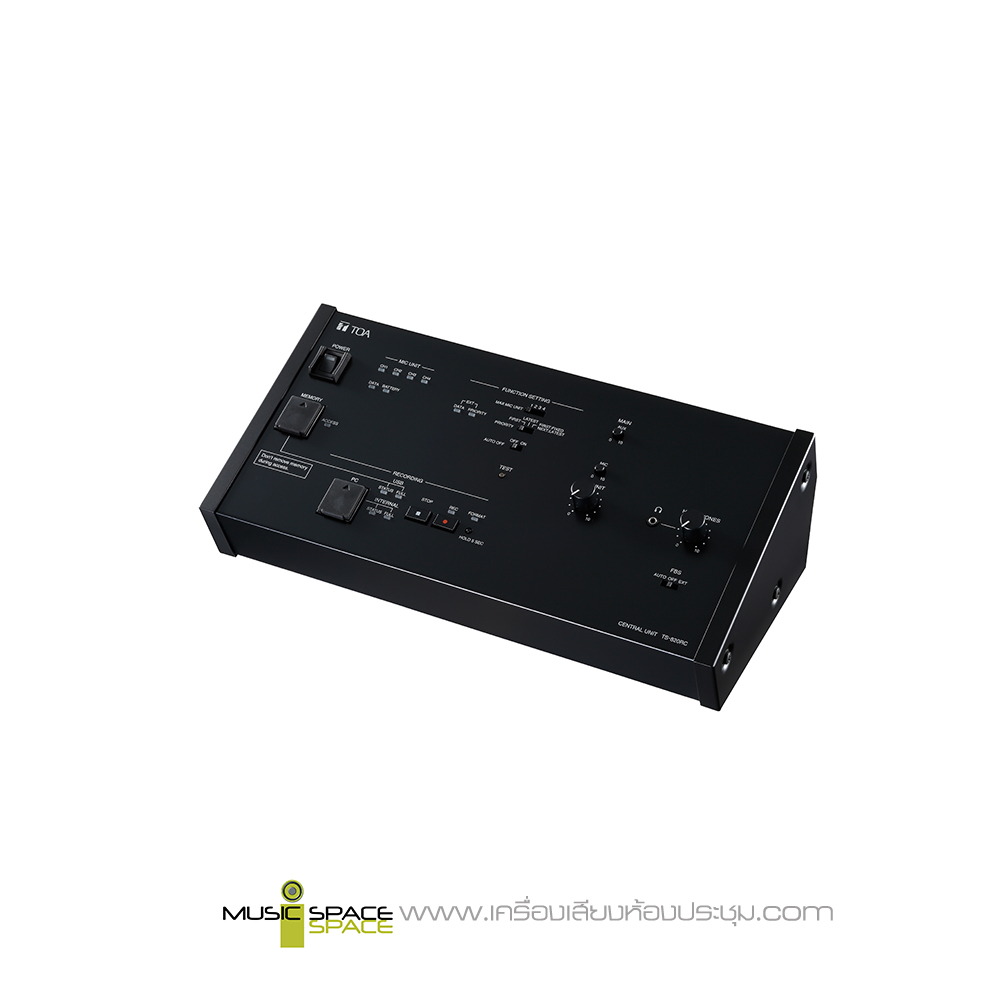

TOA TS-820RC Central Unit with recording function

เครื่องควบคุมชุดไมค์ประชุมไร้สายแบบอินฟาเรด TOA TS-820RC สามารถบันทึกเสียงผ่าน  USB and internal memory, มีระบบป้องกันเสียง Feedback, Up to 64 conference unit controllable, Rack-mountable with MB-TS920 optional bracket

The TS-820RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-820RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified.

The TS-820RC is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory.

The system can be controlled by PC (*1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).(*1) Relevant control software is supplied on a custom-made basis.

Features:

  • Main unit of the system
  • Up to 64 conference unit controllable
  • Mic In, AUX In, Line Out, Rec Out, Headphone monitor out, EQ in/out
  • Recording capability to USB and internal memory
  • Function setting Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor
  • Rack-mountable with MB-TS920 optional bracket
Share This:

Specifications

Power Source 100 – 240 V AC
Power Consumption 72 W
Current Consumption Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)
Carrier Frequency Reception: Audio channel 1: 7.35 MHz
Audio channel 2: 8.10 MHz
Audio channel 3: 8.55 MHz
Audio channel 4: 9.15 MHz
Control channel: 6.45 MHz
Transmission: Audio channel: 1.95 MHz
Input MIC: -60 dB (*2)
AUX: -20 dB (*2)
Output LINE: -10 dB (*2)
REC: -10 dB (*2)
HEADPHONES: φ3.5 mm mini jack (3P:monaural)
Equalizer Input/Output Input: -20 dB (*2)
Output: -20 dB (*2)
Number of ConnectableChairman/Delegate Units 64 units
Number of Connectable Infrared Transmitter/Receiver Units Up to 4 units (with the use of distributor
when they are all TS-905
Infrared Transmitter/Receiver I/O Terminal BNC jacks
External Control Connection Terminal D-sub connector (9P
LED Indicator Audio signal receiving indicators 1 – 4 CH
Record Switch Recording start button
Recording Ports USB-A (for USB memory devices) and USB Mini-B (for PCs)
Recording Function Recordings can be made to a USB memory device (*3) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3)
Sampling frequency: 32 kHz
Function Switch Number of open microphones setting switch: 1/2/3/4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch:
FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST:FIXED NEXT:LATEST (Priority fixed for the first unit
FBS switch: AUTO/OFF/EXT
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Surface-treated steel plate
Weight 2.8 kg (6.17 lb)
Accessory “AC adapter (Cord length: 1.8 m (5.91 ft) DC cord
Option Rack mounting bracket: MB-TS920
Share This:

Downloads

ดาวน์โหลด Brochure TOA TS-820RC
