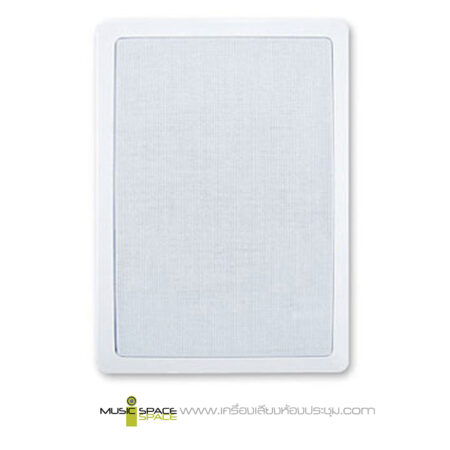

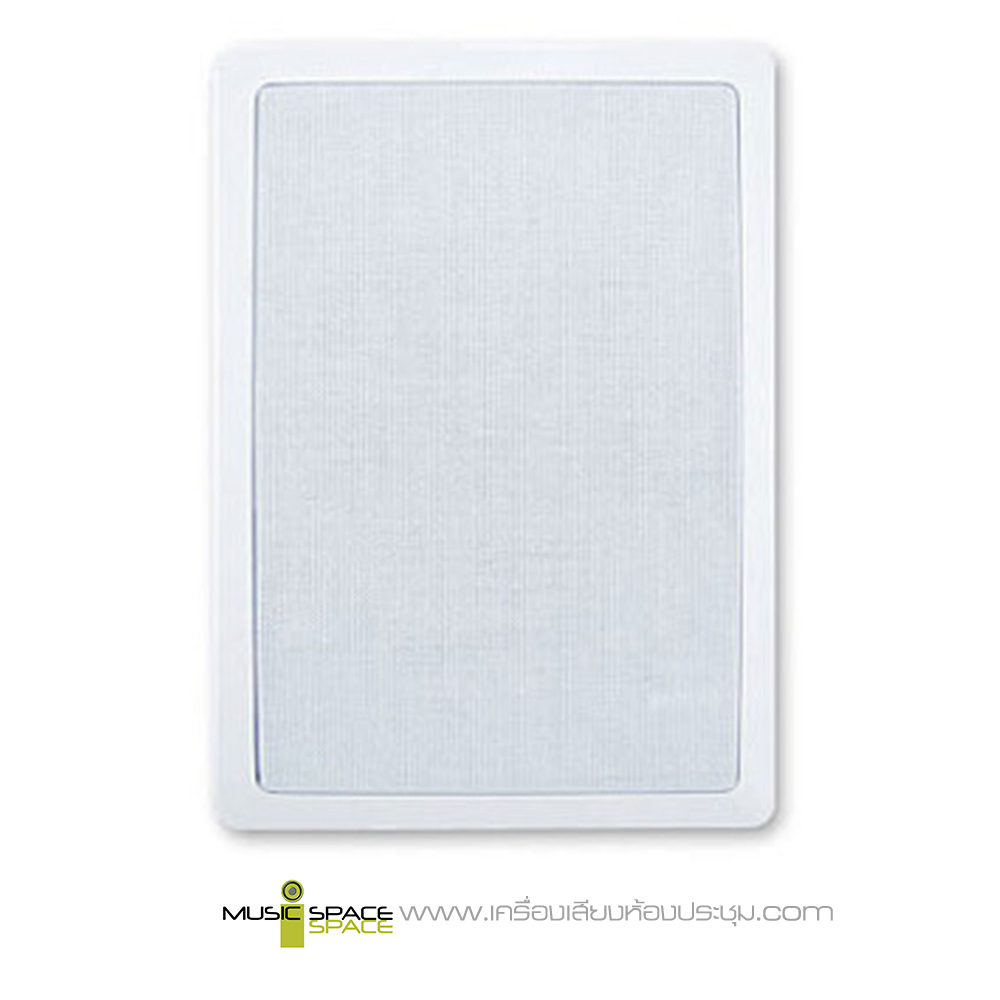

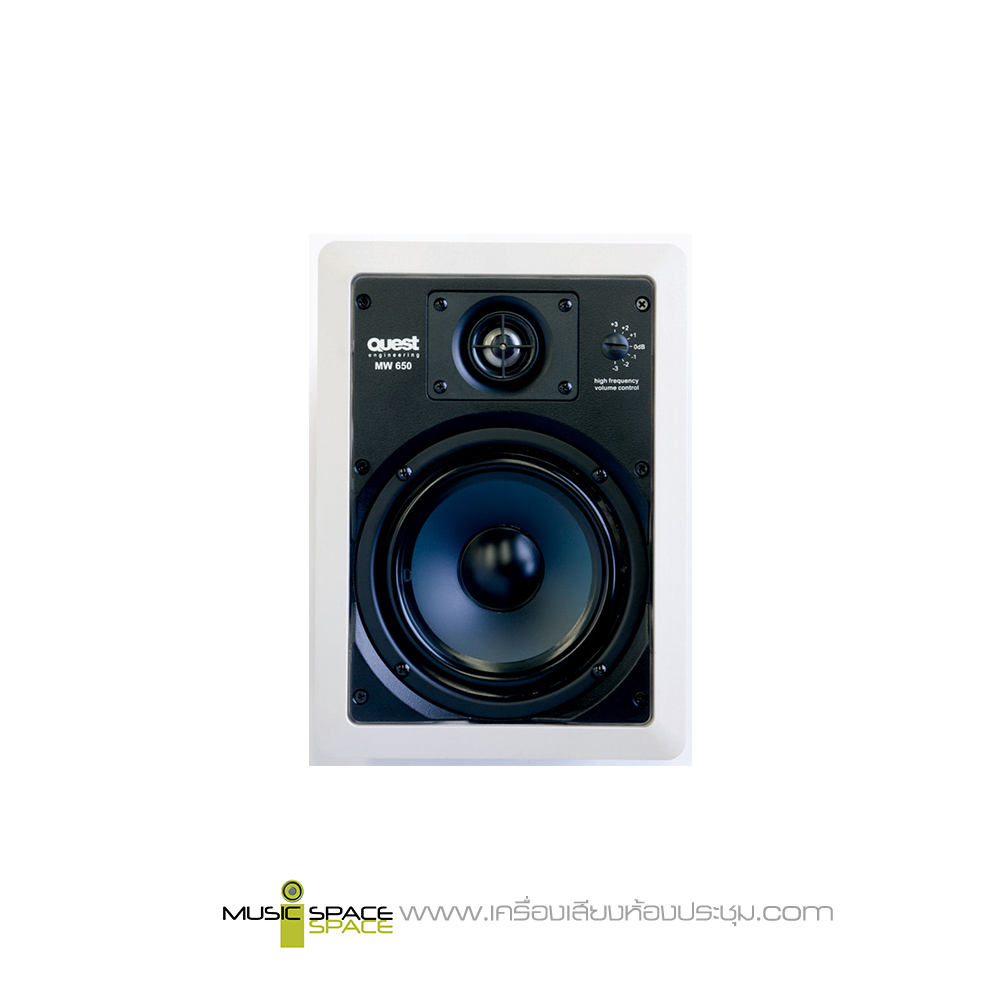

QUEST MW650 Square in-wall Speaker

ลำโพงฝังผนังห้อง QUEST MW650 ขนาด 6.5″ Dome Tweeter 5.4Ω 60W Max Power 120W Inpedance 8Ω Weather-resistant design and construction, Easy Installation: Locking clamps for easy installation, Ultra compact profile for “tight” installation spaces.

ราคาสินค้าเป็นราคาต่อใบ…และไม่รวมภาษีมูลค่าเพิ่ม…..

฿3,900.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Category: Tag:
Share This:

Product Description

QUEST MW650 Square in-wall Speaker

ลำโพงฝังผนังห้อง QUEST MW650 ขนาด 6.5″ Dome Tweeter 5.4Ω 60W Max Power 120W Inpedance 8Ω Weather-resistant design and construction, Easy Installation: Locking clamps for easy installation, Ultra compact profile for “tight” installation spaces.

Not just audiophiles will love the Quest MW series, the MW will be a big hit with architects and installers as well. The MW Series In-Wall Speakers deliver high fidelity full bandwidth sound to all small to mid sized building spaces. High vocal intelligibility is the hallmark of the MW series with no compromise in music reproduction.

Models available include 165 mm (6.5 inch) and 200 mm (8 inch) woofer two way flush mount speakers. The MW series is the no compromise solution, be it in a bar, home, commercial space, or as a distributed or delayed audio fill system supporting a large scale venue PA. For value and ease of installation, the Quest MW series has no equal.

Features:

  • Casing: Casing material is flame retardant PE plastic with a removable aluminium front grille.
  • High Intelligibility: User aim-able titanium diaphragm tweeters ensure ample high frequency coverage.
  • Optimised for vocal intelligibility without loss to full range music reproduction.
  • Weather-resistant design and construction
  • Easy Installation: Locking clamps for easy installation.
  • Ultra compact profile for “tight” installation spaces.
  • Cut out templates, paint mask and comprehensive technical manual included for quick and easy installation.
  • Cross-over: Sophisticated 18 dB slope crossover network designed to optimize the sonic performance plus HF cut and boost and HF protection.
Category: Tag:

Specifications

QUEST MW650

Nominal Power: 60 W
Max Power 120 W
DCR Woofer: 6.5 6.5 W Ω,
Dome Tweeter: 5.4 Ω
Mounting Diameter 185 x 271.5 x 80 mm
Net Weight: 1.85 Kg
Impedance: 8 Ω ±1.2 Ω
Resonant Frequency Range: 60 Hz ± 20%
Frequency Response: Fo~20 KHz ± 4 KHz SPL 86 dB ± 2 dB
Dimensions 209.5 x 307 x 91.5 mm

Downloads

ดาวน์โหลด Manual QUEST MW650
