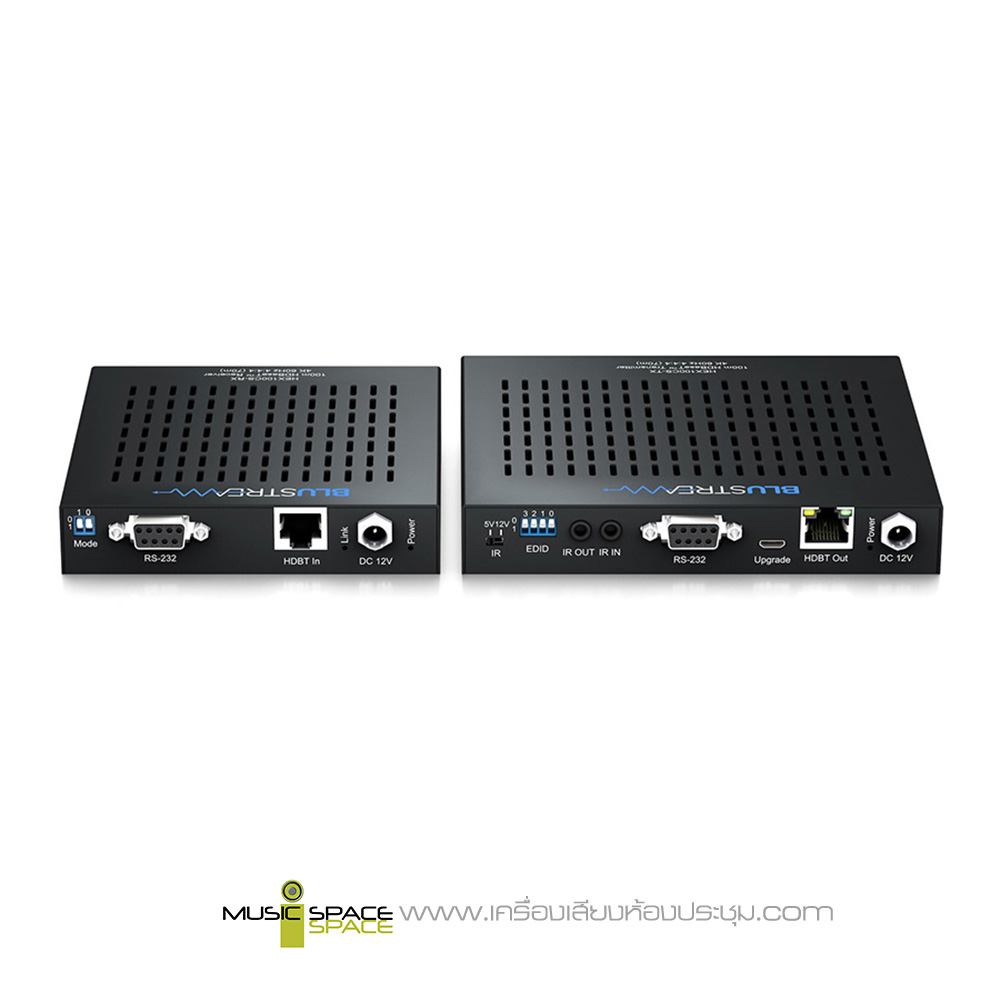

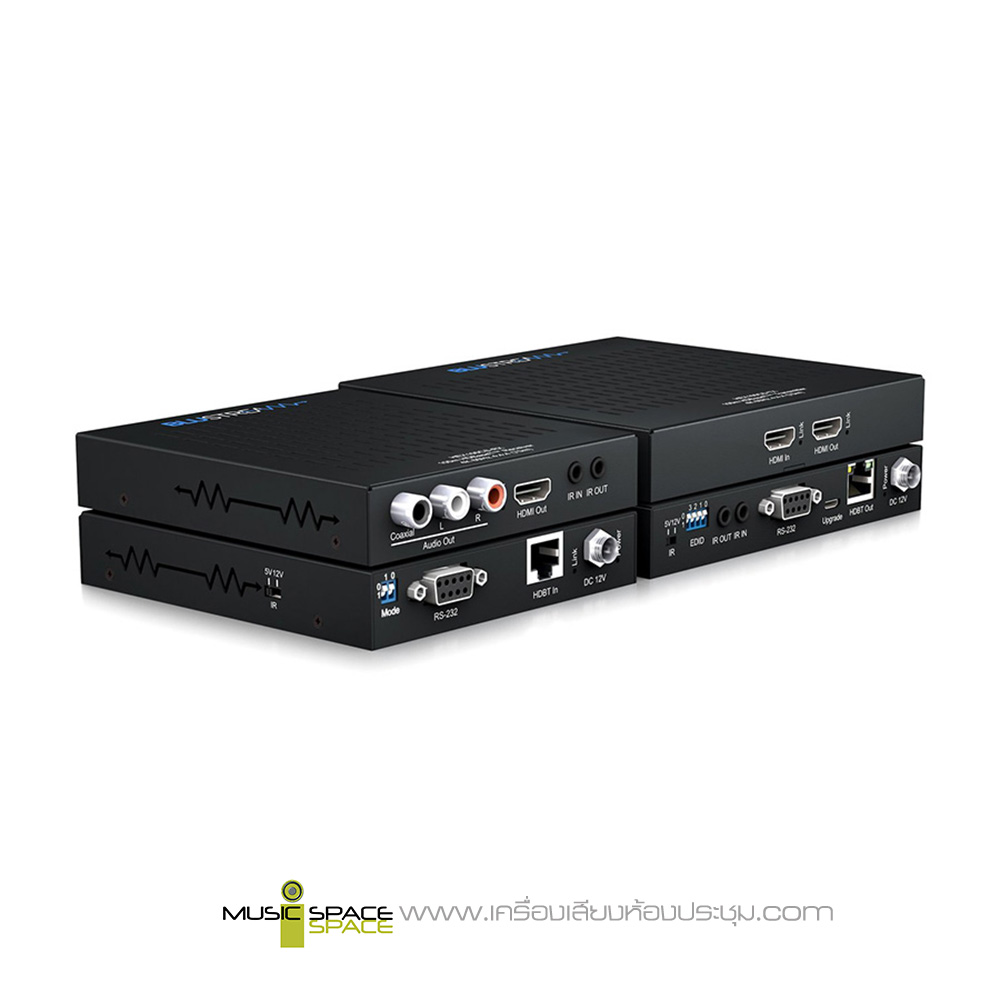

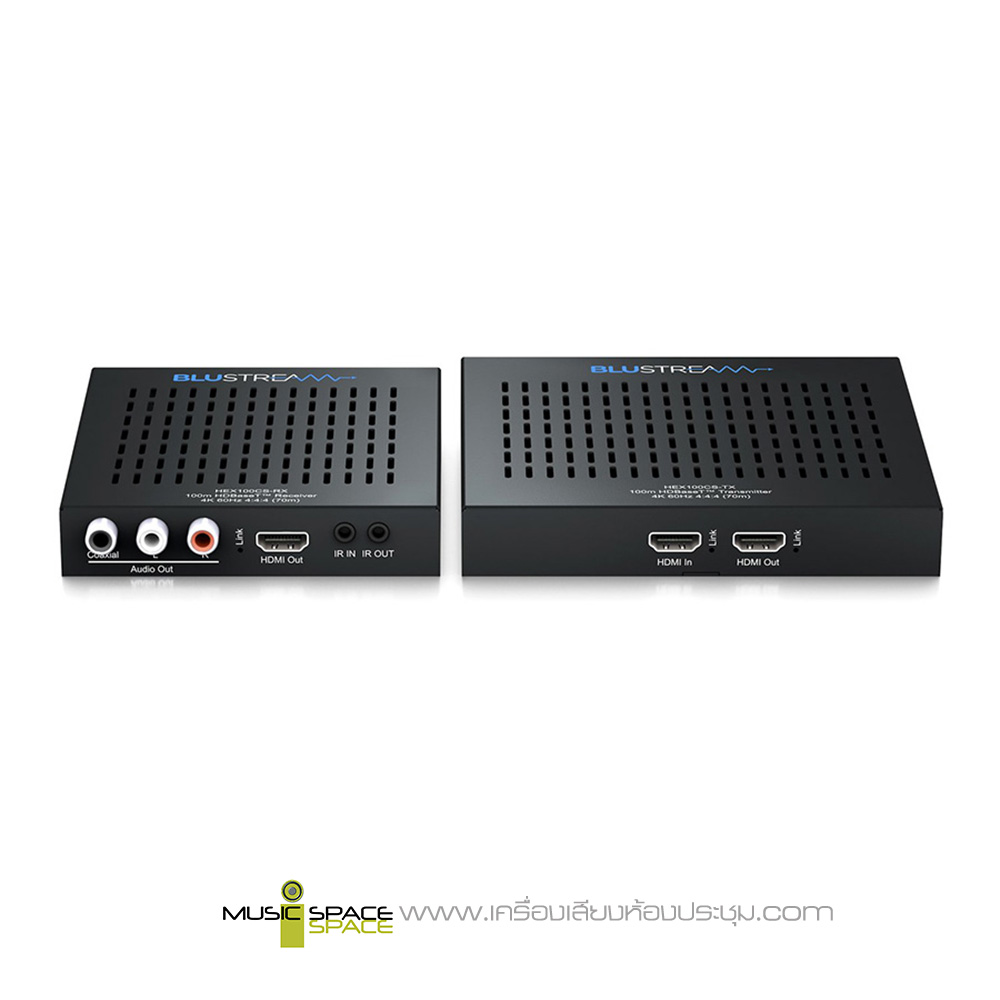

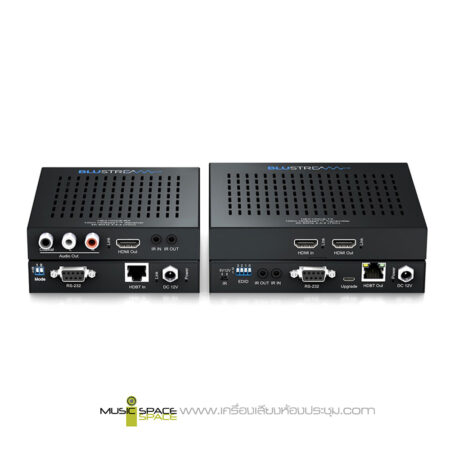

BLUSTREAM HEX100CS-KIT HDBaseT CSC Extender Set

ชุดรับและส่งสัญญาณภาพและเสียง HEX100CS-KIT HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, EDID Management, HDMI Loop Out, Audio Breakout, Bi-directional PoC, HDCP 2.2

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿39,600.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

BLUSTREAM HEX100CS-KIT HDBaseT CSC Extender Set

ชุดรับและส่งสัญญาณภาพและเสียง HEX100CS-KIT HDBaseT™ CSC Extender Set Supporting HDMI 2.0 4K 60Hz 4:4:4 up to 70m (1080p up to 100m), Bi-directional IR & RS-232, EDID Management, HDMI Loop Out, Audio Breakout, Bi-directional PoC, HDCP 2.2

Our HEX100CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 100m (4K to 70m).

The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analogue stereo and digital coax audio breakout.

Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.
  • Supports 4K 60Hz 4:4:4 UHD video up to 70m
  • Extends HDMI 1080p video up to 100m
  • Features 1 x HDMI loop-out on HEX100CS-TX for integrating local displays or cascading to multiple devices
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
  • HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
  • HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
  • Supports bi-directional RS-232 pass-through
  • Supports bi-directional IR pass-through
  • Supplied with Blustream 5V IR receiver and emitter
  • Advanced EDID management
  • HDCP 2.2 compliant

Specifications

HEX100CS-TX:

  • Video Input Connectors: 1 x HDMI Type A, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • EDID DIP Switch: 4-pin

HEX100CS-RX:

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector
  • Video Output Connectors: 1 x HDMI Type A, female
  • RS-232 Serial Port: 1 x DB-9 female
  • IR Input Ports: 1 x 3.5mm stereo jack
  • IR Output Ports: 1 x 3.5mm mono jack
  • Audio Output Connectors: 1 x RCA (S/PDIF) & 2 x Analog RCA (Left / Right)
  • Power Supply: 12V/2A DC, screw type connector
  • Power Consumption: 12.7W
  • Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
  • Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
  • Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
  • Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
  • Ind. Extender Weight: 0.35kg (excluding accessories)
  • Carton / Box Dimensions (W x D x H):mm
  • Shipping Weight: 1.4kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Mounting Kits Included
