เครื่องควบคุมชุดประชุมแบบดิจิตอล TOA TS-D1100 MU

เครื่องควบคุมชุดไมค์ประชุมดิจิตอล TOA TS-D1100-MU เป็นเครื่องควบคุมและจ่ายไฟให้กับชุดไมค์ประชุมรองรับระบบการประชุมทางไกลผ่านช่องต่อ USB สามารถบันทึกการประชุมได้ภายในตัวเครื่อง 1GB และรองรับ Flash Drive สูงสุด 32GB

ราคาสินค้าไม่รวมภาษีมูลค่าเพิ่ม…..

฿54,000.00

Quantity:

สอบถามและสั่งซื้อสินค้า

Share This:

Product Description

TOA TS-D1000-MU Master Control Unit

เครื่องควบคุมชุดไมค์ประชุมดิจิตอล TOA TS-D1100-MU เป็นเครื่องควบคุมและจ่ายไฟให้กับชุดไมค์ประชุมรองรับระบบการประชุมทางไกลผ่านช่องต่อ USB สามารถบันทึกการประชุมได้ภายในตัวเครื่อง 1GB และรองรับ Flash Drive สูงสุด 32GB สามารถเชื่อมต่อชุดประธาน/ผู้ร่วมประชุมได้สูงสุด 32 ชุดหรือ 246 Units

The TS-D1100-MU master control unit for TOA’s digital conference system is designed to be set up more easily with fewer cables, disassembled and put away quickly with the help of simple connections to its chairman and delegate units.

The master control unit is also equipped with a recording function, PC control* and one-touch connection confirmation capability. Up to 246 chairman or delegate units can be connected in a simple daisy chain configuration with CAT5e STP LAN cables.

However, for further expansion, up to 5 TS-D1000-SU Sub Control Units can be added to provide one fully integrated conference system. The TS-D1100-MU is also equipped with FBS (feedback suppression), enabling effective control of acoustic feedback.

It supports up to 8 microphones with speech priority function and also employs an MP3 recorder that makes it possible to record all conference contents to either a USB memory drive or internal memory of up to 32 GB.

The control of the conference mode setting could now be easily done with the browser setting with the use of computer.

Due to the increasing importance of hybrid meetings, including both physical and online engagement of participants, the TS-D1100-MU provides an integrated USB audio interface for smooth integration of online participants using a PC.

Features:

  • Main unit of the system
  • Easy installation and operation
  • Up to 246 conference units controllable
  • Function setting – number of open microphones, auto mic-off function, speech priority selector, feedback suppressor
  • Recording capability with 32 GB USB memory drive and 1GB internal memory
  • Included USB audio interface
  • Mode selection for ID assignment
  • Rack-mountable using MB-TS920 optional bracket

Specifications

Power source 100 – 240 V AC, 50 / 60 Hz (use of the applied AC adapter)
Frequency response 100 Hz – 13 kHz
Distortion < 0.5 %
Power / current consumption 60 W or less
Indicator LED: power, conference mode, number of open microphones, microphone auto off, monitor speaker of conference units volume, connection test, external control, setting lock, recording status, remaining USB memory capacity warning, remaining internal memory capacity warning, LINK/ACT, 10BASE-T/100BASE-TX
S/N ratio ≥ 80 dB(A)
Network I/F 10BASE-T/100BASE-TX (Automatic-Negotiation), RJ45 connector
Network protocol TCP, HTTP, DHCP, ARP (APIPA), UDP (mDNS), UPnP
Other features Recordings can be made to a USB memory device or the internal memory.
Recording format: MP3, 32 kHz, monoaural, 128 kbps
Recording port: USB-AA USB 2.0-compatible FAT32-formatted flash memory device of up to 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the master control unit, depending on the drive’s attributes or recording conditions.

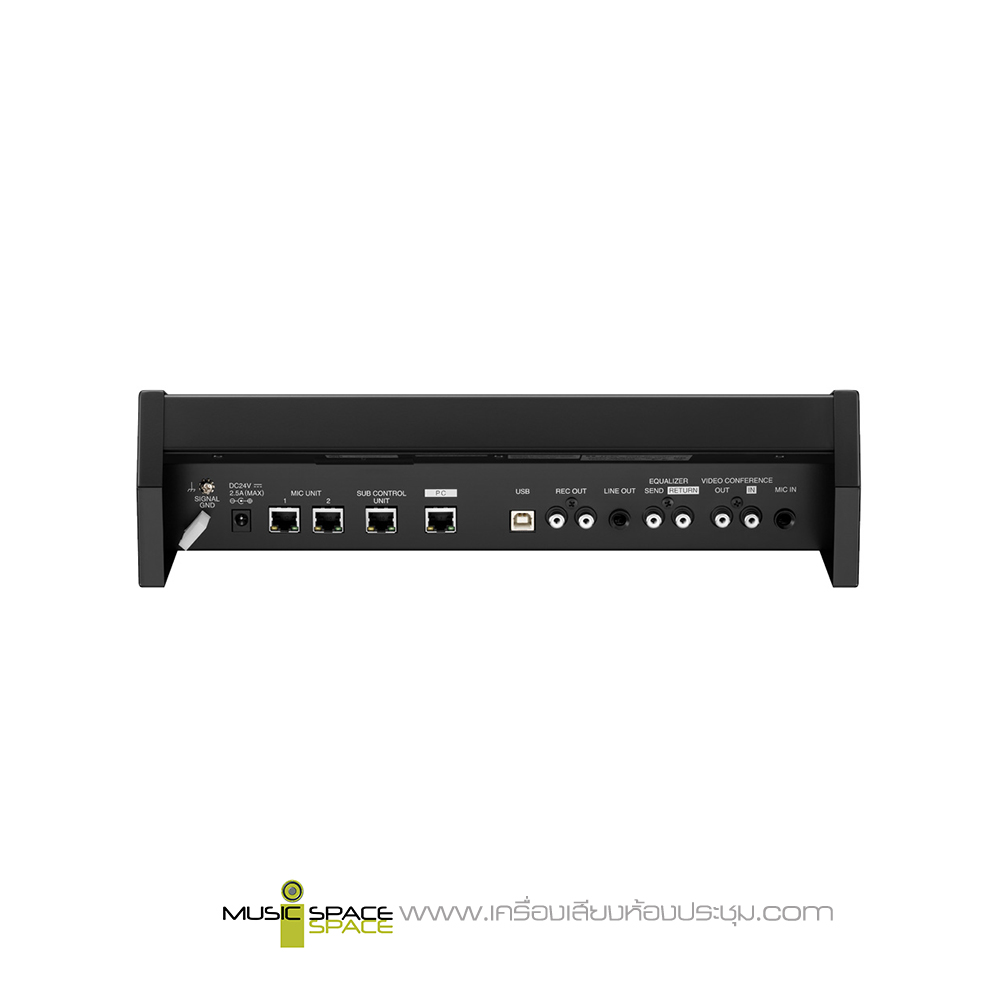

System control unit connection RJ45 connector
Max. 1 m cable distance (between master control unit and sub control unit)
Use the cable supplied with the sub control unit.
System microphone connection RJ45 connector x 2
Max. 32 conference units
Max. 50 m cable distance (between master control unit and terminal chairman/delegate unit at end of daisy chain)
Max. 100 m cable distance with use of an extension unit
Max. 2 open chairman microphones and 8 delegate microphones
Audio input MIC: -54 dBV, 600 Ω, unbalanced, ⊘ 6.3 mm phone jack (2 pins)
EQ INSERT TERMINAL: -10 dBV, 10 kΩ, unbalanced, RCA pin jack
VIDEO CONFERENCE SYSTEM TERMINAL: -10 dBV, 10 kΩ, unbalanced, RCA pin jack
Audio output LINE: -10 dBV, 10 kΩ, unbalanced, ⊘ 6.3 mm phone jack (2 pins)
REC: -10 dBV, 10 kΩ, unbalanced, RCA pin jack, monoaural
HEADPHONES: ⊘ 3.5 mm mini jack, monoaural
EQ INSERT TERMINAL: -10 dBV, 10 kΩ, unbalanced, RCA pin jack
VIDEO CONFERENCE SYSTEM TERMINAL: -10 dBV, 10 kΩ, unbalanced, RCA pin jack

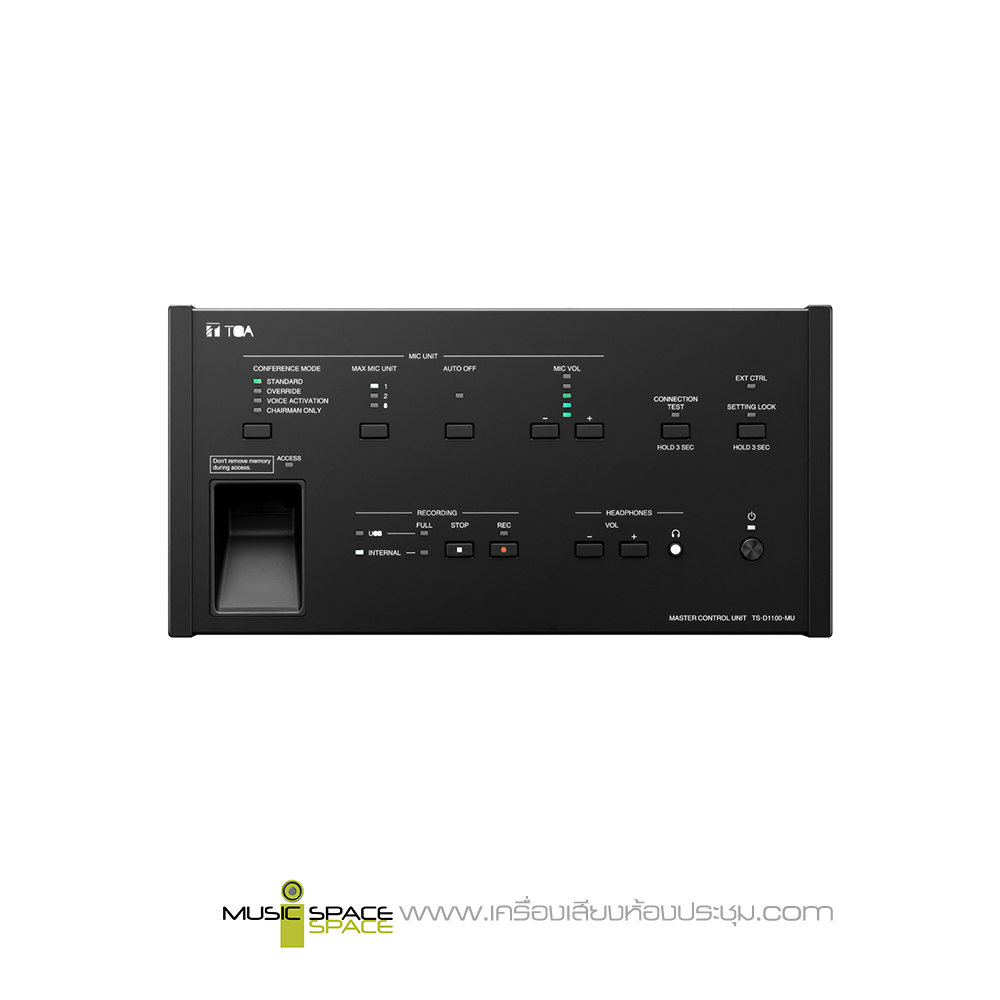

Control keys, buttons and knobs Function keys:

Conference mode selector key: Standard/Override/Voice activation/Chairman only
Number of open microphones selector key: 1/2/8
Microphone auto off setting key: ON/OFF
Monitor speaker of conference units volume control keys: -, +
Setting lock key: ON/OFF, Headphone volume control keys: -, +

Operation keys:

Connection test, Rec start, Rec stop

Operating temperature 0 °C to +40 °C
Operating humidity 90 % RH or less (no condensation)
Dimensions 361 x 100.4 x 184.2 mm (W x H x D)
Finish Panel: Steel plate, black, surface-treated, 30 % gloss, paint
Weight 2.2 kg

Downloads

ดาวน์โหลด Data Sheet TOA TS-D1100 MU
